The DragonStage 9.82x3.23m Switchback Modular Aluminum Event Stage Ramp is designed for temporary stages requiring a continuous access route for wheelchairs, performers, event staff, carts, and wheeled concert equipment. The compact U-shaped layout measures approximately 386⅝ in × 127¼ in (9.82m × 3.23m) and uses standard 4 × 4 ft / 1.22 × 1.22m modular ramp deck sections with 1m / 3.28ft high guardrails along both sides.
The DragonStage 9.82x3.23m Switchback Modular Aluminum Stage Ramp provides a continuous inclined access route between ground level and an elevated temporary event stage.
Instead of extending the complete ramp in one direction, the structure uses two parallel ramp runs connected by an intermediate turning landing. The user travels along one ramp section, turns at the landing, and continues in the opposite direction.

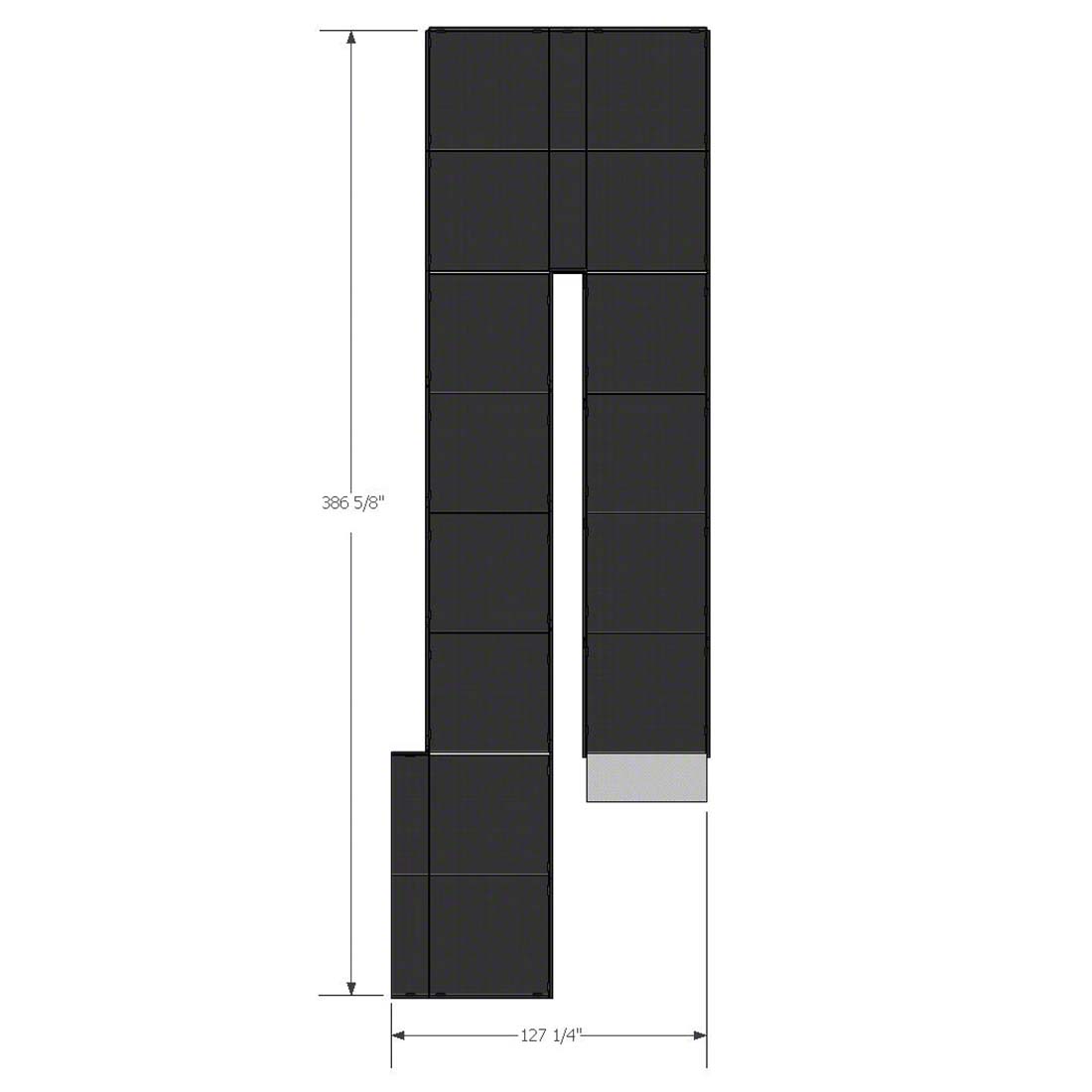

The overall footprint shown in the drawing is approximately:
32 ft 2⅝ in × 10 ft 7¼ in 9.82m × 3.23m
This layout is especially useful when the event site is relatively narrow and does not have enough space for a long straight or wide L-shaped access ramp.
The ramp surface uses standard 4 × 4 ft / 1.22 × 1.22m modular deck sections, allowing the complete structure to be transported, assembled, stored, replaced, and reconfigured in individual modules.
Designed for Wheelchair and Event Equipment Access
This ramp is suitable for projects that need something more practical than stairs alone.
For personnel access, it can provide an inclined route for:
wheelchair users
performers
speakers
event staff
production crews
For equipment movement, it can be used for suitable wheeled items such as:
concert flight cases
lighting equipment cases
audio equipment carts
cable cases
production trolleys
other wheeled event equipment
The required equipment weight and ramp load should be confirmed before the final support configuration is manufactured.
Switchback Layout with Turning Landing
The defining feature of this product is its U-shaped / switchback configuration.
The layout consists of:
first inclined ramp run
intermediate turning landing
second parallel ramp run
lower entry area
upper stage connection area
continuous guardrails
The access route effectively folds back alongside itself.
This gives the ramp a long usable route while keeping the overall site width to approximately 3.23m.
Why a Switchback Ramp Works Well Behind or Beside a Concert Stage
Concert and event sites often have limited space because the surrounding area may already contain:
sound equipment
LED structures
lighting cases
backstage tents
barriers
cable routes
performers and technicians
A switchback ramp can be positioned along the side or rear of the stage without requiring a large open area directly in front of the audience.
This makes it particularly practical as a concert equipment loading ramp or backstage access route.
Standard 4 × 4 ft Modular Ramp Decks
Each standard deck module measures:
4 × 4 ft / approximately 1.22 × 1.22m
The repeated modular size can be used for:
inclined ramp sections
intermediate landings
transition areas
stage connection areas
This common-module approach helps simplify:
packing
transportation
storage
installation
replacement
future expansion
The final number of ramp decks and support components depends on the actual stage height and confirmed configuration.
Dual-Side Guardrails
Guardrails are installed along both sides of the complete access route.
Confirmed guardrail height:
3.28 ft / 1.0m
The guardrails continue along the inclined sections and turning areas to provide a clearly defined route for personnel and equipment.
Compact Footprint for a Long Access Route
The main advantage of this configuration is its relatively narrow footprint.
The complete structure occupies approximately:
9.82m long × 3.23m wide
while using two parallel ramp runs.
Compared with a 90-degree L-shaped ramp, the switchback design requires less lateral site space and is therefore easier to position beside a stage, building, backstage area, or production zone.
Main Features
Overall footprint approx. 9.82 × 3.23m
Imperial footprint approx. 32 ft 2⅝ in × 10 ft 7¼ in
Switchback / U-shaped configuration
Two parallel ramp runs
Intermediate turning landing
Standard 1.22 × 1.22m / 4 × 4 ft modular deck sections
Aluminum support structure
Guardrails on both sides
Guardrail height 1m / 3.28ft
Suitable for wheelchair stage access
Suitable for concert equipment loading
Suitable for wheeled production equipment
Modular and reusable construction
Custom configuration available
Typical Applications
Concert equipment loading ramps
Concert backstage access
Festival stages
Wheelchair stage access
Corporate event stages
School and graduation stages
Church stages
Exhibition platforms
Public event stages
Production equipment routes
Flight case access
Temporary performance platforms
Why Use a Ramp Instead of Stairs for Event Equipment?
Stairs are useful for people but inconvenient for wheeled production equipment.
A continuous ramp allows suitable equipment to remain on wheels while being moved between ground level and the stage.
This can be particularly useful for:
flight cases
lighting equipment
audio accessories
cables
control equipment
smaller production hardware
The actual allowable equipment weight should be confirmed according to the final ramp structure.
Modular Aluminum Structure
The complete ramp is assembled as a temporary modular structure rather than one permanently welded unit.
This gives event companies practical flexibility for:
main use: wheelchair access, equipment loading, or both
equipment type
required load
These details allow DragonStage to finalize the ramp slope, deck quantities, support heights, landing arrangement, and connection configuration.
Important Product Note
The confirmed product configuration includes:
overall size: 386⅝ in × 127¼ in
metric size: approximately 9.82 × 3.23m
standard deck: 4 × 4 ft / 1.22 × 1.22m
switchback / U-shaped layout
two parallel ramp runs
intermediate turning landing
aluminum support structure
guardrails on both sides
guardrail height: 1m / 3.28ft
The final stage height, ramp slope, allowable load, support arrangement, and connection details should be confirmed according to the actual project.
FAQ
What is the overall size of this ramp? The overall footprint is approximately 386⅝ in × 127¼ in, equal to approximately 32 ft 2⅝ in × 10 ft 7¼ in, or about 9.82m × 3.23m.
What type of ramp is this? It is a switchback / U-shaped modular stage ramp with two parallel ramp runs and a turning landing.
What size is each standard ramp panel? Each standard ramp deck is 4 × 4 ft / approximately 1.22 × 1.22m.
How high are the guardrails? The confirmed guardrail height is 1m / approximately 3.28ft.
Are guardrails installed on both sides? Yes. Guardrails are installed along both sides of the ramp route.
Can this ramp be used for wheelchair access? Yes. The continuous inclined layout can be configured for wheelchair stage access according to the final stage height and ramp configuration.
Can concert equipment be moved on this ramp? Yes. It can be configured for suitable wheeled concert equipment such as flight cases, carts, and production equipment.
Why use a switchback design? The two parallel ramp runs allow a relatively long access route to fit into a narrow footprint.
Is this suitable for backstage use? Yes. Its narrow overall width makes it particularly practical beside or behind concert and event stages.
Can the switchback direction be reversed? Yes. The modular configuration can be arranged according to the actual event-site layout.
Can the overall size be customized? Yes. Length, landing arrangement, stage connection height, and deck quantity can be adjusted according to the project.
Can DragonStage supply the stage together with the ramp? Yes. The ramp can be supplied together with a complete Stage Platform system.
