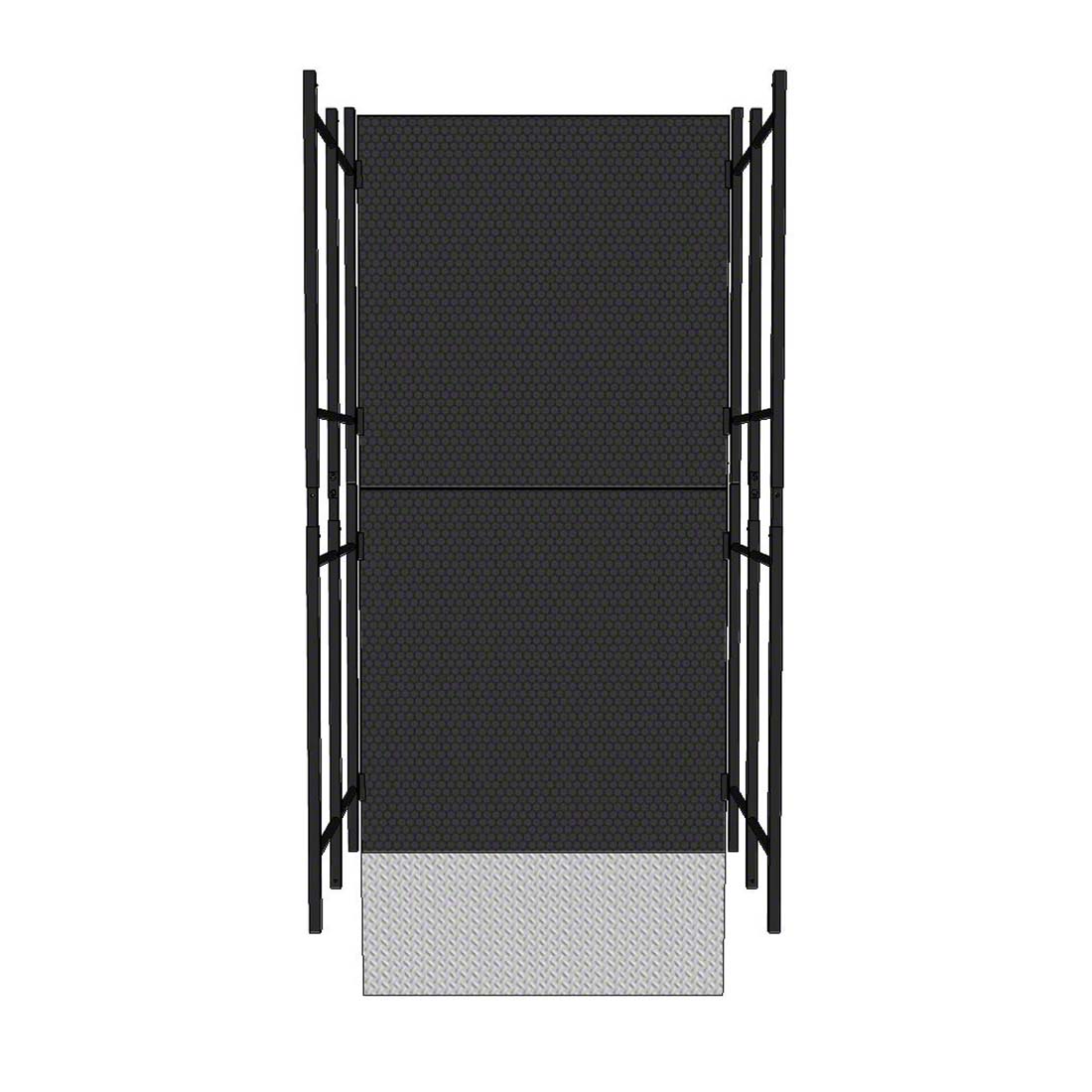

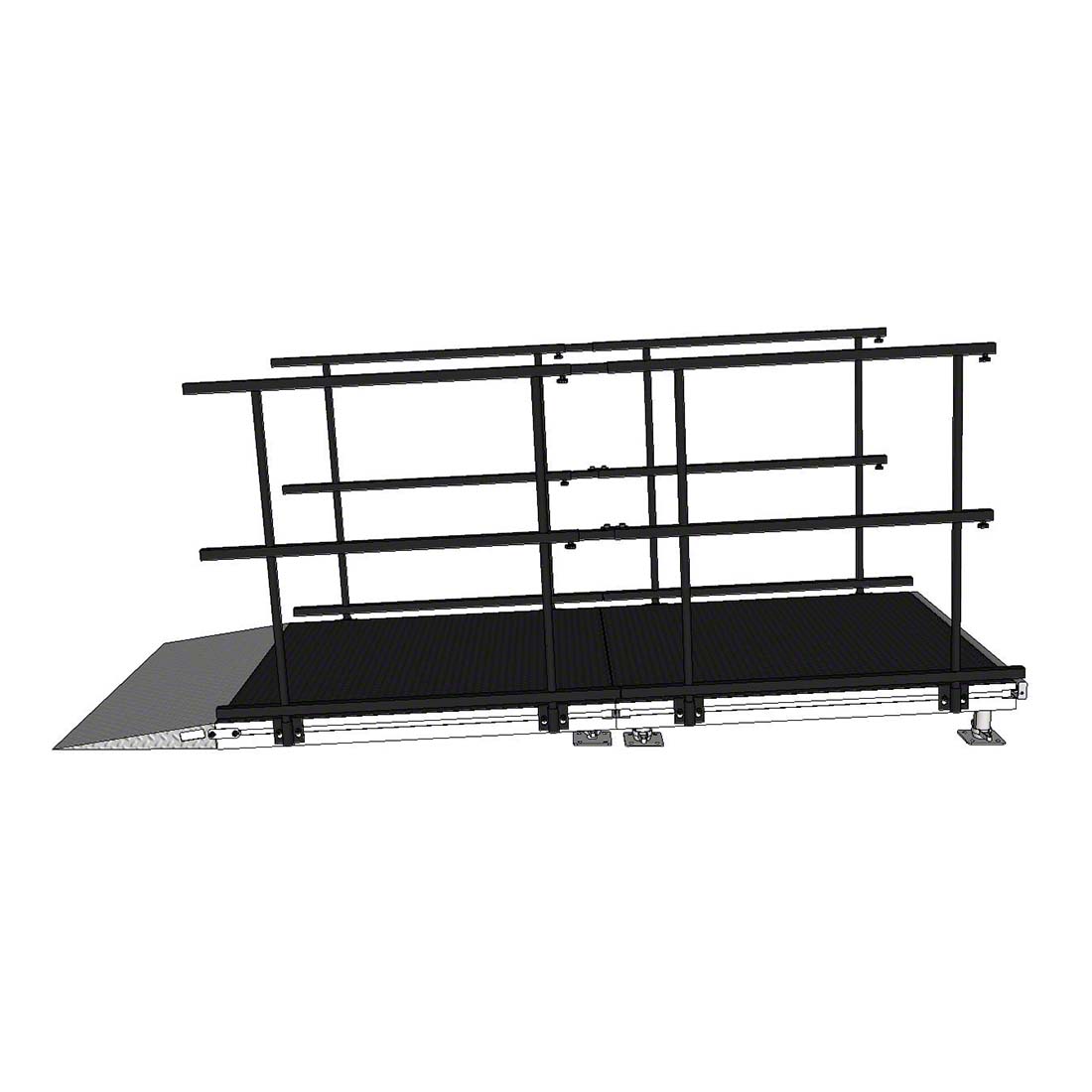

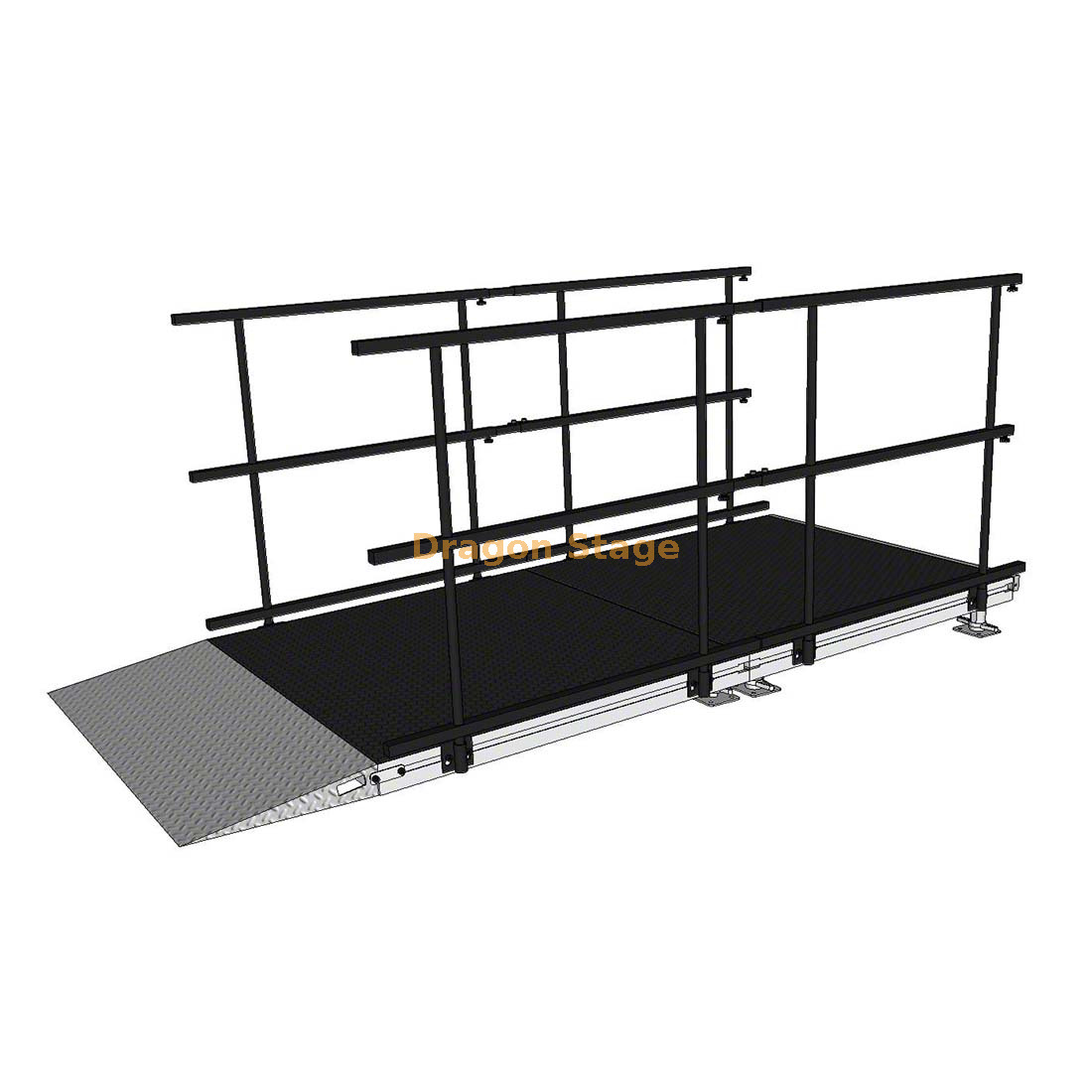

3.0x1.22m Compact Aluminum Stage Transition Ramp with Dual Guardrails for Events

packing weight:300kg

packing volume:3cbm

Product Information

Product Description

The DragonStage 3.0x1.22m Compact Aluminum Stage Transition Ramp is designed for temporary event stages where a short and direct access route is required.

Unlike long loading ramps or large switchback systems, this model occupies only a small amount of floor space and provides a simple straight connection between ground level and the stage.

The overall size is approximately:

3.0m × 1.22m
9.84ft × 4ft

Its compact footprint makes it practical for event sites where space is limited and a long ramp configuration is unnecessary.

For other modular ramp layouts, see Typical Aluminum Ramp.

For compatible stage systems, see Stage Platform.

Compact Transition Between Ground and Stage

The main purpose of this ramp is to create a short transition route.

Typical uses include:

• performer entry

• event staff access

• speaker or presenter access

• small wheeled carts

• light event equipment

• backstage personnel movement

Because the ramp is short and straight, it is especially useful where the stage and surrounding ground area are close together.

Straight-Line Layout

This configuration uses a simple straight route.

There are:

• no turning sections

• no intermediate landings

• no switchback layout

Users or suitable small equipment move directly from one end of the ramp to the other.

This makes the system easy to position beside a stage, backstage entrance, or temporary event platform.

Standard Modular Deck Width

The ramp follows DragonStage's standard modular deck width of approximately:

1.22m / 4ft

Standard deck modules measure:

1.22 × 1.22m / 4 × 4ft

Using the same modular panel logic as other DragonStage stage systems makes the ramp easier to integrate with temporary platforms and stage accessories.

Dual-Side Guardrails

Guardrails are installed along both sides of the ramp.

Confirmed guardrail height:

1.0m / 3.28ft

The rails create a clearly defined access route from ground level to the platform.

Why Choose a Short 3m Ramp?

Not every event requires a 7m, 10m, or 12m access system.

A shorter ramp can be more practical when:

• the stage height is relatively modest

• backstage space is limited

• only a short transition route is needed

• the main users are performers or staff

• large production carts are not the primary use

• fast installation and compact storage are important

The key advantage is compactness.

Main Features

• Approx. 3.0 × 1.22m

• Approx. 9.84 × 4ft

• Straight-line layout

• Compact event footprint

• Standard 1.22 × 1.22m / 4 × 4ft modular deck logic

• Aluminum structure

• Guardrails on both sides

• Guardrail height 1m / 3.28ft

• Suitable for temporary event stages

• Easy to transport and store

• Modular and reusable

• Custom configuration available

Typical Applications

• Event stage access

• Performer entry

• Speaker and presenter access

• Backstage crew routes

• Corporate event stages

• Wedding stages

• School stages

• Church stages

• Exhibition platforms

• Temporary performance stages

• Small equipment access

Small Equipment Access

Although this product is primarily a compact stage-access ramp, it can also be useful for appropriate small wheeled equipment.

Examples may include:

• small carts

• light equipment cases

• cable boxes

• compact production trolleys

The required equipment weight and final load configuration should be confirmed before production.

For additional stage components, see Stage Accessories.

Modular Aluminum Construction

The ramp is designed as a reusable temporary-event component.

Its modular construction makes it easier to:

• transport

• store

• assemble repeatedly

• replace individual parts

• combine with different stage systems

• adjust for future projects

How to Confirm the Final Configuration

Before production, please provide:

• finished stage height

• available ramp length

• stage connection position

• intended users

• whether small carts or equipment will use the ramp

• required load

• indoor or outdoor application

DragonStage can then confirm the support height, slope, deck arrangement, and connection configuration.

Important Product Note

The confirmed product configuration includes:

• overall length: approximately 3.0m / 9.84ft

• overall width: approximately 1.22m / 4ft

• standard deck module: 1.22 × 1.22m / 4 × 4ft

• straight-line layout

• aluminum structure

• guardrails on both sides

• guardrail height: 1m / 3.28ft

The final stage height, ramp slope, allowable load, support arrangement, and connection details should be confirmed according to the actual project.

FAQ

What is the overall size of this ramp?
The ramp is approximately 3.0m long × 1.22m wide, or about 9.84ft × 4ft.

What type of layout does it use?
It uses a simple straight / inline configuration.

What size are the standard deck modules?
The standard modular deck size is approximately 1.22 × 1.22m / 4 × 4ft.

How high are the guardrails?
The guardrail height is approximately 1m / 3.28ft.

Are guardrails installed on both sides?
Yes. Guardrails are installed along both sides of the ramp.

What is this ramp mainly designed for?
It is mainly intended as a compact transition route for performers, staff, presenters, and general event-stage access.

Can small equipment carts use it?
Yes, suitable small carts and light event equipment can be considered, subject to the required load being confirmed.

Why choose a 3m ramp?
It is compact and suitable when only a short transition between ground and stage is required.

Can the ramp be made longer?
Yes. Additional modular sections can be added according to the stage height and site layout.

Can DragonStage supply the stage together with this ramp?
Yes. The ramp can be supplied with a complete Stage Platform system.

Why Choose DragonStage

DragonStage supplies modular stages together with ramps, stairs, guardrails, and other event-access components.

For compact ramps, the main objective is usually to provide a practical stage transition without occupying unnecessary floor space. The final configuration can therefore be matched to the actual stage height and available site area.

Soft CTA

For quotation, please provide:

• stage height

• available ramp space

• intended users

• whether small carts will use the ramp

• required load

• indoor or outdoor use

DragonStage can then confirm the suitable compact-ramp configuration.
