truss system
packing weight: 2200kg
packing volume: 19cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 10.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 2pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 4pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.20 m | 50×3.0 | CS289×289 | 2pcs |
| 10.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 3pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 1pcs |
| 6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.20 m | 50×3.0 | CS289×289 | 4pcs |
| 6.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL30,289*50 | 8pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 8pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 8pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 16pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 208.96 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 4.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 2pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 2pcs |
| 7.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
stage
packing weight: 1800kg
packing volume: 11cbm
| Width(m) | each stage size: 1.22*2.44m | stage Unit |
| 11.00 m |
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 27 pcs |
| 1.22m stage brace | 36 pcs |
| 2.44m stage brace | 30 pcs |
| stand with extendable tube | 40 pcs |
| Stage adjustable base | 40 pcs |
| Stage Stair | wooden topping | total | 7 | steps | 2 pcs |

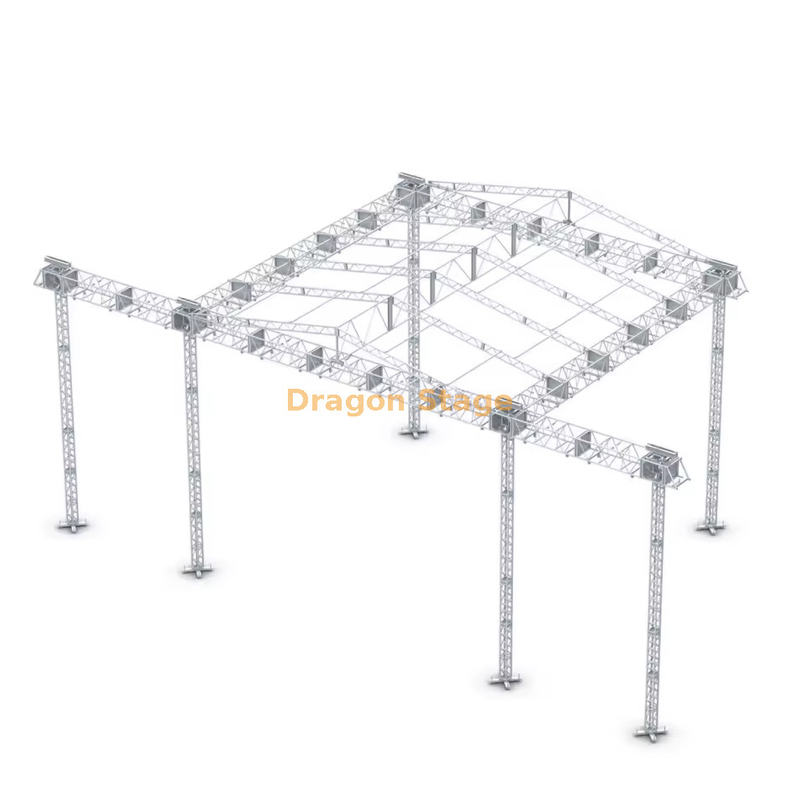

Heavy-Duty 12x10x8m Aluminum Custom Concert Stage Truss with 4m Audio Wings
1. Introduction
In the demanding world of professional touring and large-scale outdoor festivals, the stage structure must be more than just a frame—it must be a high-capacity production hub. The 12x10x8m Aluminum Custom Concert Stage Truss from DragonStage is engineered for elite performance, featuring a spacious 12-meter main span and a commanding 8-meter height. The standout feature of this system is the dual 4-meter side wings, specifically designed to fly heavy line array speaker systems and LED side-screens. For production managers, this all-in-one solution eliminates the need for separate audio towers, creating a clean, professional "wide-format" stage aesthetic that meets the highest technical riders.
2. Challenges & Solutions
One of the primary challenges for outdoor concert organizers is the structural complexity of hanging heavy audio and lighting from the same rig. Off-center loading on side wings can cause torque and stability issues if not properly engineered. DragonStage solves this by utilizing reinforced sleeve blocks and a heavy-duty 4-tower or 6-tower ground support system that balances the weight of the 4m wings against the main 12x10m grid. Additionally, outdoor events are at the mercy of the elements; water pooling on a roof can lead to catastrophic failure. Our solution features a precision-pitched roof with high-tension, fire-retardant PVC that ensures immediate water runoff and maximum wind resistance, keeping your performers and million-dollar equipment safe.
3. Key Features & Benefits
The 12x10x8m system is constructed from high-tensile 6082-T6 aluminum alloy, known for its superior strength and excellent corrosion resistance in humid or coastal environments (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html). This ensures that even at an 8-meter height, the towers maintain vertical rigidity under heavy loads.
The dual 4m wings are a specialized addition, providing dedicated rigging points for line arrays that clear the performance area, improving acoustic coverage and audience sightlines. According to global standards for temporary event structures, the use of aluminum trussing with integrated wings requires specialized ballast calculations to ensure the structure remains anchored during wind gusts (Source:https://en.wikipedia.org/wiki/Truss).
To complete the professional setup, this rig is designed for seamless integration with our modular aluminum stage platforms. These decks feature 18mm anti-slip surfaces and adjustable height legs, providing a stable foundation that perfectly aligns with the overhead trussing (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html). This synergy allows for a "total-site" solution where lighting, audio, and staging work in structural harmony.
4. FAQ Section
Q: What is the maximum load capacity for each 4m wing?A: Each wing is engineered to support approximately 500kg to 800kg, depending on the specific truss series and ballast used. Please consult our engineers for your specific audio weight.
Q: Can this system be assembled without a crane?A: Yes. By using our specialized tower lift system and manual or electric chain hoists, the entire 12x10m grid can be assembled at ground level and raised safely.
Q: Is the PVC canopy included?A: Yes, the system includes a professional-grade, waterproof, and UV-resistant PVC roof cover designed for the 12x10m dimensions.
Q: Does it come with a warranty?A: DragonStage provides a comprehensive manufacturer's warranty and Trade Assurance to ensure your investment is protected from defects and shipping damage.
5. Strong Call to Action (CTA)
Take your concert production to the next level with a structure built for scale and safety. Contact DragonStage’s engineering team today for a custom quote on the 12x10x8m truss system with 4m wings. Download our technical specifications and start planning your most ambitious outdoor event today.
