Trade Assurance Outdoor Concert Aluminum Frame Stage Truss Structure for Show Event 20x16x9m

5 0 Reviews

Trade Assurance Outdoor Concert Aluminum Frame Stage Truss Structure for Show Event The Trade Assurance Outdoor Concert Aluminum Frame Stage Truss Structure for Show Event is an all-aluminum structure that is suitable for any outdoor event. It can be set up in minutes, and it is easy to transport. The Trade Assurance Outdoor Concert Aluminum Frame Stage Truss Structure for Show Event has a high weight capacity and can be easily assembled with two people. The Trade Assurance Outdoor Concert Aluminum Frame Stage Truss Structure for Show Event is perfect for outdoor concerts, shows, and events.

Price: ￥ 158164


Availability:



Inquire

Model:
CXM-04
Brand:
Dragon Stage

Product Description

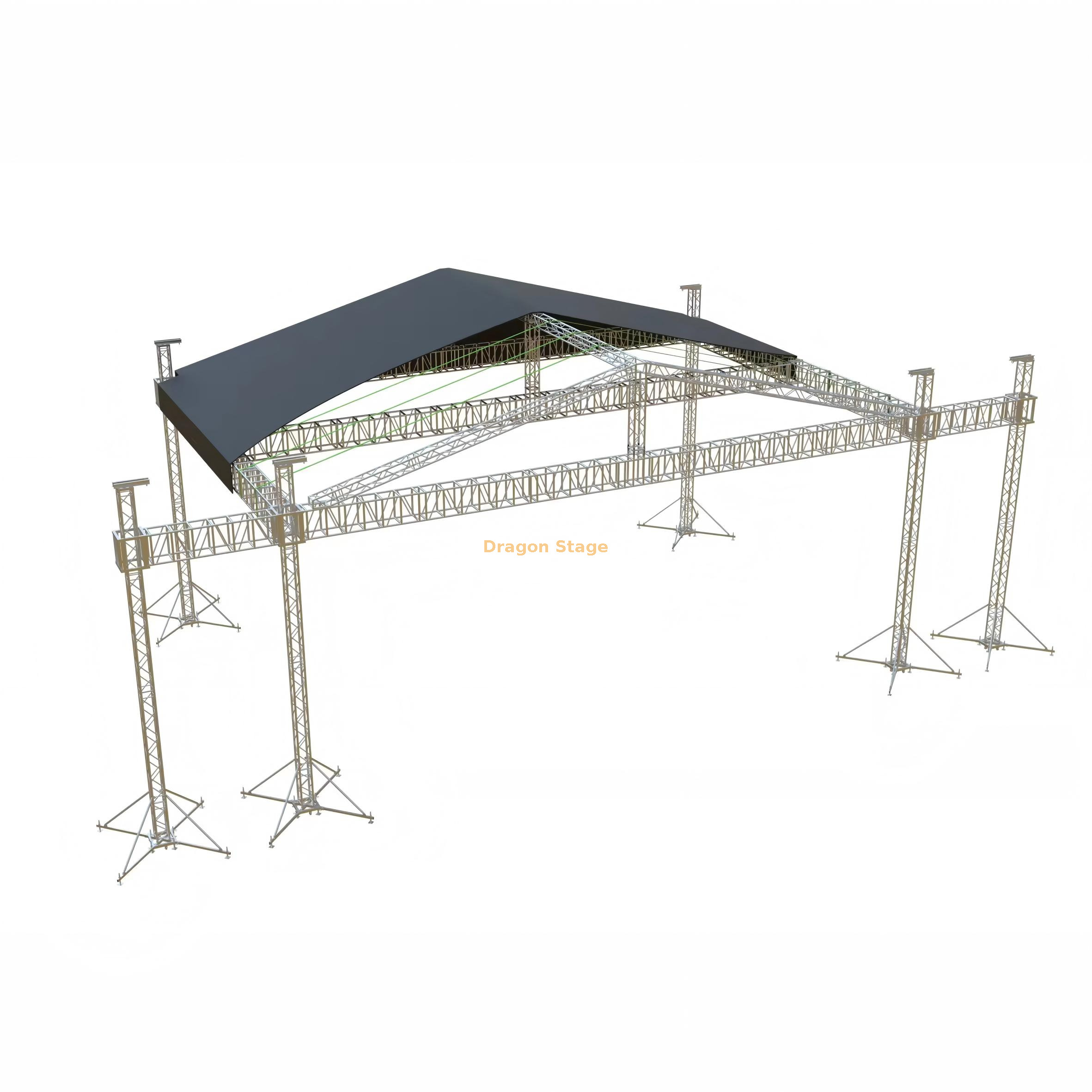

Trade Assurance Outdoor Concert Aluminum Frame Stage Truss Structure for Show Event 20x16x9m

packing weight: 3800kg

packing volume: 35cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
20.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS500×600	18pcs
		2.00 m	50×3.0	CS500×600	3pcs
		1.00 m	50×3.0	CS500×600	0pcs
16.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS500×600	10pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	2pcs
8.00 m Pillar	4 sets	3.00 m	50x3.0	CS350×350	8pcs
		2.00 m	50x3.0	CS350×350	4pcs
		1.00 m	50x3.0	CS350×350	0pcs
Frame Tower	Spigot Sleeve Block M				4pcs
	Steel Base M				4pcs
	Top Section M				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	2.00 m	50×3.0	CS289×289	3pcs
16.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	5pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	1pcs
10.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	12pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.20 m	50×3.0	CS289×289	4pcs
10.20 m Ladder truss	14 sets	3.00 m	50×3.0	CL30,289*50	42pcs
		2.00 m	50×3.0	CL30,289*50	0pcs
		1.20 m	50×3.0	CL30,289*50	14pcs
Roof Components		roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
		roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
		Connect plate with clamp			3pcs
		Single clamp			28pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		480.16	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS500×600	0pcs
		2.00 m	50×3.0	CS500×600	2pcs
		1.00 m	50×3.0	CS500×600	0pcs
8.00 m Wings Pillar	2 sets	3.00 m	FALSE	CS350×350	4pcs
		2.00 m	FALSE	CS350×350	2pcs
		1.00 m	FALSE	CS350×350	0pcs
Wings Tower	Spigot Sleeve Block M				2pcs
	Steel Base M				2pcs
	Top Section M				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

Trade Assurance 20x16x9m Outdoor Concert Aluminum Frame Stage Truss Structure

1. Introduction

For stadium-level performances and major international festivals, the scale of the stage defines the impact of the show. The 20x16x9m Outdoor Concert Aluminum Frame Stage Truss from DragonStage is a titan of event engineering, providing 320 square meters of covered performance space. This structure is designed to house massive lighting rigs, expansive LED walls, and complex audio arrays required for world-class touring acts. As event organizers face increasing pressure to deliver "larger-than-life" experiences while maintaining strict safety protocols, this massive aluminum frame serves as a reliable, high-capacity foundation that bridges the gap between ambitious creative vision and structural reality.

2. Challenges & Solutions

The primary challenge with a 20-meter span is managing "deflection"—the natural sagging of metal under its own weight and the weight of the equipment. Standard trussing often fails at this width, which is why DragonStage utilizes reinforced, heavy-duty aluminum profiles that maintain a rigid horizontal line even under maximum load. Additionally, large-scale outdoor events are highly susceptible to wind-lift; a 9-meter high roof acts as a significant wind sail. Our solution involves an integrated ballast system and a multi-tower ground support design that anchors the structure firmly. By utilizing trade assurance protocols, we also solve the logistical anxiety of international B2B buyers, ensuring that the precision-engineered components arrive on-site exactly as specified.

3. Key Features & Benefits

Constructed from aerospace-grade 6082-T6 aluminum alloy, this 20x16x9m system offers the highest level of structural integrity and corrosion resistance available in the market (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html). This ensures that the frame can withstand the rigors of repeated assembly in varied climates, from humid coastal regions to dry inland plains.

The system is built around a heavy-duty bolt-connection architecture, providing a more rigid and permanent-feeling join than smaller spigot systems—essential for spans of this magnitude. To ensure the safety of performers and audience members alike, the structure adheres to the strictest international rigging standards for temporary outdoor structures (Source:https://www.prolight-sound.com).

To support the physical performance, the trussing is designed to be perfectly compatible with our modular stage platforms. These platforms feature high-load capacities and adjustable heights, allowing for the creation of tiered stages or flat surfaces on challenging terrain (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html). This synergy allows production managers to fly lighting and sound while simultaneously building the floor, optimizing the critical path of the event schedule.

4. FAQ Section

Q: What is the benefit of the Trade Assurance on this product?A: Trade Assurance protects your investment by ensuring that the product quality and shipping timelines meet the agreed-upon contract standards, providing peace of mind for high-value international transactions.

Q: Can the 20m span support center-hung LED screens?A: Yes, the heavy-duty 400x600mm or larger truss profiles are engineered to support centralized point loads, though a specific rigging plan should be approved by our engineers.

Q: Is a crane required for assembly?A: While the components are manageable by hand, we recommend using a small crane or specialized lifting towers for the 9m pillars and the 20m cross-sections to ensure safety and efficiency.

Q: Does the system include the roof canopy?A: Yes, a professional-grade, fire-retardant, and waterproof PVC canopy is included, designed specifically for the 20x16m dimensions.

5. Strong Call to Action (CTA)

Build your next landmark event on a foundation of strength and security. Contact DragonStage’s engineering team today to customize your 20x16x9m aluminum truss structure. Download our technical load-bearing reports and start planning your most ambitious production yet.
