packing volume: 27cbm
packing weight: 2850kg
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 16.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS389×389 | 12pcs |
| 2.00 m | 50×3.0 | CS389×389 | 6pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 12.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 11.00 m Pillar | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 18pcs |
| 2.00 m | 50×3.0 | CS289×289 | 6pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 6pcs |
| Steel Base S | 6pcs |
| Top Section S | 6pcs |
| T2,Electric Motor,Chinese brand, Load:1000kg, Chain length:25m, lifting speed:3.2m/min, 380V-3phrase, output:750W,Ins.class:F,Body | 6pcs |
| T3,Electric hoist controller,1pcs can control 8pcs motor. | 1pcs |
| Spigot Hinge Section,Height 1m | 6pcs |
| Fibre sling,BA04,2 tons 3m | 6pcs |
| Long outrigger | 24pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 1.60 m | 50×3.0 | CS289×289 | 3pcs |
| 12.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 8.20 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 12pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.20 m | 50×3.0 | CS289×289 | 6pcs |
| 8.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL30,289*50 | 16pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 2.20 m | 50×3.0 | CL30,289*50 | 8pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 1pcs |
| Connect plate with clamp | 3pcs |
| Single clamp | 16pcs |
| Double clamp | 12pcs |
| roof canopy material:pvc, Blue Colour or customized. | 312.16 | 1pcs |

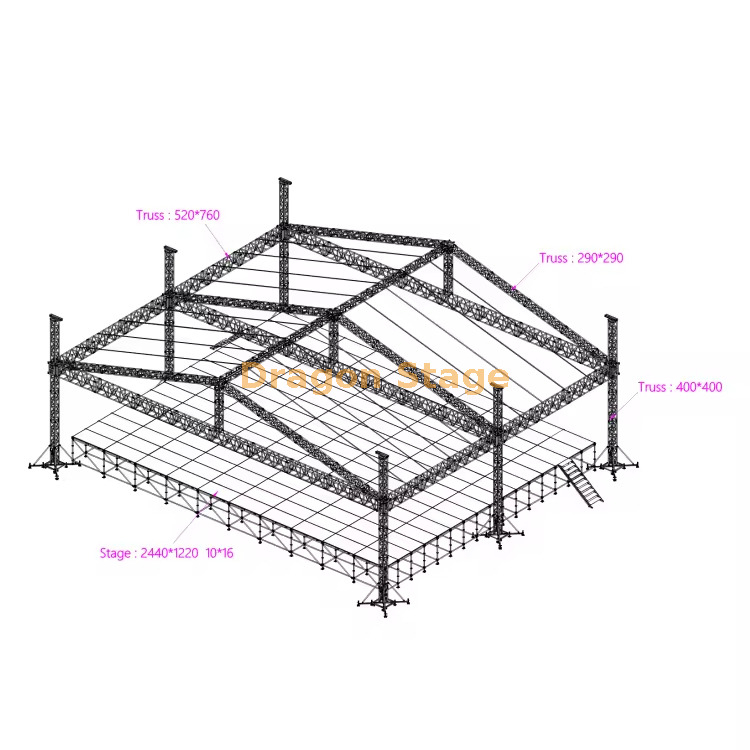

Professional 16x12x12m Sound and Lighting Aluminum Stage Roof Truss System
1. Introduction
For stadium-level performances and massive outdoor festivals, height and span are the two most critical factors in stage design. The DragonStage 16x12x12m Sound Aluminum Portable Stage Lighting Truss is a monumental structural solution designed for high-capacity events. Providing a sprawling 192-square-meter covered area and a commanding 12-meter vertical clearance, this system is built to house the world’s most demanding lighting rigs and line array sound systems. This system is the benchmark for production companies that require a "big stage" presence with the modularity of aluminum engineering.
2. Industry Challenges & Professional Solutions
The primary engineering challenge for a structure of this magnitude is the dynamic load management of a 16-meter span at a 12-meter height. At these dimensions, wind shear becomes a major factor, and the weight of the truss itself requires precise calculation to prevent structural fatigue.
DragonStage addresses these challenges by utilizing heavy-duty 6082-T6 aluminum alloy with reinforced wall thicknesses (up to 4mm or 5mm in critical sections). The 16m span is supported by a specialized tower system that utilizes heavy-duty sleeve blocks and steel hinges to ensure the vertical load is transferred directly to the ground. To manage environmental risks, the system is designed to interface with high-capacity water ballast or concrete weights, ensuring the 12-meter towers remain plumb even in challenging wind conditions. The ground support design allows the entire 16x12m roof to be pre-rigged and safely elevated using high-torque electric chain hoists (Source:https://www.dragontruss.com/Aluminum-Truss-pl3962133.html).
3. Key Features & Operational Benefits
The 16x12x12m lighting truss is designed as a long-term infrastructure investment for elite production houses.
16-Meter Clear Span Capacity
The main beams of this system are engineered to provide a 16-meter clear span without the need for center supports. This allows for unobstructed views of the stage and provides lighting designers with a massive canvas for overhead effects. By using reinforced bolt or spigot trussing, the system maintains a high safe-working load (SWL), capable of supporting several tons of lighting, LED screens, and PA systems (Source:https://www.dragontruss.com/Stage-Truss-pl3452133.html).
12-Meter Vertical Sound Projection
Height is essential for long-throw audio. The 12-meter towers allow production teams to hang line array clusters at a height that ensures consistent sound pressure levels even for audiences hundreds of feet away.1 The integrated tower lifting system is compatible with both manual and electric hoists, giving crews the flexibility to rig the entire show at waist height before hoisting it to its 12-meter trim height (Source:https://www.dragontruss.com/Speaker-Truss-pl3352133.html).
Certified TUV Engineering
Safety on this scale is non-negotiable. Every weld, pin, and coupler in the 16x12x12m system adheres to TUV and SGS international safety standards. Each purchase comes with a comprehensive structural report, which is vital for obtaining the necessary engineering sign-offs for stadium and city-center events. The high-tension PVC canopy is also fire-retardant and UV-resistant, ensuring all-weather performance (Source:https://www.dragontruss.com/TUV-Report-dc249965.html).
4. Practical FAQ for Stage Professionals
| Question | Answer |
| Q: What is the total load capacity for the 16m span? | Capacity varies by truss profile (e.g., 400x600mm), but this system is typically rated for distributed loads exceeding 3000kg. |
| Q: How many shipping containers are required? | A full 16x12x12m system typically requires one 40ft High-Cube container for safe transport of all components. |
| Q: Can the 12m height be adjusted for smaller venues? | Yes, the modular pillar sections allow you to set the height at 8m, 10m, or the full 12m depending on the event. |
| Q: How does the roof handle heavy rain? | We use a high-tension A-frame or curved roof design with internal tensioners to ensure water drains immediately. |
5. Strong Call to Action (CTA)
Scale your production to stadium levels with a structure engineered for absolute safety and massive impact. Trust DragonStage for the stability your largest events demand.
Would you like me to provide a custom load-bearing analysis for your specific gear list or a freight quote for the 16x12x12m system to your location?
