packing weight: 3400kg
packing volume: 32cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 18.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS500×600 | 18pcs |
| 2.00 m | 50×3.0 | CS500×600 | 0pcs |
| 1.00 m | 50×3.0 | CS500×600 | 0pcs |
| 12.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 8pcs |
| 2.00 m | 50×3.0 | CS500×600 | 0pcs |
| 1.00 m | 50×3.0 | CS500×600 | 0pcs |
| 9.00 m Pillar | 6 sets | 3.00 m | 50x3.0 | CS350×350 | 18pcs |
| 2.00 m | 50x3.0 | CS350×350 | 0pcs |
| 1.00 m | 50x3.0 | CS350×350 | 0pcs |
| beam cube | Spigot cube 500x600 | 0pcs |
| Frame Tower | Spigot Sleeve Block M | 6pcs |
| Steel Base M | 6pcs |
| Top Section M | 6pcs |
| Manual hoist,BA05 2Tons | 6pcs |
| Spigot Hinge Section,Height 1m | 6pcs |
| Fibre sling,BA04,2 tons 3m | 6pcs |
| Long outrigger | 24pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 1.80 m | 50×3.0 | CS289×289 | 3pcs |
| 12.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 9.20 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 12pcs |
| 2.00 m | 50×3.0 | CS289×289 | 6pcs |
| 1.20 m | 50×3.0 | CS289×289 | 6pcs |
| 9.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL30,289*50 | 16pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 8pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 8pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 1pcs |
| Connect plate with clamp | 3pcs |
| Single clamp | 16pcs |
| Double clamp | 12pcs |
| roof canopy material:pvc, Blue Colour or customized. | 350.16 | 1pcs |
packing weight: 3850kg
packing volume: 26cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 63 pcs |
| 1.22m stage brace | 72 pcs |
| 2.44m stage brace | 70 pcs |
| stand with extendable tube | 80 pcs |
| Stage adjustable base | 80 pcs |
| Stage Stair | wooden topping | total | 8 | steps | adjustable to the stage height | 2 pcs |

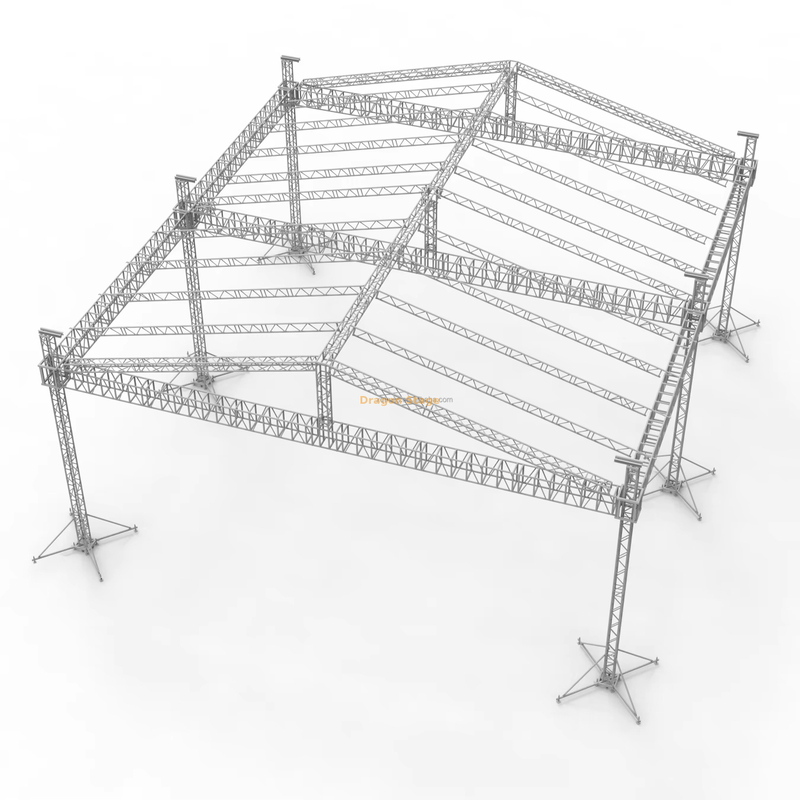

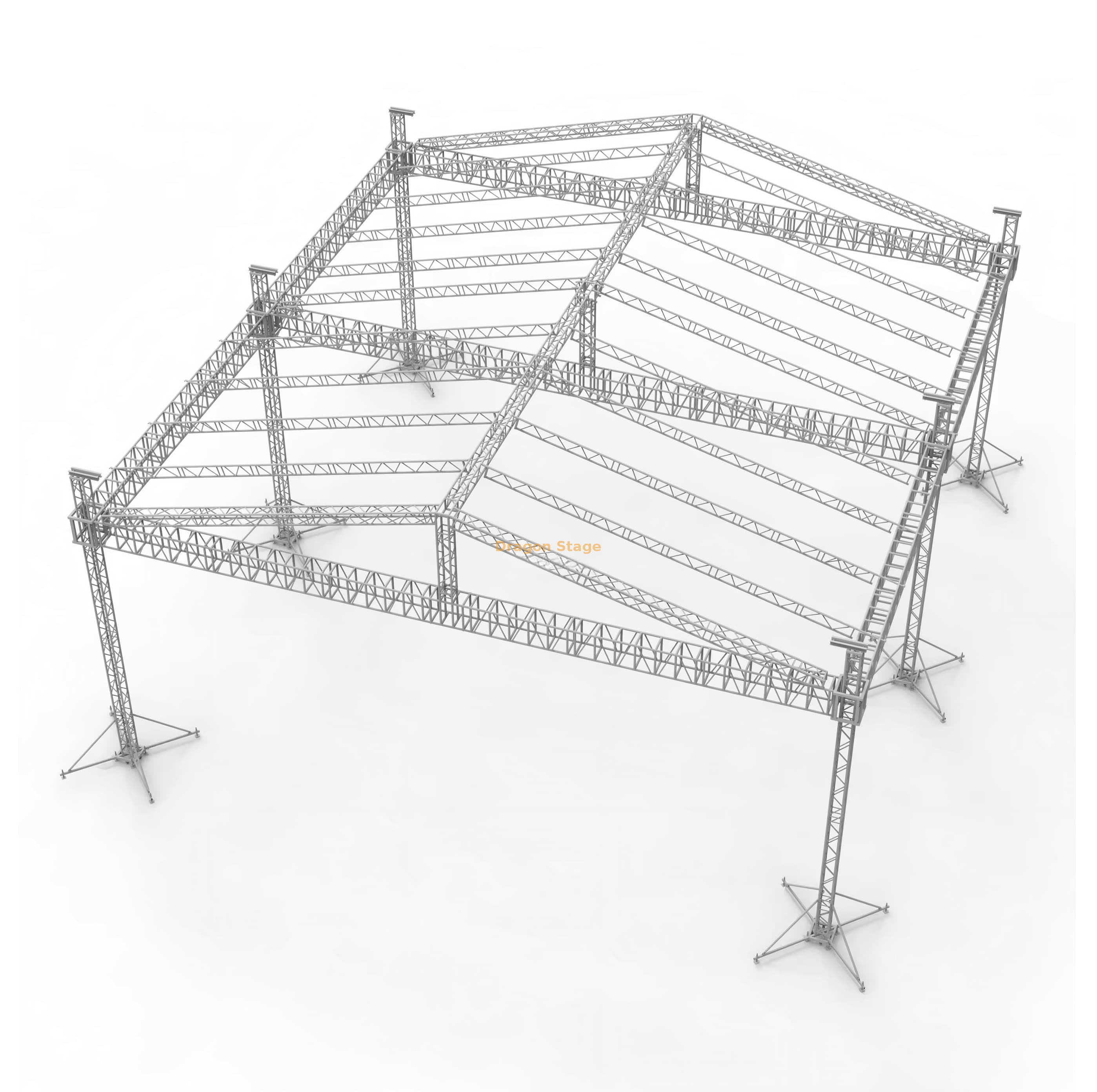

Aluminum Large Concert Event Music Audio Square Church Lighting Truss: 18m x 12m x 10m
Introduction: The Ultimate Large-Format Outdoor Rigging Solution
The Dragon Stage Aluminum Large Concert Event Truss is engineered to meet the extreme demands of massive outdoor productions, including major concerts, large audio festivals, and high-attendance church events. This system boasts an impressive footprint of 18m x 12m and a substantial 10m height, supported by a robust 6-Pillar Ground Support structure. Its utilization of the heavy-duty CS500x600 main truss ensures maximum loading capacity for extensive lighting, video, and audio rigging across the wide 18-meter span.
Key Features & Component Breakdown
I. Extreme Load-Bearing Truss Structure
The structure is a masterclass in heavy-duty engineering, designed for safety and maximum payload:
Structure Dimensions: 18m Long x 12m Wide x 10m High (approx. 59ft x 39.4ft x 32.8ft).
Main Beam Truss (CS500x600): To safely bridge the immense 18-meter span and handle the heavy demands of concert production (lighting grids, line array fly frames), the main roof sections employ the largest profile truss in the series, the CS500x600.
Pillar Truss (CS350x350): Six vertical columns utilize the high-capacity CS350x350 truss, providing necessary stability and compression strength for the 10-meter lift height.
Canopy and Cover: A large 350.16 sq m PVC canopy is included to fully cover and protect the stage and rigging from the elements.
II. Advanced Ground Support System
The tower components are upgraded to handle the higher loads and greater lift height:
Upgraded Towers: Features 6 sets of tower components, including Sleeve Block M, Steel Base M, and Top Section M. The 'M' designation signifies components rated for this massive scale and height.
Lifting Gear: 6 sets of 2-Ton Manual Hoists (BA05) provide the mechanical advantage necessary for erecting the large roof grid. For heavy usage, upgrading to Electric Chain Hoists is highly recommended for safety and efficiency.
Stabilization: 24 Long Outriggers are supplied to significantly increase the footprint and lateral stability of the 10m high structure, critical for minimizing sway and managing wind forces.
III. Integrated Adjustable Concert Stage
The accompanying stage platform is sized for a grand performance area:
Stage Footprint: A large 17.08m x 10.98m (approx. 56ft x 36ft) performance area.
Stage Height: The stage is highly visible with an adjustable height range from 1.2m to 2m (approx. 4ft to 6.5ft).
Decking: Uses 63 pieces of durable 4x8ft wooden stage topping supported by 80 adjustable bases and extendable tubes.
Technical Specifications Overview
| Component | Dimension/Specification | Details |
| Overall Size | 18m x 12m x 10m (L x W x H) | Approx. 59ft x 39.4ft x 32.8ft |
| Main Beam Truss | CS500x600 Spigot Truss | Heavy-duty profile for 18m span |
| Pillar Truss | CS350x350 Spigot Truss | High compression strength for 10m height |
| Roof Coverage | 350.16 sq m | PVC Canopy material included |
| Stage Size | 17.08m x 10.98m | Wooden deck, 4x8ft sections |
| Stage Height Range | Adjustable 1.2m to 2m | Designed for large audience visibility |
| Stabilization | 24 Long Outriggers | Essential for height and footprint |
| Truss Logistics | 3400 kg / 32 CBM | Requires professional handling |
