packing weight: 1700kg
packing volume: 17cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 9.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 8.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 4pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.20 m | 50×3.0 | CS289×289 | 2pcs |
| 9.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 3pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.20 m | 50×3.0 | CS289×289 | 4pcs |
| 6.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL30,289*50 | 8pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 8pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 8pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 16pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 194.16 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| .00 m Wings Beam | sets | 3.00 m | 50×3.0 | CS389×389 | 0pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 8.00 m Wings Pillar | sets | 3.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Wings Tower | Spigot Sleeve Block S | 0pcs |
| Steel Base S | 0pcs |
| Top Section S | 0pcs |
| Manual hoist,BA05 2Tons | 0pcs |
| Spigot Hinge Section,Height 1m | 0pcs |
| Fibre sling,BA04,2 tons 3m | 0pcs |
| Long outrigger | 0pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
packing weight: 1900kg
packing volume: 12cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 28 pcs |
| 1.22m stage brace | 35 pcs |
| 2.44m stage brace | 32 pcs |
| stand with extendable tube | 40 pcs |
| Stage adjustable base | 40 pcs |
| Stage Stair | wooden topping | total | 8 | steps | adjustable to the stage height | 2 pcs |

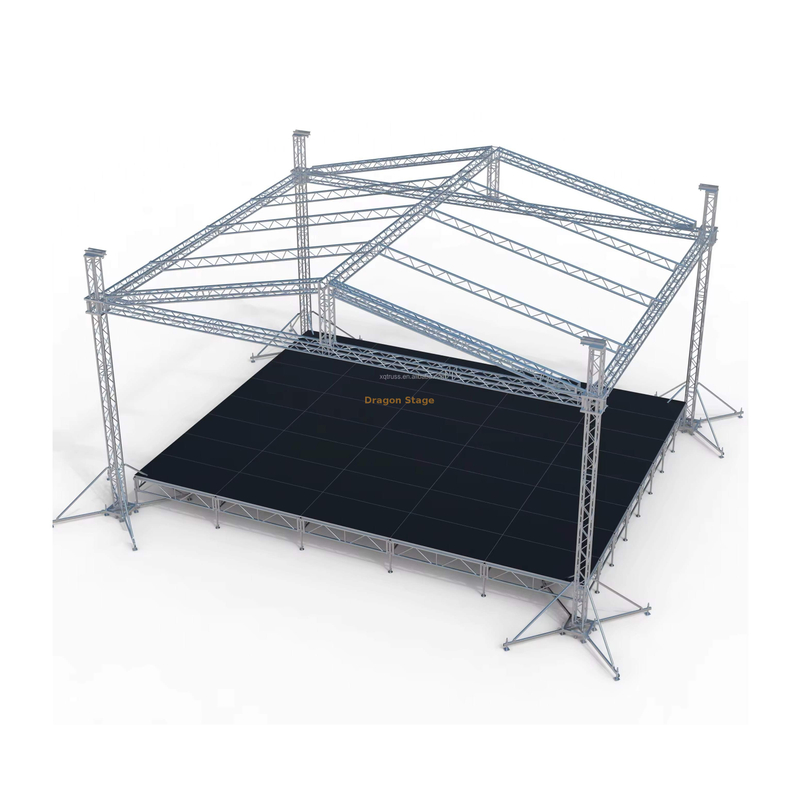

Custom 12x10x9m Aluminum Roof Truss System for Large-Scale Concerts
1. Introduction
Executing high-impact concerts and large-scale outdoor festivals requires a structural foundation that balances immense scale with absolute safety. The DragonStage 12x10x9m Custom Aluminum Music Audio Lighting Truss System is engineered to meet these demands, providing a massive 120-square-meter covered area with a commanding 9-meter trim height. For event organizers and technical contractors, this system represents the pinnacle of professional rigging, offering the clearance needed for complex lighting designs and optimal acoustic projection. By focusing on engineering reliability, DragonStage provides a structure that transforms open spaces into professional-grade performance venues.
2. Challenges & Solutions
In the event construction industry, the transition from medium to large-scale structures introduces significant challenges in load distribution and height safety. Standard trusses often struggle with the deflection caused by heavy LED screens and audio arrays over a 12-meter span. Additionally, the labor costs associated with assembling massive structures can quickly erode project profitability.
DragonStage solves these issues through high-precision engineering and modularity. Our 12x10x9m system utilizes reinforced aluminum alloy and a heavy-duty tower system that simplifies the lifting of overhead rigs. By using standardized sleeve blocks and high-strength connections, setup efficiency is drastically improved, allowing crews to secure the structure in a fraction of the time required for non-modular alternatives. Furthermore, our focus on material quality ensures that the structure remains stable even under the dynamic loads of a high-energy concert.
3. Key Features & Benefits
The 12x10x9m custom truss system is designed as a long-term asset for event professionals who require maximum versatility and strength.
High-Strength 6061-T6 Aluminum Construction
The core of the system is fabricated from 6061-T6 (or 6082-T6) aluminum alloy, known for its exceptional strength-to-weight ratio. This material choice ensures that while the structure can support thousands of kilograms of technical equipment, it remains light enough for cost-effective transportation and manageable on-site handling. The inherent corrosion resistance of this alloy makes it an ideal choice for outdoor festivals where exposure to the elements is unavoidable (Source:https://www.dragontruss.com/Aluminum-Truss-pl3962133.html).
9-Meter Tower Lifting System
Height is a critical factor in professional audio-visual production. The 9-meter pillars are equipped with specialized sleeve blocks and top sections that allow the entire roof and lighting rig to be assembled at ground level and safely hoisted into position. This "ground-support" approach is essential for maintaining safety standards during the build process, as advocated by industry safety leaders (Source:https://www.plasa.org).
Certified Load Capacity and Safety
Safety is the primary concern for any temporary structure. Every component in this 12x10m system is manufactured to meet rigorous international standards, ensuring that load-bearing calculations are accurate and reliable. This commitment to engineering excellence is backed by comprehensive TUV reporting, providing event contractors with the documentation necessary for local regulatory approvals and insurance compliance (Source:https://www.dragontruss.com/TUV-Report-dc249965.html).
4. FAQ Section
Q: What is the maximum weight the 12m beam can support?A: The load capacity depends on the specific truss profile chosen (e.g., 400x400mm or 400x600mm). Detailed load tables are provided with each custom configuration to ensure safety.
Q: Can this 9m structure handle high winds?A: Yes. When used with our heavy-duty steel bases, long outriggers, and appropriate ballast, the system is designed to maintain structural integrity in standard outdoor conditions.
Q: Is the PVC roof canopy fireproof?A: Yes, the roof canopy is made from flame-retardant PVC material, meeting international safety codes for temporary structures.
Q: Can I change the 12x10m footprint later?A: Absolutely. The modular nature of our trussing allows you to reconfigure the components for smaller or differently shaped setups, providing excellent return on investment.
5. Strong Call to Action (CTA)
Maximize the impact of your next event with a structural solution that combines scale, safety, and speed.
Contact DragonStage’s engineering team for your custom truss solution and start planning your next major production today.
