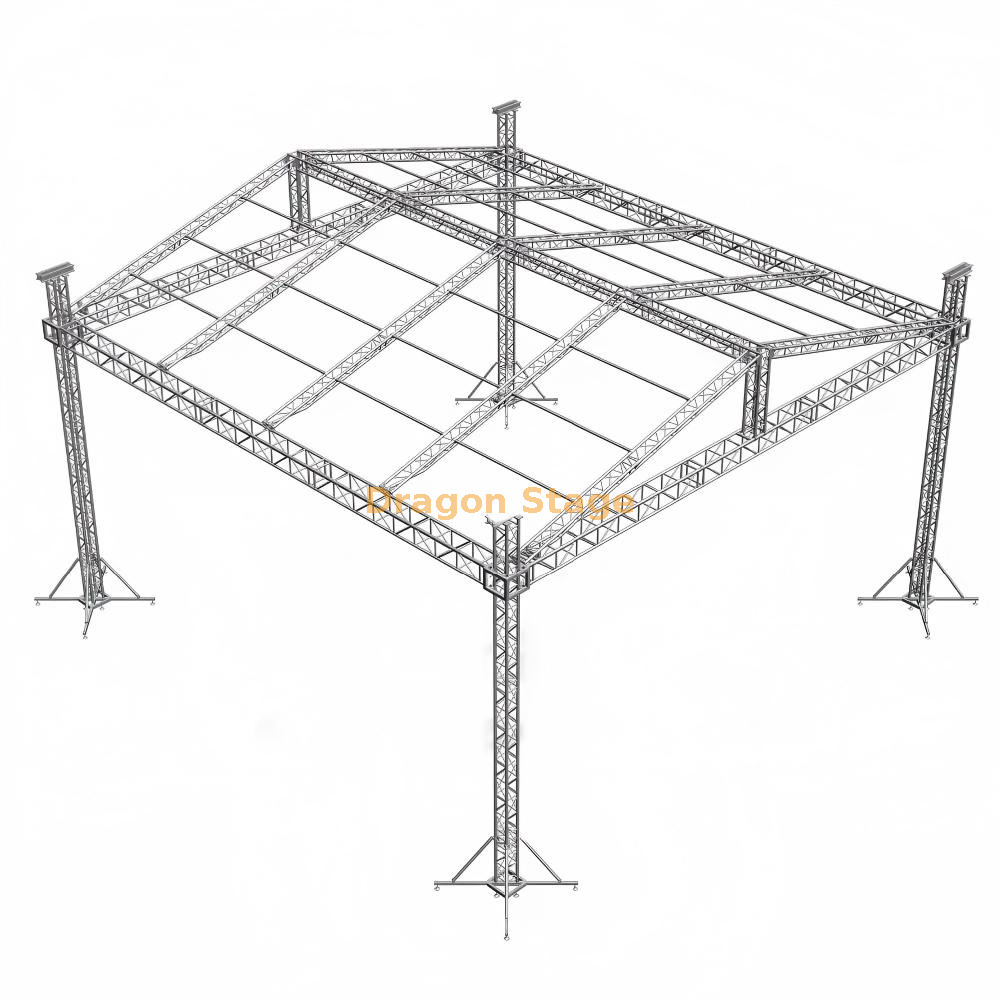

Outdoor Aluminum Portable Stage Lighting Truss System 32x32ft Height 16ft

5 0 Reviews

A set of 10x10x5m aluminum trusses for outdoor use. The trusses are lightweight. They are great for outdoor events, weddings, concerts, and more. The trusses are portable and can be set up quickly. They are very durable and can be used outdoors. The aluminum trusses come with ground stakes to secure them in place. They are very durable and can be used outdoors.

Price: ￥ 58174


Availability:



Inquire

Model:
CXM-11
Brand:
Dragon Stage

Product Description

微信截图_20201221152449 副本

packing weight: 1500

packing volume: 11cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
10.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	2pcs
10.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	2pcs
4.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	4pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.00 m	50×3.0	CS289×289	2pcs
10.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	3pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	1pcs
5.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		2.20 m	50×3.0	CS289×289	4pcs
5.20 m Ladder truss	8 sets	3.00 m	50×3.0	CL30,289*50	8pcs
		2.00 m	50×3.0	CL30,289*50	0pcs
		2.20 m	50×3.0	CL30,289*50	8pcs
Roof Components		roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
		roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
		Connect plate with clamp			2pcs
		Single clamp			16pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		177.36	1pcs

Professional 32x32ft Outdoor Aluminum Portable Stage and Lighting Truss System

1. Introduction

For regional festival organizers and production companies, a 32x32ft (10x10m) stage is the standard for high-impact outdoor performances. The Outdoor Aluminum Portable Stage Lighting Truss System by DragonStage provides a comprehensive, professional-grade venue solution with a substantial 16ft (5m) vertical clearance. Balancing a generous performance area with industrial rigging capacity, this system is designed to house complex lighting plots and high-fidelity audio arrays. The primary challenge for event managers is deploying a structure that is large enough to impress but modular enough for efficient transport and setup—a challenge this integrated aluminum system solves through precision engineering and high-strength materials.

2. Challenges & Solutions

One of the most frequent hurdles in outdoor production is the unpredictability of the terrain. Setting up a large 32x32ft structure on uneven grass or sloped pavement can compromise safety and visual symmetry. DragonStage addresses this with a modular stage platform featuring telescoping legs and heavy-duty leveling jacks, ensuring a perfectly flat performance surface regardless of the ground conditions. Additionally, managing heavy lighting loads at a 16ft height requires a fail-safe lifting mechanism. Our solution utilizes a specialized tower-and-sleeve block system, allowing the entire lighting grid to be pre-rigged at ground level and safely hoisted, which significantly reduces the time spent working at heights and enhances on-site safety for the crew.

3. Key Features & Benefits

The 32x32ft system is manufactured from aerospace-grade 6082-T6 aluminum alloy, a material chosen for its superior strength and natural resistance to corrosion, which is vital for long-term outdoor use (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html). This ensures the structure remains a durable, professional asset through hundreds of setup cycles.

The integrated stage platforms utilize 18mm thick anti-slip birch plywood, providing a secure, high-traction surface for performers even in high-moisture environments. According to international safety standards for temporary performance structures, maintaining a high load-bearing capacity per square meter is essential for the safe use of musical backline and heavy equipment (Source:https://www.plasa.org).

The system is topped with a heavy-duty, fire-retardant PVC canopy that features a pitched design to facilitate immediate water runoff during rainfall. This protectively engineered environment is perfectly compatible with our modular aluminum stage decks, which can be adjusted in height to create the ideal sightline for any audience size (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).

4. FAQ Section

Q: What is the maximum load the 32ft truss span can support?A: Depending on the specific truss profile, the 32ft spans are designed to support significant distributed loads for moving head lights and audio line arrays. Please contact our engineers for a detailed load table.

Q: Can the stage and the truss be used separately?A: Yes. The system is fully modular. You can use the stage platforms independently for indoor events or the trussing for ground-support lighting rigs without the stage.

Q: How many people are needed for assembly?A: A professional crew of 4–6 people can typically assemble the full 32x32x16ft system in approximately 3 to 5 hours.

Q: Is the PVC canopy waterproof?A: Absolutely. The canopy is made from 850g/m² PVC that is waterproof, UV-resistant, and meets B1/M2 fire-retardant safety standards.

5. Strong Call to Action (CTA)

Take your outdoor events to the next level with a structural solution built for durability and professional scale. Contact DragonStage’s engineering team today for a custom quote on the 32x32ft Outdoor Aluminum Stage and Lighting Truss System. Download our technical specifications and start planning your most successful concert season yet.
