3807-BS300 Standard Round Tube Bolt-Connected Aluminum Truss Design for Lighting and Exhibition Structures
Drawing File Reference
Drawing Index
3807 / 3886 / 3926 / 3939
Related Drawing File
Drawing Index
Configuration
Length
3807
BS300 Standard Section
1.7m

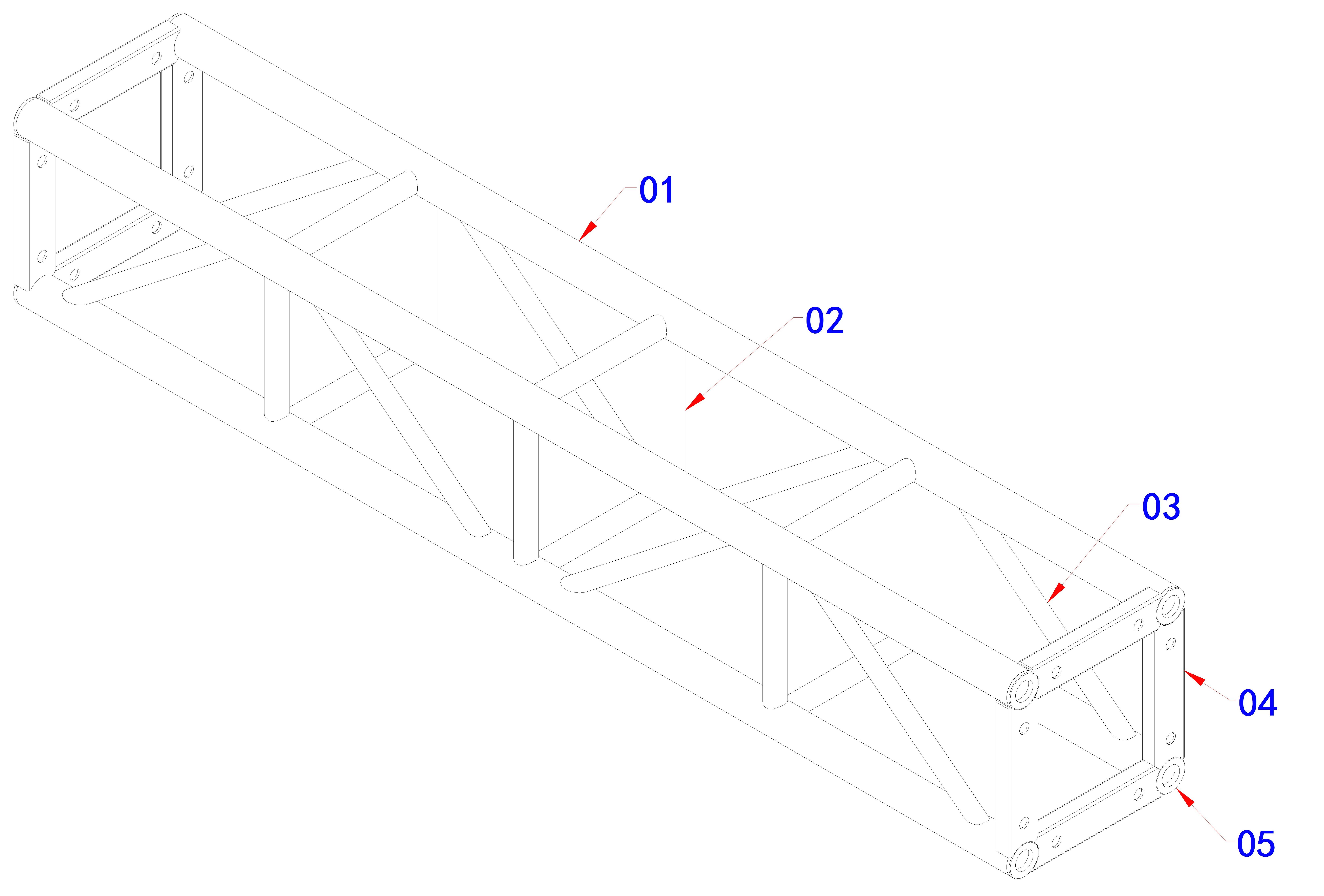

3807
BS300 Standard Section
2.7m
3807
BS300 Standard Section
3.2m
3886
BS300 Standard Section
1.85m
3886
BS300 Standard Section
2.4m
3926
BS300 Standard Section
1.225m

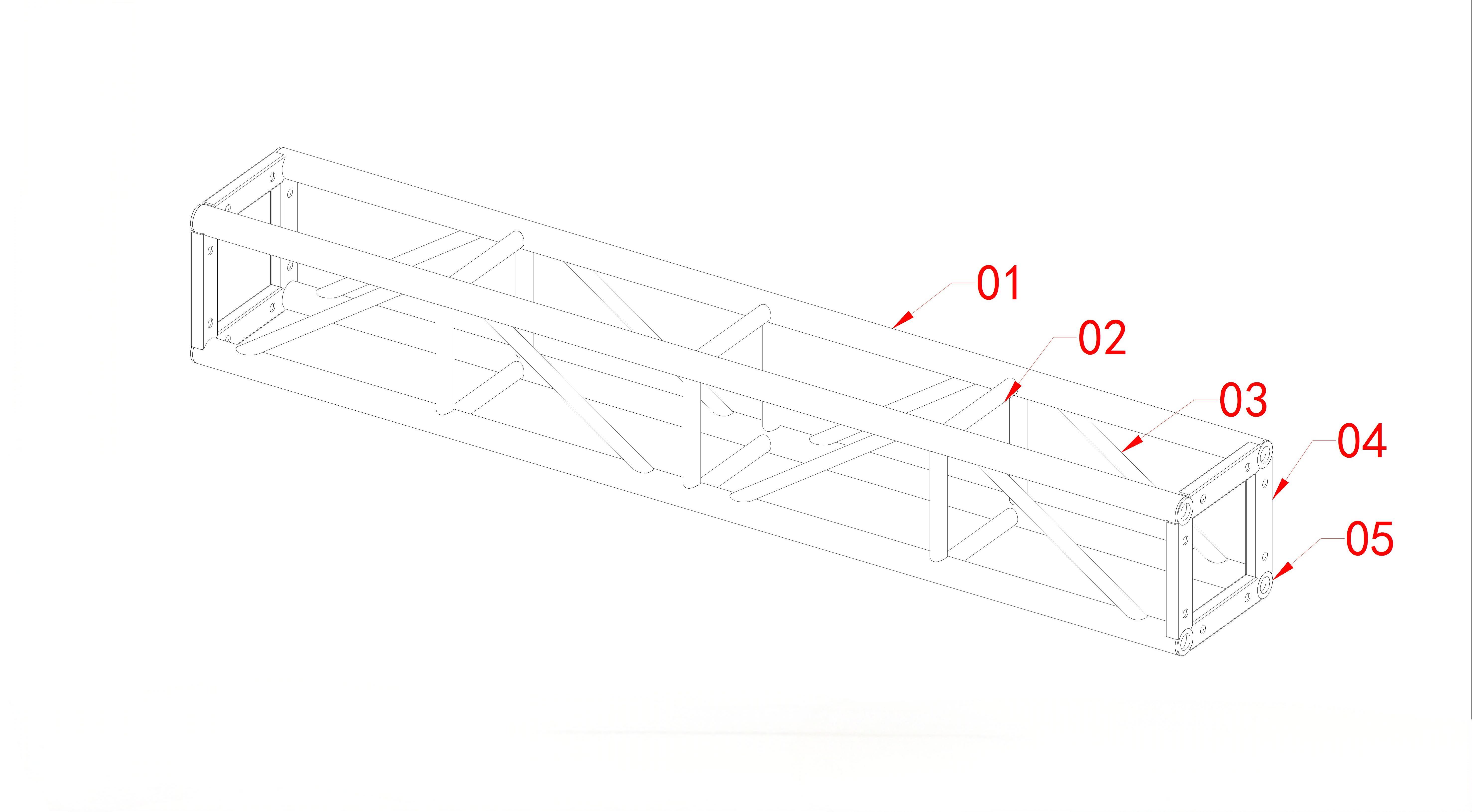

3926
BS300 Standard Section
1.8m

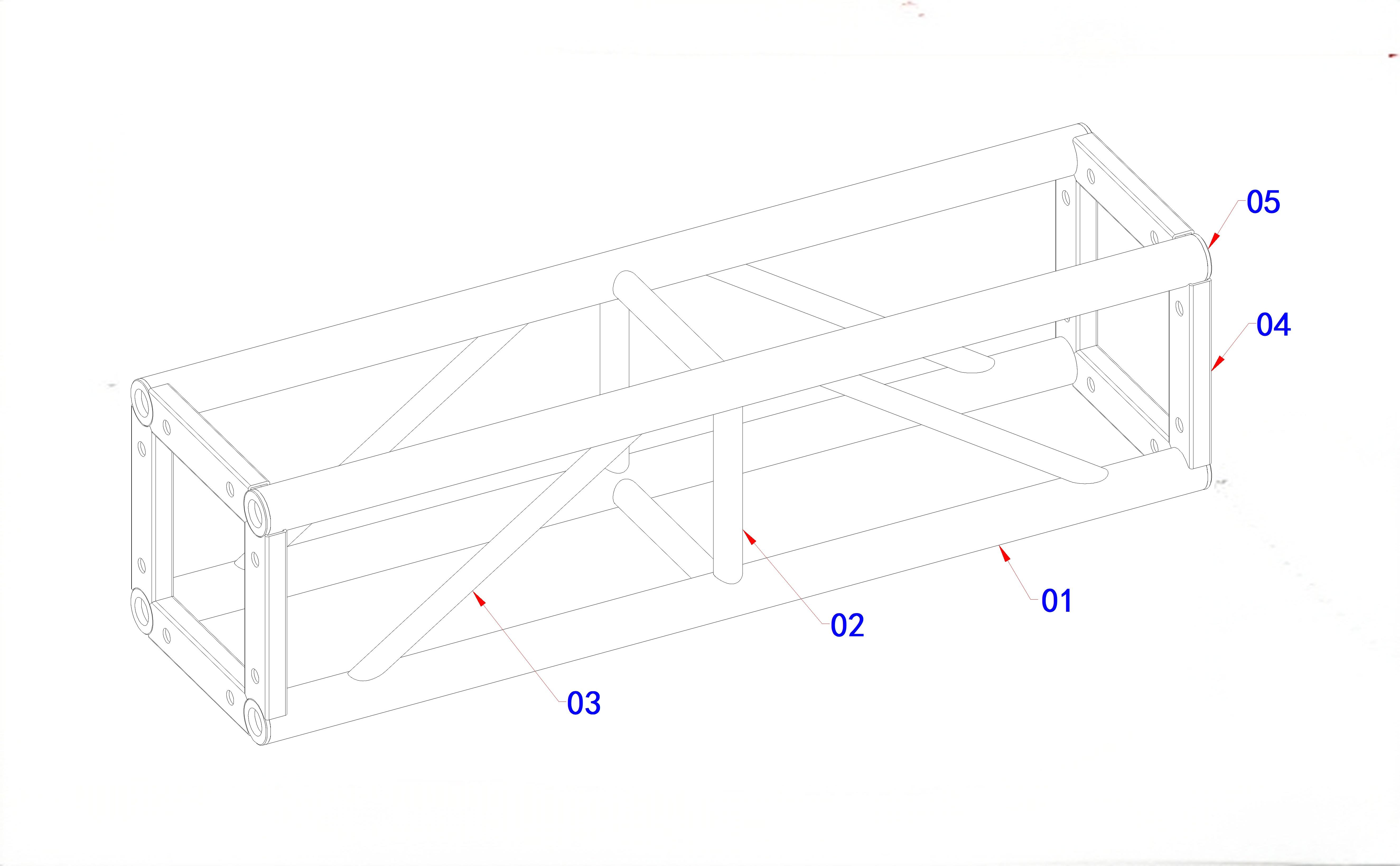

3939
BS300 Standard Section
1.1m
The above drawings represent standard BS300 round tube bolt-connected aluminum truss sections designed for indoor and outdoor lighting structures, exhibition frameworks and mechanical support structures.
The drawing index is used as a reference for locating related CAD drawings, production records and customized truss configurations.
Drawing Information
Item
Details
Drawing Index
3807 / 3886 / 3926 / 3939
Drawing Series
BS300 Round Tube Bolt-Connected Aluminum Truss
Structure Type
Standard Aluminum Truss Component
Application
Lighting Truss / Exhibition Structure / Mechanical Support Structure
Cross Section
Width 300mm × Height 300mm
Main Tube
50mm Aluminum Round Tube
Length
1.1m - 3.2m (Available Configurations)
Environment
Indoor and Outdoor Application
Material
Aluminum Alloy
Connection System
Bolt Connection
Drawing Type
2D CAD Drawing
Design Purpose
Structural Component for Lighting and Exhibition Frameworks
3807-BS300 Standard Bolt Truss Design for Lighting and Exhibition Structures
Introduction
This drawing archive presents the BS300 standard round tube bolt-connected aluminum truss components developed for lighting structures, exhibition frameworks and mechanical support applications.
The drawings are indexed under references 3807, 3886, 3926 and 3939, covering multiple standard lengths from 1.1m to 3.2m.
The BS300 series adopts a 300mm × 300mm square truss structure with 50mm aluminum round main tubes. The bolt-connected design provides a flexible solution for temporary structures where transportation, installation efficiency and configuration flexibility are important.
Unlike welded permanent structures, bolt-connected aluminum truss systems can be disassembled, transported and reused, making them suitable for event applications, exhibition installations and entertainment structures.
Design Overview
The BS300 round tube bolt-connected truss adopts a modular structural design.
The main components include:
50mm aluminum round tube main chords;
Aluminum diagonal braces;
Square end plates;
Bolt-connected assembly system.
Compared with fixed welded truss structures, bolt-connected truss systems provide advantages in:
Easy transportation;
Convenient storage;
Flexible installation;
Reusable structural configuration;
Customized length selection.
The 300mm × 300mm cross-section provides a balance between structural performance and portability, making it widely used for small and medium-scale lighting and exhibition structures.
The connection method is an important factor when selecting temporary structure components. Different connection systems, such as spigot connection, bolt connection and plate connection, are selected according to application requirements.
More information about truss connection methods can be found in:
For future purchasing applications, this drawing archive can be connected with:
BS300 Round Tube Bolt-Connected Aluminum Truss
Possible product configurations:
BS300 Bolt Truss × 1.1m
BS300 Bolt Truss × 1.225m
BS300 Bolt Truss × 1.7m
BS300 Bolt Truss × 1.8m
BS300 Bolt Truss × 1.85m
BS300 Bolt Truss × 2.4m
BS300 Bolt Truss × 2.7m
BS300 Bolt Truss × 3.2m
Related applications:
Lighting Truss Systems;
Exhibition Frameworks;
Indoor Event Structures;
Mechanical Support Structures.
The drawing archive demonstrates Dragon Stage's engineering and customization capability, while product pages provide purchasing information and specifications.
FAQ
1. What is the BS300 bolt-connected truss mainly used for?
The BS300 bolt-connected aluminum truss is mainly used for lighting structures, exhibition frameworks, entertainment installations and temporary structural applications.
2. What is the size of the BS300 truss?
The BS300 truss has a square cross-section of 300mm × 300mm with 50mm aluminum round tube main chords.
3. What lengths are available for this BS300 truss series?
This drawing archive includes standard lengths from 1.1m to 3.2m. Customized lengths can also be produced according to project requirements.
4. Why choose bolt-connected truss instead of welded truss?
Bolt-connected truss provides easier transportation, storage and reuse capability, making it suitable for temporary event and exhibition applications.
5. Can BS300 truss be used outdoors?
Yes. The aluminum structure can be used outdoors, but final application should consider environmental conditions, equipment loading and structural requirements.
Design Notice
The drawings shown in this archive are provided for reference purposes to demonstrate Dragon Stage's standard and customized truss design capability.
Final structural selection should be confirmed according to actual project requirements, loading conditions, installation environment and applicable safety requirements.
