8x6x7m Aluminum Roof Truss Stage System with 2m Wings & Canopy (300mm Bolt Truss)

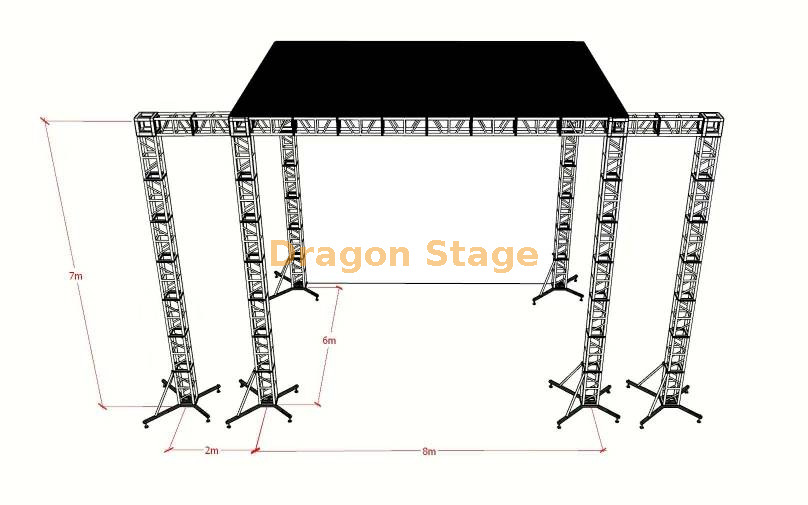

This is an 8m wide × 6m deep × 7m high aluminum roof truss stage system, built with 300mm bolt truss, featuring 2m side wings and a canopy roof, designed for outdoor concerts and event staging requiring weather protection and professional rigging support.

packing weight:1000kg

packing volume:9cbm

300mm bolt box truss 2m 4p

300mm bolt box truss 3m 20p

300mm bolt box truss 1m 6p

300mm bolt ladder truss 3m 6p

steel base for 300mm bolt box truss 6p

outriggers for base 24p

300mm cube 6p

double clamp 6p

canopy 63sqm

Product Description

This aluminum roof truss stage system is a complete structural solution for outdoor events, combining lighting support, stage coverage, and weather protection in a single modular system.

With a total size of 8m span, 6m depth, and 7m height, this structure is designed to support lighting, LED screens, and audio systems while providing a canopy roof for rain and sun protection. The addition of 2m side wings allows for extended rigging space for line arrays or lighting equipment.

The system is constructed using 300mm bolt truss, known for its rigid connection and cost-effective structural performance. Compared to spigot systems, bolt truss offers stable connections suitable for fixed or semi-permanent setups. Learn more about truss types in types of stage truss and box truss systems.

From an engineering perspective, roof truss systems must consider combined loads from lighting, roofing materials, and environmental forces. This system follows principles explained in load analysis for modular stage systems and complies with safety standards and engineering constraints.

The modular structure is based on modular system logic, allowing efficient transportation and on-site assembly. For installation guidance, refer to installation methodology.

This roof truss system is widely used in:

• Outdoor concerts and festivals

• Touring stage productions

• Exhibition and brand events

• Temporary performance stages

Explore more solutions in concert & event stage systems and temporary stage truss systems for touring.

Material selection plays a critical role in structural safety. This system uses high-quality aluminum alloy, as explained in certified aluminum materials and aluminum mechanical properties comparison.

For a complete event setup, this system integrates with stage platforms to form a full performance stage solution.

Product Highlights

• Full system: truss structure + canopy + wings

• Size: 8m × 6m × 7m for professional stage coverage

• 300mm bolt truss: strong, stable, cost-effective

• 2m wings: additional space for speakers or lighting

• Canopy roof: protection from rain and sunlight

• Modular design for transport and fast installation

Structural Engineering Insight

Compared to standard lighting truss systems, this roof truss structure introduces additional complexity:

• Roof load (fabric + wind pressure)

• Lateral stability due to height (7m towers)

• Load distribution across main beam and wings

• Connection rigidity (bolt system behavior under load)

For deeper understanding:

• what is truss in event

• how much weight can a truss system hold

• how to install stage truss

These factors are critical for safe outdoor use.

Application Scenarios

This 8m roof truss stage system is ideal for:

• Outdoor concerts and live performances

• Festival stages and touring productions

• Corporate events and brand shows

• Exhibition and temporary stage setups

See more real-world use cases in:

• concert stage applications

• event stage projects

FAQ

What is the size of this roof truss system?

It is 8m wide × 6m deep × 7m high, with additional 2m side wings.

What type of truss is used?

This system uses 300mm bolt truss, suitable for stable and cost-effective stage structures.

Is the canopy included?

Yes, the system includes a canopy roof for weather protection in outdoor events.
