The maximum load capacity of an aluminum lighting truss depends on span length, truss size, material grade, and load type. Typically, a 290mm truss supports around 100–300 kg, while a 400mm truss can support 300–1000+ kg when properly installed and engineered.
If you are not familiar with truss systems, start here:
What Determines the Load Capacity of a Truss System?
In general, event truss systems are designed to support heavy loads and are commonly used for suspending equipment such as lighting fixtures, audio systems, and video screens. However, the load capacity of a truss system will vary depending on the specific truss and the conditions under which it is being used.
The load capacity of a truss system is not fixed. It depends on several key factors:
1. Span Length
The longer the span, the lower the load capacity.
2. Truss Size
Larger trusses (such as 400mm) provide significantly higher strength than smaller ones.
3. Material Grade
Most high-quality trusses use 6061-T6 or 6082-T6 aluminum.
It is also important to note that exceeding the maximum load capacity of a event truss system can be extremely dangerous and can result in the truss collapsing, causing injury or property damage. Therefore, it is critical to ensure that your truss system is designed and installed by qualified professionals who understand the load capacity of the system and follow all safety guidelines and regulations.
Always stay below the maximum rated load and consider safety factors.
Can I calculate load capacity myself?
Basic estimation is possible, but professional calculation is recommended.
What happens if a truss is overloaded?
It may bend, deform, or collapse, causing serious safety risks.
Conclusion
The load capacity of a lighting truss system is a critical factor in event safety and structural performance. Choosing the correct truss size and understanding load behavior is essential for any professional setup.
In this article we have upload the most used event truss data on its loading capacity and other information you may need. you can check and have a view. if you have any other questions, you can contact us directly.
our all Aluminum Mobile Stadium Seating Chairs, the perfect seating solution for stadiums, arenas, sports events, and outdoor venues. Crafted with precision and innovation, these chairs offer exceptional comfort, durability, and versatility.
DragonStage 21-seat mobile stadium seating system uses an all-aluminum structural configuration for temporary spectator seating at sports events, arenas, stadiums, outdoor events and temporary venues. The complete unit provides 21 seating positions and is designed for customers who need a reusable, relocatable audience seating solution rather than permanently installed grandstands.
Section:Square400x500mm Inclined tube: 25x2.0mm Main tube:50x3.0mm Braces:50x2.0mm Material: Aluminum 6061-T6
Our high-strength 500x400mm lighting truss is engineered from premium aluminum alloy for superior load-bearing performance. Ideal for music and audio setups, this durable screw-connection system ensures stability for professional stage environments. Built to meet rigorous safety standards, it provides a reliable foundation for any event production.
Section:Square500x500mm Inclined tube: 25x2.0mm Main tube:50x3.0mm Braces:50x2.0mm Material: Aluminum 6061-T6 This heavy-duty 500x500mm bolt aluminum square truss is the ultimate foundation for outdoor concert stages and large-scale events. Engineered for maximum structural stability, this aluminum truss system provides the high-load capacity needed to support massive lighting rigs and heavy audio arrays safely in any environment.
Section:Square400x400mm Inclined tube: 25x2.0mm Main tube:50x3.0mm Braces:50x2.0mm Material: Aluminum 6061-T6
This versatile 400x400mm aluminum roof screw lighting truss is the industry standard for medium-to-heavy stage rigging. Engineered for exceptional durability, this high-performance aluminum truss system supports heavy lighting and audio equipment with ease. It is the perfect foundation for building safe, professional modular stage systems for any event.
Outdoor Speaker Aluminum Stand Line Array Gentry Truss Tower 5m High
fixed height 5m, it have 2 ground truss beams without supports rods, spigot truss tower
The DragonStage 5m Line Array Speaker Gantry Truss Tower is a fixed-height aluminum support system for suspending line array speakers at concerts and outdoor events. It uses 289 × 289mm spigot truss, two vertical 5m tower sides, a top crossbeam, and two ground truss beam assemblies. The current configuration does not use separate support rods.
The 4m × 6m DragonStage Channel Tent is a customized aluminum A-frame tent designed to create a covered passage between backstage or stage-side preparation areas and the main stage. It can be installed inside an opening intentionally reserved within a larger Ringlock structure, helping protect performers, staff, costumes and equipment from rain while providing a more private and clearly defined access route.
The 4m × 6m Built-In Hybrid Ringlock FOH Booth is a compact technical workspace designed for Front of House control, DJ operation, and event control-cabin use. It combines a Ringlock-integrated support concept with an aluminum roof frame, modular plank floor, roof tarpaulin, side curtains, and front/rear enclosure panels, making it suitable for integration inside larger event structures.
4m × 4m multi-level FOH control tower combining a modular Ringlock main structure with an aluminum single-slope roof frame. Maximum height is 7m, with a 6m low-side roof height and 7m high-side roof height. The package includes working platforms, aluminum ladders, roof and canopy tarpaulins, curtain enclosure, auxiliary base structure and related stabilization components for concert and event production
6m × 4m hybrid FOH control booth combining a modular Ringlock main structure with an aluminum single-slope roof frame, modular working platform, curtain enclosure, roof tarpaulin, and access ladder. Designed for concert, festival, and temporary event technical-control applications
2m × 6m hybrid FOH control booth combining a modular Ringlock main structure with an aluminum gable roof frame, 2m eave height, 3m central ridge height, modular working platform, weather curtains and steel stair access for concert and event technical control applications.
2m × 0.5m steel Ringlock speaker tower top support beam made from 48.5mm round pipe, designed to connect the upper Ringlock tower structure with aluminum truss for line array and event audio support applications. Custom supplied by DragonStage
Compact 2m × 2m FOH control booth combining a modular Ringlock main frame with an aluminum A-frame roof and roof tarpaulin. The booth has 2m side/eave height and a 3m central ridge height, providing a small covered technical workspace for concerts, festivals and temporary event production.
6m × 6m aluminum flat roof truss system with a 4m front height and 6m rear height, using a four-tower modular support configuration for concerts, lighting rigs, stage productions, and temporary event applications. Custom manufactured by DragonStage.
The 4m × 6m Hybrid Ringlock FOH Control Booth is a customized Front of House structure for concert, festival, live-event, and production-control applications.
The main booth structure is built from a modular Ringlock system, while the pitched roof uses a separate aluminum frame. This combination allows the booth body, working floor, enclosure, and roof components to be supplied as one coordinated temporary-event package.
The confirmed dimensions for this configuration are:
Width: 4m
Depth: 6m
Overall structure height: 3m
Side / eave height: 2m
Roof ridge height: 2.5m
The structure also includes roof tarpaulins, side and rear/front curtain panels, aluminum roof beams, platform planks, diagonal bracing, and steel ballast-pipe components according to the supplied BOQ.
DragonStage supplies other modular temporary structures through our Ringlock Structure System product range.
The 4m × 4m Multi-Level Hybrid Ringlock FOH Control Tower is a customized Front of House control structure designed for concerts, festivals, live productions, and other temporary event applications.
This product combines a Ringlock main tower structure with an aluminum roof frame and weather-cover system, creating a compact but elevated technical-control tower for audio, lighting, video, or show-operation use.
The confirmed project dimensions are:
Width: 4m
Depth: 4m
Overall maximum height: 7m
Side height: 6m
Roof low point: 6m
Roof high point: 7m
This makes it a sloped-roof hybrid FOH tower, with the roof rising from the lower side to the higher side.
According to the supplied BOQ, the structure includes the Ringlock main body, internal planks, ladder-access components, aluminum roof beams, side-wall curtain posts, roof tarpaulin, side and front/back curtains, ballast-pipe components, and a lower auxiliary base structure.
Professional Rental LED Screen Pad Block Mounting System - Precision Adjustable Spacing Bracket with Locking Nut for Stage Truss Video Wall Installation
The 24ft × 24ft Flat Roof Aluminum Truss System is a customized four-tower event truss structure with a 20ft tower height, designed for temporary stages, lighting installations, concerts, performances, corporate events, and other event-production applications.
The system uses four vertical aluminum truss towers supporting a square flat-roof truss framework. Internal cross truss members divide the overhead area into multiple rigging zones, allowing the roof framework to be configured around the actual lighting and event-equipment layout.
The drawing also shows a tower lifting arrangement with sleeve blocks, allowing the assembled upper truss grid to be positioned on the vertical towers as part of the installation process.
DragonStage manufactures flat roof systems in different dimensions and configurations. See more products in our Typical Flat Roof Truss System range.
The 8.3m Heavy Duty Layher Truss Support Tower System is a professional, high-capacity rigging structure designed for outdoor concerts, large events, and festival stages. Engineered with a stable 6m × 2m base footprint and high-strength modular components, this system provides a secure overhead rigging solution for line array audio speakers, LED screens, and heavy lighting rigs. Its fast pin-and-wedge assembly ensures quick setup and maximum stability for demanding stage applications.
The 24m × 24m x6m Aluminum Truss Tent Structure is a customized outdoor covering solution designed for terraces, resorts, beach areas, hospitality spaces, and temporary event applications.
Based on the customer's requirements, this structure uses a 400mm aluminum screw truss system with a pyramid roof design, supported by 10 aluminum truss columns and covered with a white waterproof PVC tarpaulin.
The open-span design provides a large covered outdoor area while maintaining a clean architectural appearance suitable for outdoor events and commercial spaces.
DragonStage manufactures customized Aluminum Truss structures according to customer dimensions, application requirements, and project conditions.
Professional 12U and 16U flight case rack cabinet for mixers, amplifiers and event audio equipment. DragonStage provides customized rack cases for concerts, touring productions and professional events.
This customized large tunnel event structure combines a 24m wide × 18m deep × 15m high tunnel aluminum truss system with a 21.96m × 14.4m × 2m high stage platform.
The upper structure uses multiple large curved aluminum truss arches connected by longitudinal truss sections, creating a wide-span architectural framework above the event area. The complete system can be supplied together with the elevated stage platform as a customized package for stadium events, ceremonies, concerts, festivals, and other large temporary productions.
The dimensions shown here come from an actual customer quotation requirement rather than a standard catalogue size.
DragonStage manufactures customized Roof Truss systems in different dimensions and configurations according to project requirements.
This customized 12m × 10m Ringlock concert stage system combines a 2m-high main stage, a 2m × 6m runway, four access stairs, three-sided Ringlock wall structures, approximately 4m-wide LED support areas on both sides, and a customized 400 × 400mm aluminum truss package above the stage.For other modular configurations, see our Ringlock Stage System
This 14m × 10m Ringlock concert stage system is a customized large-event stage package combining a steel Ringlock stage platform, aluminum peak roof truss, 6m-wide side structures for LED screens, and dedicated structures for line array suspension.
The main performance platform measures 14m × 10m, with a requested stage height of up to 2m. Ringlock scaffolding is also used to build the surrounding support structures up to approximately 10m high, matching the main stage and the 6m-wide wings on both sides.
Instead of purchasing the stage platform, roof truss, LED supports, and sound-support structures separately, customers can order them as one coordinated event-stage package from DragonTruss.
2m × 2m modular Ringlock audience viewing platform originally configured for socially distanced concert seating areas. The system features a 0.2m-high aluminum pallet platform, three-sided double-rail guardrails, an open rear entrance, adjustable steel base jacks, and a front-facing position for event or sponsor posters.
20m wide × 14m deep × 10m high custom curved roof truss system featuring six main support towers and two 2m-wide side wings for line array systems with manual hoists. Designed as a modular aluminum truss structure for concerts, festivals, live productions, and other large event applications.

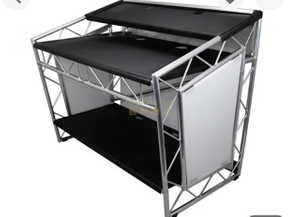

This custom mobile DJ table is designed for a customer who needed one standalone DJ workstation rather than a complete stage system.
