Dragon Stage
packing weight: 4300kg
packing volume；35cbm
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 15.00 m Beam(front) | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 20pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 30.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 18pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS389×389 | 6pcs | |||||
| 7.00 m Pillar | 8 sets | 3.00 m | 50×3.0 | CS289×289 | 16pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 8pcs | |||||
| Frame Tower | Spigot Sleeve Block S | 8pcs | ||||||
| Steel Base S | 8pcs | |||||||
| Top Section S | 8pcs | |||||||
| Manual hoist,BA05 2Tons | 8pcs | |||||||
| Spigot Hinge Section,Height 1m | 8pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 8pcs | |||||||
| Long outrigger | 32pcs | |||||||
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| Roof Pillar | 4 sets | 1.50 m | 50×3.0 | CS289×289 | 4pcs | |||
| 30.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 9pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 3pcs | |||||
| 7.70 m Oblique Beam | 8 sets | 3.00 m | 50×3.0 | CS289×289 | 16pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.70 m | 50×3.0 | CS289×289 | 8pcs | |||||
| 7.70 m Ladder truss | 24 sets | 3.00 m | 50×3.0 | CL30,289*50 | 48pcs | |||
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs | |||||
| 1.70 m | 50×3.0 | CL30,289*50 | 24pcs | |||||
| Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
| roof conner 5 ways, use for roof beam truss | CS289×289 | 2pcs | ||||||
| Connect plate with clamp | 4pcs | |||||||
| Single clamp | 48pcs | |||||||
| Double clamp | 16pcs | |||||||
| roof canopy material:pvc, Blue Colour or customized. | 613.86 | 1pcs | ||||||

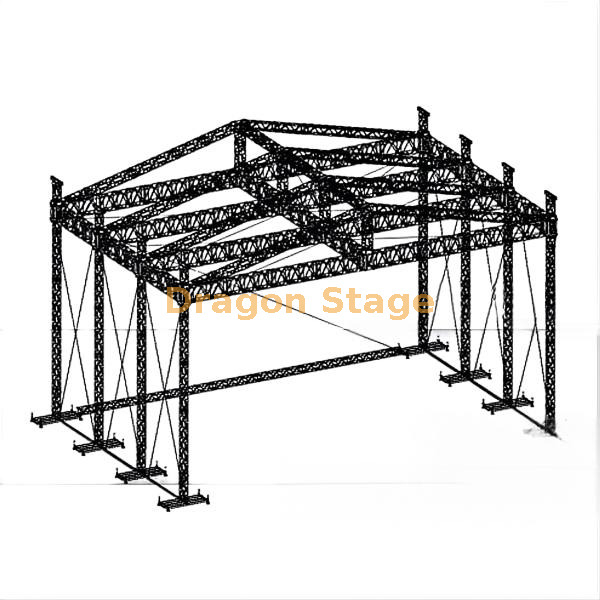

For world-class festivals, stadium-scale concerts, and massive corporate activations, the scale of the structure must match the ambition of the event. The 30x15x8m Large Event Tent Truss System by DragonStage is an elite engineering solution providing a staggering 450 square meters of covered space. Featuring a unique "Saddle Roof" design and a commanding 8-meter vertical clearance, this system is built to house the most complex technical riders in the industry. For event producers and venue managers, the challenge is maintaining absolute structural safety over a 30-meter clear span—a challenge this heavy-duty aluminum system solves with advanced truss geometry and industrial-grade materials.
The primary challenge of a 30-meter horizontal span is managing the immense gravitational and environmental loads. Traditional trusses can suffer from "sag" or deflection over such distances; DragonStage solves this by utilizing ultra-heavy-duty aluminum box truss profiles specifically engineered for long-span rigidity. Additionally, outdoor events are at the mercy of the wind; the "Saddle Roof" geometry is aerodynamically superior, allowing wind to pass over the structure with reduced lift compared to flat designs. To manage rain, the saddle shape ensures that water is naturally channeled toward the outer pillars, preventing the dangerous weight accumulation of water pockets. For setups on varied terrain, the multi-tower ground support system includes adjustable leveling jacks to ensure a perfectly stable foundation.
The 30x15x8m system is manufactured from aerospace-grade 6082-T6 aluminum alloy. This material is the global benchmark for high-load event structures, offering exceptional tensile strength and natural resistance to corrosion (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).
The system utilizes a modular tower-and-sleeve block design. This allows the massive 30x15m roof grid to be assembled and fully rigged with lighting, audio, and LED screens at ground level. The entire structure is then hoisted to its 8-meter peak using synchronized electric chain hoists. According to international safety standards for temporary structures, this ground-support method significantly reduces the risks associated with working at heights while ensuring a perfectly level lift (Source:https://www.plasa.org).
To provide a complete venue solution, this trussing is fully compatible with our modular aluminum stage platforms. These decks feature 18mm anti-slip surfaces and high load-bearing capacities, creating a professional performance floor that integrates seamlessly with the overhead saddle roof (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).
Q: What is the benefit of a Saddle Roof over a standard Pitched Roof?A: The saddle design offers superior wind deflection and more efficient water drainage for very large spans, while also providing a unique, high-end visual profile for your event.
Q: Can this 30m span support heavy LED video walls?A: Yes. The structure is designed for heavy-duty applications. However, for 30m spans, we provide custom load-calculation reports to ensure your specific rigging plot is safe.
Q: Is the PVC canopy waterproof and fire-safe?A: Absolutely. Our canopies are made from 850g/m² PVC that is waterproof, UV-resistant, and meets B1/M2 fire-retardant safety standards.
Q: How do we transport such a large system?A: The system is completely modular, breaking down into 2m and 3m truss sections for efficient packing into standard shipping containers or heavy-duty trailers.
Bring your largest event visions to life with a structure built for stadium-scale performance and absolute safety. Contact DragonStage’s engineering team today for a custom quote on the 30x15x8m Saddle Roof Truss System. Download our technical specifications and start planning your most ambitious production yet.
