Dragon Stage
packing weight:1700kg
packing volume:12cbm
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 9.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 8.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| Frame Tower | Spigot Sleeve Block S | 4pcs | ||||||
| Steel Base S | 4pcs | |||||||
| Top Section S | 4pcs | |||||||
| Manual hoist,BA05 2Tons | 4pcs | |||||||
| Spigot Hinge Section,Height 1m | 4pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
| Long outrigger | 16pcs | |||||||
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| Roof Pillar | 2 sets | 1.20 m | 50×3.0 | CS289×289 | 2pcs | |||
| 9.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 3pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
| 1.20 m | 50×3.0 | CS289×289 | 4pcs | |||||
| 6.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL30,289*50 | 8pcs | |||
| 2.00 m | 50×3.0 | CL30,289*50 | 8pcs | |||||
| 1.20 m | 50×3.0 | CL30,289*50 | 8pcs | |||||
| Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
| Connect plate with clamp | 2pcs | |||||||
| Single clamp | 16pcs | |||||||
| Double clamp | 8pcs | |||||||
| roof canopy material:pvc, Blue Colour or customized. | 194.16 | 1pcs | ||||||

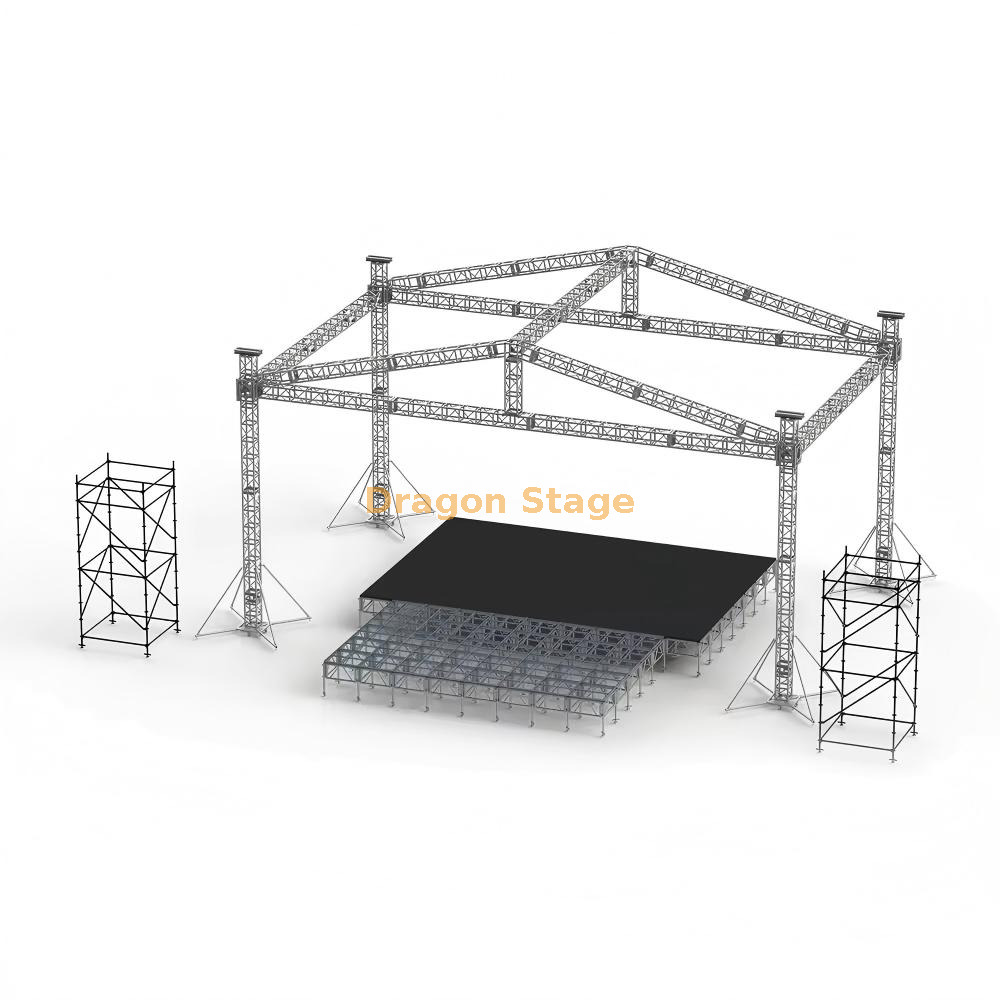

For marquee concert events and high-profile outdoor shows, the stage architecture is a statement of professional quality. The 12x9x9m Aluminum Spigot Stage Pyramid Roof Truss System by DragonStage is a premier structural solution designed to provide maximum visual impact and industrial-grade safety. Featuring a massive 108-square-meter covered area and a commanding 9-meter vertical height, this pyramid roof design offers superior overhead volume for complex lighting rigs and large-scale audio systems. For event organizers, the challenge is deploying a large structure that is robust enough for the elements yet efficient enough for rapid on-site assembly—a challenge this precision-engineered spigot system meets with excellence.
One of the primary challenges for outdoor stages is the "sail effect" caused by wind. Traditional flat or high-pitched roofs can catch wind aggressively, stressing the tower system. DragonStage solves this with the Pyramid Roof geometry, which provides multidirectional wind deflection, significantly increasing stability in open-field settings. Another common pain point is water accumulation during sudden downpours; the four-sided slope of the pyramid ensures immediate water runoff from every angle, eliminating the danger of water pockets. Additionally, for setups on varied festival terrain, our system features heavy-duty tower bases with adjustable leveling jacks to ensure a perfectly level and secure 9-meter structure on any surface.
The 12x9x9m system is manufactured from aerospace-grade 6061 aluminum alloy. This material is the global industry standard for professional trussing, offering a superior strength-to-weight ratio and natural resistance to environmental oxidation (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).
The system utilizes high-precision spigot (conical) connections. Unlike bolt-trussing, spigot connections are tool-free and significantly faster to assemble, which is critical for meeting tight "load-in" schedules. According to international safety standards for temporary event structures, the use of a tower-based ground support system allows the entire 12x9m grid to be rigged at ground level and safely hoisted to its 9-meter peak, minimizing the risks associated with overhead work (Source:https://www.prolight-sound.com).
To provide a complete venue solution, this pyramid roof is designed for seamless integration with our modular aluminum stage platforms. These decks feature 18mm anti-slip surfaces and high load-bearing capacities, creating a professional and secure foundation for performers beneath the massive overhead rig (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).
Q: What is the main advantage of the Pyramid Roof design?A: Beyond its unique aesthetic, the pyramid shape offers excellent water drainage and superior wind resistance from all four sides, making it exceptionally stable for outdoor use.
Q: Can this 12m span support heavy LED screens?A: Yes. The 6082-T6 aluminum box truss is designed for high-capacity rigging. For specific screen weights, please consult our engineering team for a verified load calculation.
Q: Is the PVC canopy waterproof and fire-safe?A: Absolutely. The canopy is made from 850g/m² PVC that is waterproof, UV-resistant, and meets B1/M2 fire-retardant safety standards.
Q: How do we raise the 9-meter towers?A: The system includes a professional tower lift system with sleeve blocks. At this scale, we recommend using synchronized electric chain hoists for a safe and efficient lift.
Take your event production to a higher level with a structure built for elite performance and absolute safety. Contact DragonStage’s engineering team today for a custom quote on the 12x9x9m Pyramid Roof Truss System. Download our technical specifications and start planning your most successful concert season yet.
