Introduction
In stage systems, truss structures, and load-bearing frames, material selection is not just about cost — it directly affects safety and structural performance.
Among aluminum alloys, 6061-T6 and 6082-T6 are two of the most commonly used materials in event and structural applications.
To better understand how these materials influence design, it is also useful to review load analysis for modular stage systems before making structural decisions.
Note: In structural applications, mechanical properties should be based on aluminum extrusion profiles, not sheet or plate data.
This article lists the mechanical data first, then explains what those numbers mean in actual use.
Mechanical Properties of 6061-T6 Aluminum
Basic Properties (Extrusion Profiles)
Property | Value |
|---|
Tensile Strength (Rm) | ≈ 260 MPa |
Yield Strength (Rp0.2) | ≈ 240 MPa |
Elongation | 7% – 10% |
6061-T6 is a general-purpose structural aluminum alloy. It offers stable mechanical performance and is relatively easy to process, which is why it is widely used in stage platform systems and standard aluminum structures.
Engineering Note
Many sources use sheet aluminum data for structural analysis. However, in truss and stage systems, material behavior must follow extrusion standards, otherwise load calculations may be inaccurate.
Mechanical Properties of 6082-T6 Aluminum
Basic Properties (Extrusion Profiles)
Property | Value |
|---|
Tensile Strength (Rm) | 290 – 310 MPa |
Yield Strength (Rp0.2) | 250 – 260 MPa |
Elongation | 6% – 10% |
6082-T6 is a higher-strength structural aluminum alloy. It is more suitable for heavy load-bearing structures, especially in roof truss systems and large-span support frames.
Engineering Behavior
Compared with 6061-T6:
Higher yield strength → higher load capacity
Slightly lower ductility → less deformation tolerance
More sensitive to structural design and connections
6061-T6 vs 6082-T6: Direct Comparison
Property | 6061-T6 | 6082-T6 |
|---|
Tensile Strength | ≈ 260 MPa | 290 – 310 MPa |
Yield Strength | ≈ 240 MPa | 250 – 260 MPa |
Elongation | 7% – 10% | 6% – 10% |
Strength Level | Medium | Higher |
Processing | Easier | Slightly harder |
At first glance, the difference may not seem large. But in structural engineering, even a small increase in yield strength can significantly change load capacity and safety margin, especially when verified through stage load calculation guide.
Engineering Implications
From an engineering point of view:
Higher yield strength → higher allowable load
Lower ductility → lower deformation tolerance
Material behavior must match structural design
So the real question is not only which alloy is stronger, but also:
These factors should always be checked together with load analysis for modular stage systems.

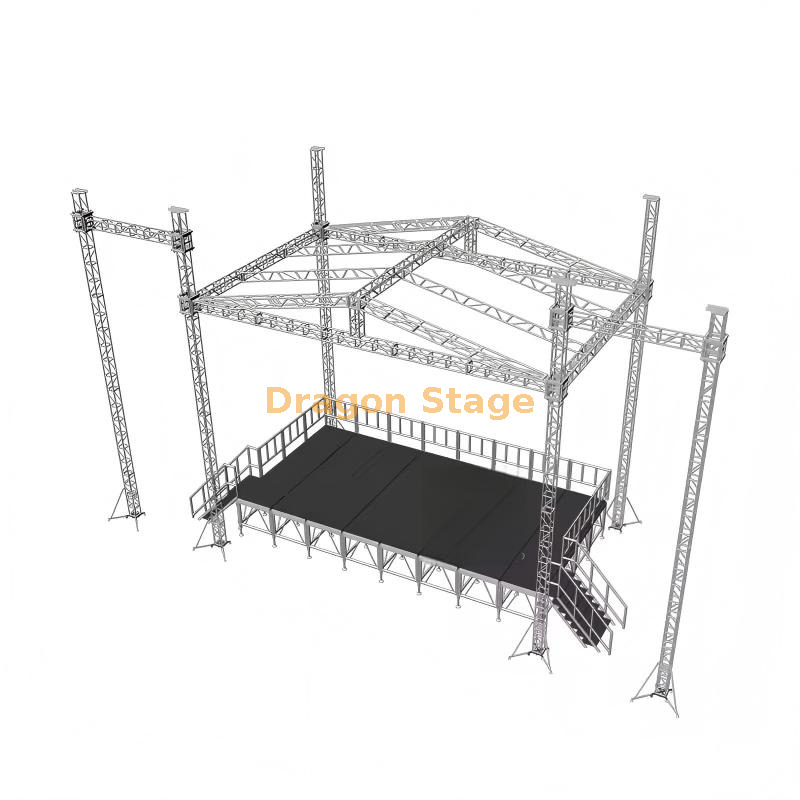

Application in Stage and Truss Systems
In practical use, 6061-T6 is commonly used for:
6082-T6 is more suitable for:
If the project involves higher loads or stricter safety requirements, 6082-T6 is usually the better option.
Conclusion
6061-T6 and 6082-T6 are both reliable structural aluminum alloys, but they are not identical in application.
The final choice should depend on:
load requirement
structure type
safety margin
—not just the material name.
FAQ
Which is stronger, 6061-T6 or 6082-T6?
6082-T6 has higher yield strength and is preferred for heavier structural applications.
Is 6061-T6 suitable for stage platforms?
Yes. It is widely used in stage platform systems.
Why is 6082-T6 used in roof truss structures?
Because it offers higher load-bearing performance, especially in roof truss systems.
Why should extrusion data be used instead of sheet data?
Because structural systems use aluminum profiles, not plates. Using incorrect data can lead to errors in stage load calculation.
