BS400 Standard Round Tube Bolt-Connected Aluminum Truss Design for Lighting and Outdoor Roof Structures

Views: 12     Author: Site Editor     Publish Time: 2026-08-03      Origin: Site

Inquire

facebook sharing button
line sharing button
pinterest sharing button
twitter sharing button
linkedin sharing button
whatsapp sharing button
wechat sharing button
sharethis sharing button
BS400 Standard Round Tube Bolt-Connected Aluminum Truss Design for Lighting and Outdoor Roof Structures

Drawing Name

BS400 Standard Round Tube Bolt-Connected Aluminum Truss Design for Lighting and Outdoor Roof Structures

Drawing File Reference

Drawing Index

Drawing Index

Configuration

Length

4004

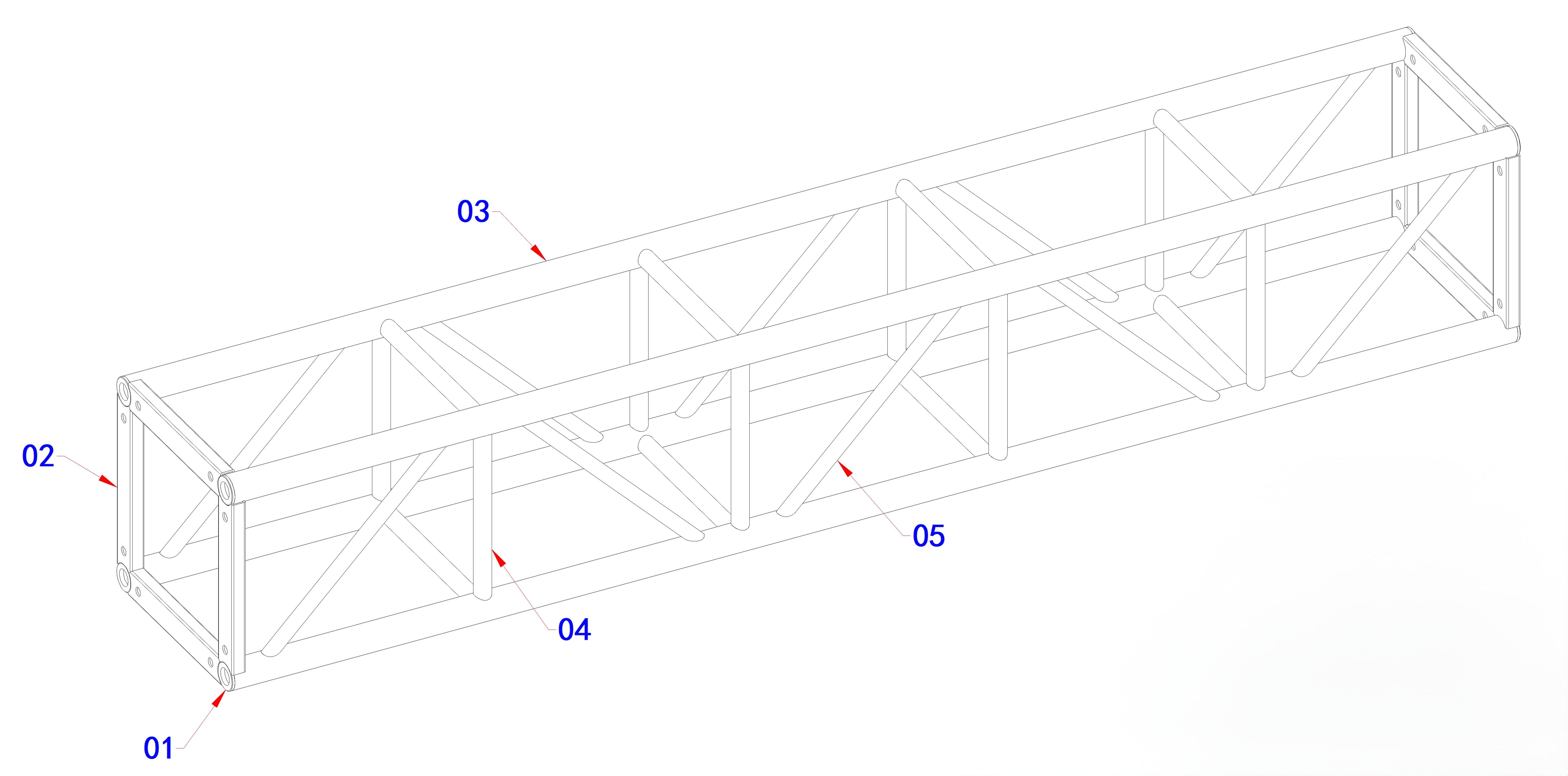

BS400 Standard Round Tube Bolt-Connected Truss

2.35m

4004

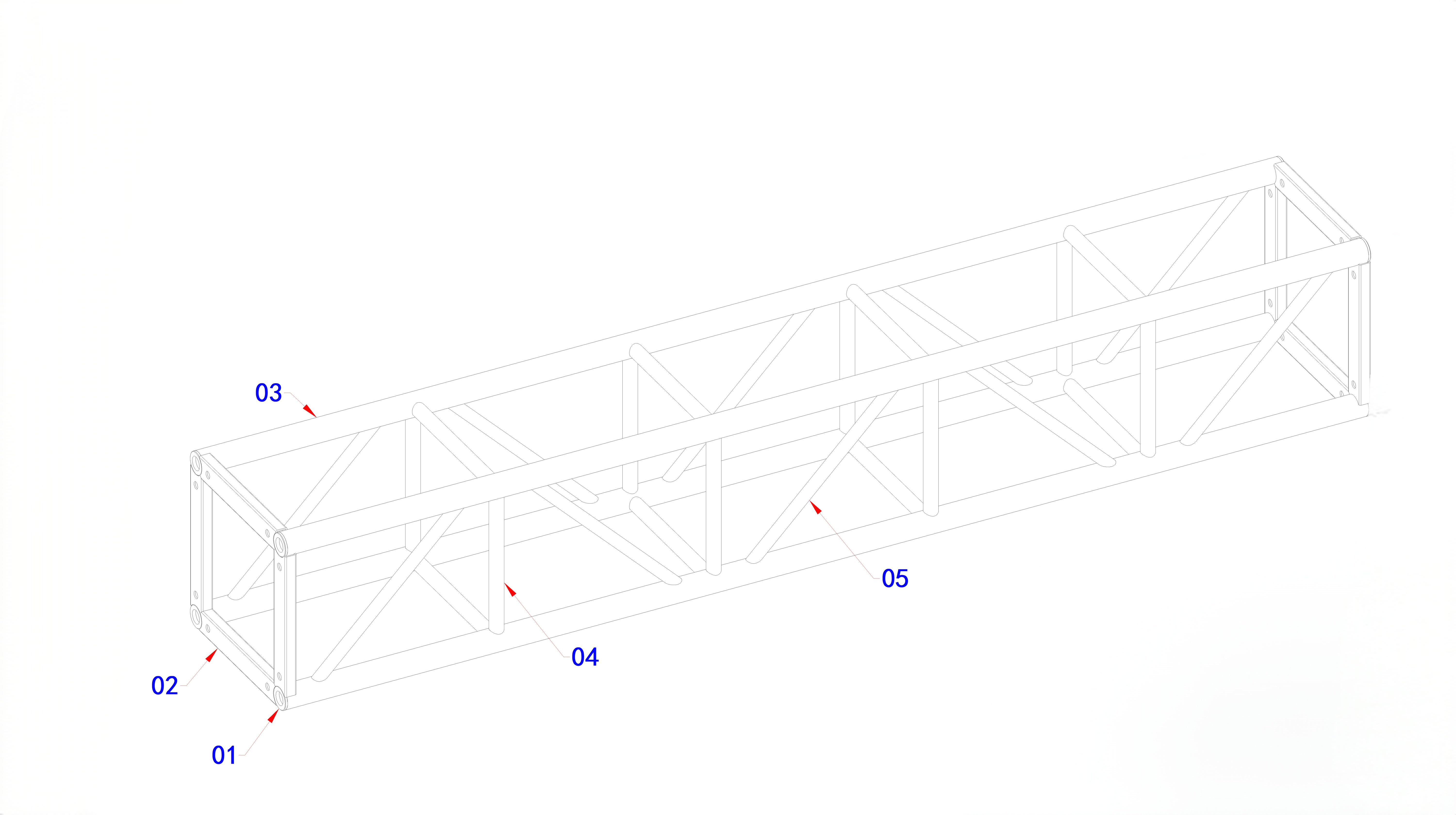

BS400 Standard Round Tube Bolt-Connected Truss

2.4m

4004

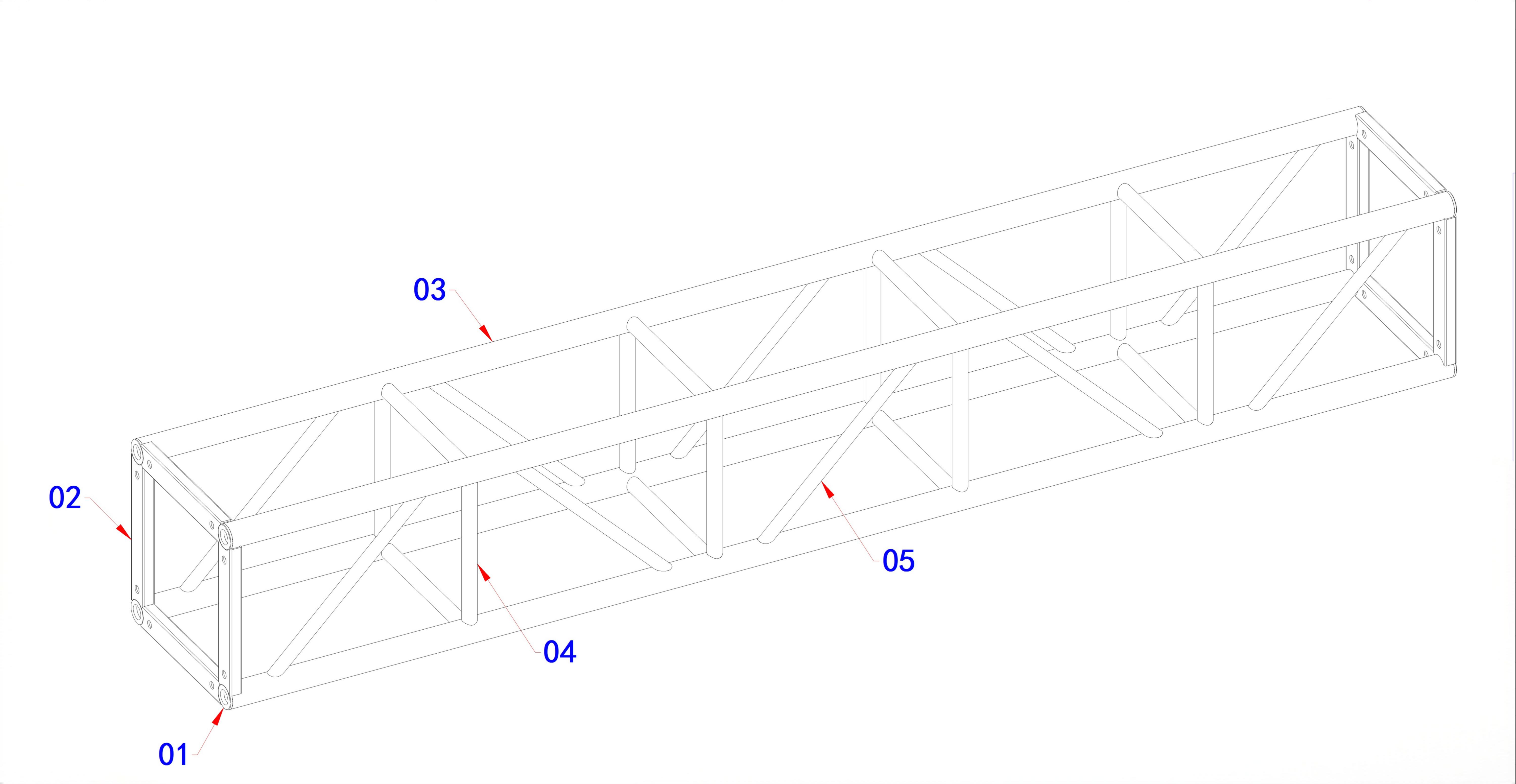

BS400 Standard Round Tube Bolt-Connected Truss

2.6m

4062

BS400 Aluminum Plate Bolt-Connected Truss Section

0.2m

4062

BS400 Aluminum Plate Bolt-Connected Truss Section

0.3m

4062

BS400 Aluminum Plate Bolt-Connected Truss Section

0.4m

4062

BS400 Aluminum Plate Bolt-Connected Truss Section

0.6m

4062

BS400 Aluminum Plate Bolt-Connected Truss Section

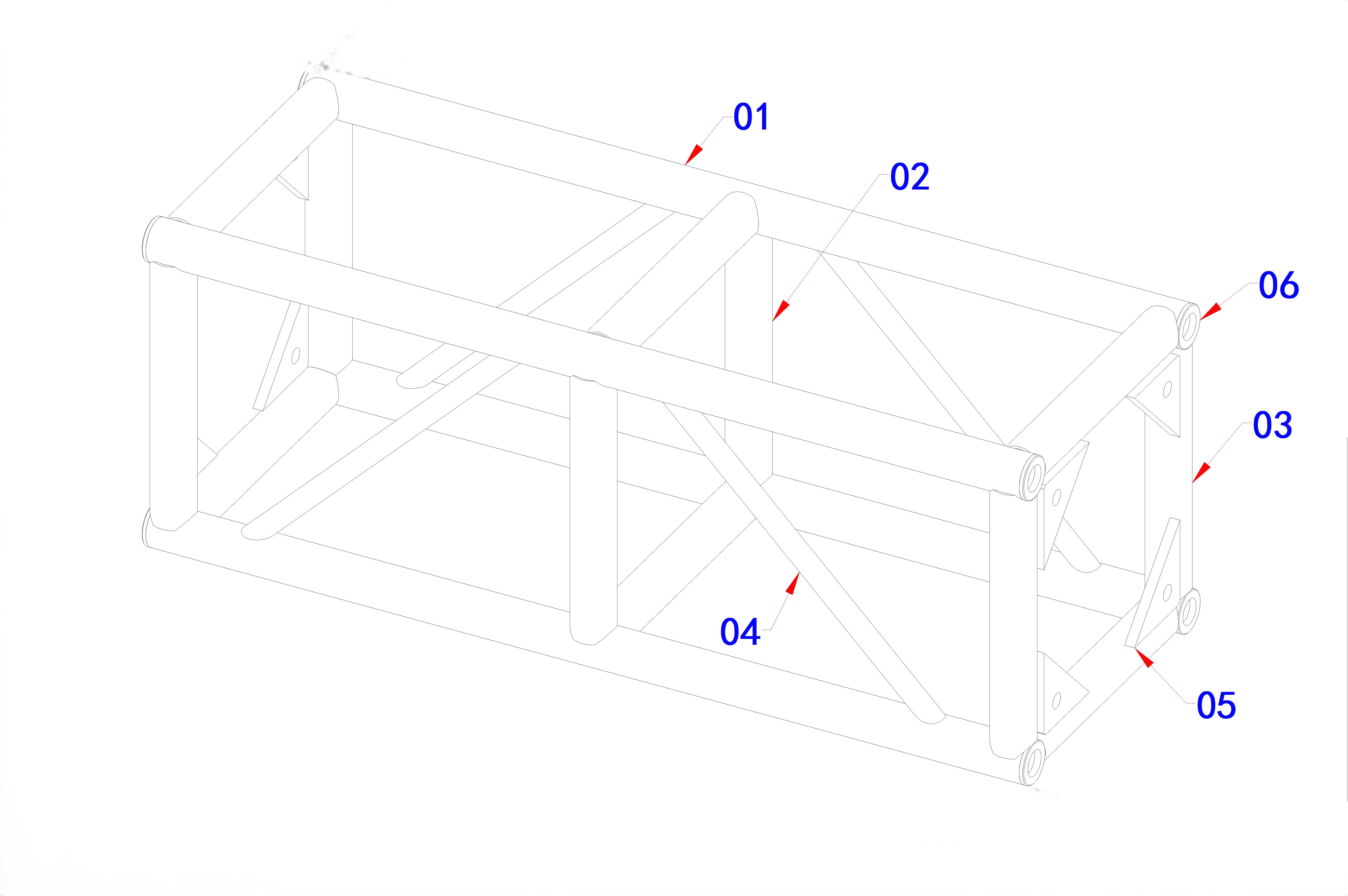

1.05m

3748

BS400 Standard Bolt-Connected Truss Section

1.05m


Drawing Information

Item

Details

Drawing Index

4004 / 4062 / 3748

Drawing Series

BS400 Round Tube Bolt-Connected Aluminum Truss

Structure Type

Standard Square Aluminum Truss Component

Application

Lighting Truss / Outdoor Roof Truss / Decorative Structure / Mechanical Support

Cross Section

Width 400mm × Height 400mm

Main Tube

50mm Aluminum Round Tube

Length

0.2m - 2.6m (Standard Configurations)

Environment

Indoor and Outdoor Application

Material

Aluminum Alloy

Connection System

Bolt Connection

Drawing Type

2D CAD Drawing

Design Purpose

Structural Components for Indoor & Outdoor Lighting Truss, Exhibition Structures and Temporary Roof Truss Systems

BS400 Standard Bolt-Connected Aluminum Truss Design Overview

The BS400 aluminum bolt-connected truss system is a medium-large size modular truss structure designed for applications requiring higher rigidity, longer spans and stronger structural performance compared with smaller truss systems.

The system adopts a 400mm × 400mm square truss section with 50mm aluminum round tube main chords and bolt-connected joints.

The BS400 series is commonly used for:

  • Large lighting truss structures;

  • Outdoor roof truss systems;

  • Exhibition structures;

  • Mechanical support frameworks;

  • Event and temporary structures.

The modular bolt connection design allows the truss sections to be assembled into different lengths and configurations according to project requirements.


Structural Components

The BS400 bolt-connected aluminum truss consists of:

Component

Description

Main Chords

50mm aluminum round tubes providing the primary load-bearing structure

Vertical Bracing

Vertical support members improving structural stability

Diagonal Bracing

Diagonal members forming triangular load-transfer structures

End Plates

Aluminum connection plates for bolt assembly

Bolt Joint System

Detachable connection system for modular installation

Available Drawing Configuration

Drawing Index

Length / Configuration

Section Size

Main Tube

Connection Type

4004

2.35m Standard Truss Section

400mm × 400mm

50mm Aluminum Round Tube

Bolt Connection

4004

2.4m Standard Truss Section

400mm × 400mm

50mm Aluminum Round Tube

Bolt Connection

4004

2.6m Standard Truss Section

400mm × 400mm

50mm Aluminum Round Tube

Bolt Connection

4062

0.2m Short Connector Section

400mm × 400mm

50mm Aluminum Round Tube

Bolt Connection

4062

0.3m Short Connector Section

400mm × 400mm

50mm Aluminum Round Tube

Bolt Connection

4062

0.4m Short Connector Section

400mm × 400mm

50mm Aluminum Round Tube

Bolt Connection

4062

0.6m Short Connector Section

400mm × 400mm

50mm Aluminum Round Tube

Bolt Connection

4062

1.05m Standard Section

400mm × 400mm

50mm Aluminum Round Tube

Bolt Connection

3748

1.05m Standard Section

400mm × 400mm

50mm Aluminum Round Tube

Bolt Connection

Application

Lighting Truss Structures

The BS400 system is suitable for:

  • Large event lighting bridges;

  • Concert lighting structures;

  • Exhibition lighting frameworks;

  • Fixed and temporary lighting installations.

Compared with smaller truss systems, the larger 400mm × 400mm cross-section provides improved stiffness and better load distribution for larger lighting equipment.

Related products:

Lighting Truss Systems


Outdoor Roof Truss Structures

BS400 can be used as a structural component for:

  • Outdoor event roofs;

  • Festival canopy structures;

  • Temporary performance structures;

  • Exhibition roof systems.

For outdoor applications, the complete structure needs to consider:

  • Wind load;

  • Roof covering material;

  • Span length;

  • Support conditions;

  • Foundation design.

Related engineering reference:

Engineering Solution

Exhibition and Decorative Structures

Typical applications include:

  • Exhibition booths;

  • Commercial display structures;

  • Brand activation frameworks;

  • Decorative aluminum structures.

Related application:

Exhibition Booth

Connection System

The BS400 uses a bolt-connected aluminum truss system.

Advantages:

Modular Installation

Different lengths can be connected together to create customized structures.

Easy Transportation

The detachable structure reduces shipping volume and improves logistics efficiency.

Reusable Design

Components can be reused for different events and temporary structures.

Compared with spigot-connected systems, bolt-connected trusses provide strong mechanical connection and are commonly selected for applications requiring repeated installation and customized configurations.

Engineering Considerations

The BS400 truss is a standard structural component. The final structural capacity depends on:

  • Overall span;

  • Applied load;

  • Equipment weight;

  • Installation method;

  • Environmental conditions.

For outdoor roof structures, wind load is one of the most important design factors. The complete system should be evaluated according to project requirements.

Related knowledge:

Safety Standards and Engineering Constraints for Temporary Structures

Related Products

The BS400 aluminum bolt-connected truss can be integrated with:

  • Lighting Truss Systems;

  • Outdoor Roof Structures;

  • Exhibition Truss Systems;

  • Event Structures;

  • Customized Aluminum Frameworks.

Related categories:

Custom Truss

Custom Stage Production

Connection Material System

FAQ

1. What is BS400 aluminum truss used for?

BS400 aluminum truss is mainly used for lighting structures, outdoor roof trusses, exhibition frameworks and temporary event structures requiring higher rigidity.

2. What is the size of BS400 truss?

The BS400 truss has a square cross-section of 400mm × 400mm with 50mm aluminum round tube main chords.

3. What is the difference between BS350 and BS400 truss?

The main difference is the cross-section size.

BS400 has a larger 400mm × 400mm structure, providing higher rigidity and better suitability for larger spans and heavier applications compared with BS350.

4. Can BS400 truss be used for outdoor roof systems?

Yes. BS400 can be used as a component of outdoor roof truss structures. However, the final design should consider wind load, roof material, span and supporting conditions.

5. Can BS400 truss lengths be customized?

Yes. Standard lengths are available, and customized lengths or special connection sections can be manufactured according to project requirements.

Design Notice

The drawings shown in this archive represent Dragon Stage's standard BS400 bolt-connected aluminum truss design capability.

Actual structural applications should be evaluated according to project requirements, loading conditions, installation environment and applicable safety requirements.

The BS400 system provides a flexible solution for professional lighting structures, exhibition frameworks and outdoor temporary structures.
