4014-BS300 Standard Round Tube Bolt-Connected Aluminum Truss Design for Lighting and Exhibition Structures
Drawing File Reference
Drawing Index
4014 / 4144 / 4173 / 4215 / 4246 / 4263
Related Drawing File
Drawing Index
Configuration
Length

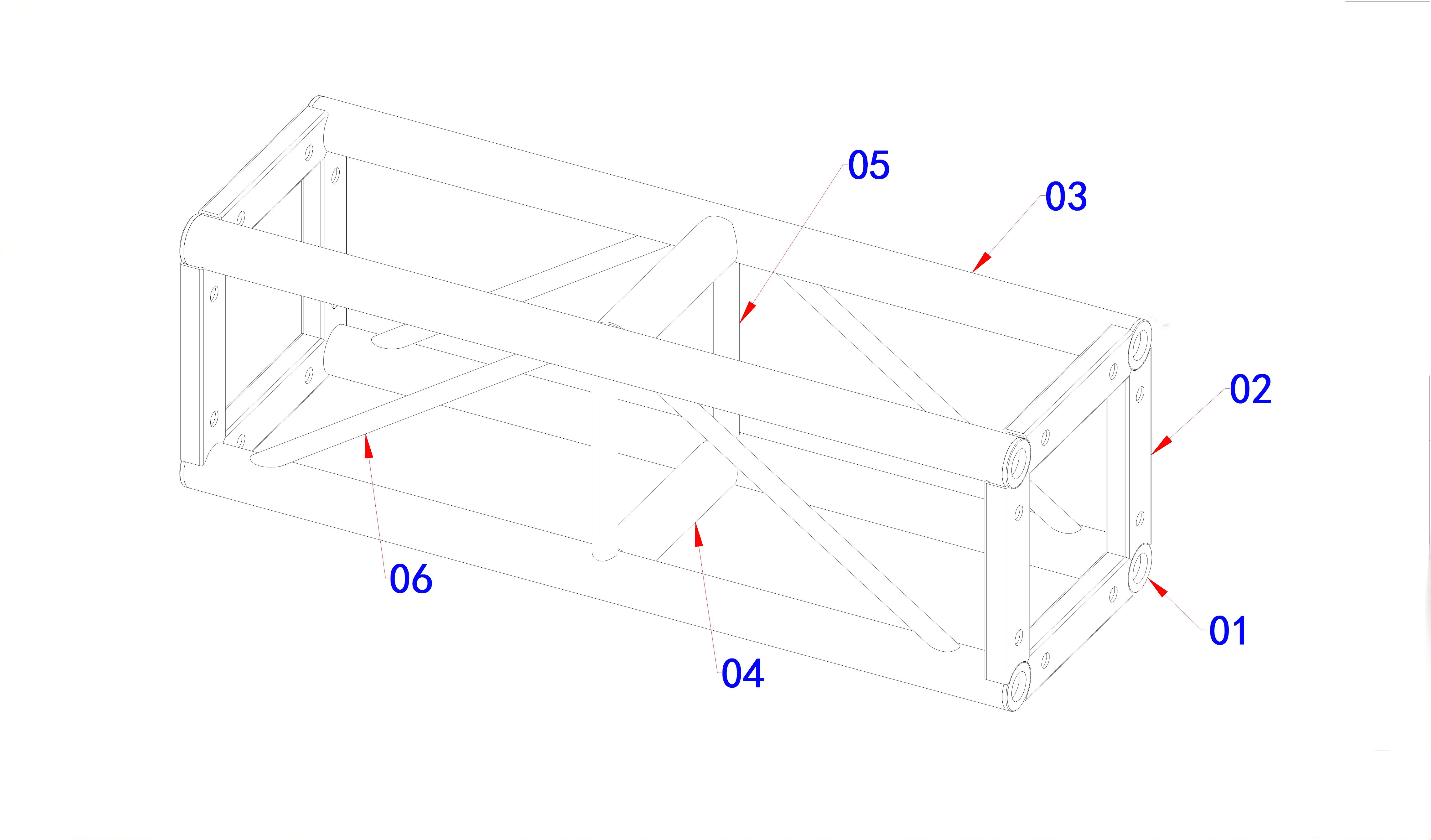

4014
BS300 Standard Section
0.6m
4014
BS300 Standard Section
0.9m

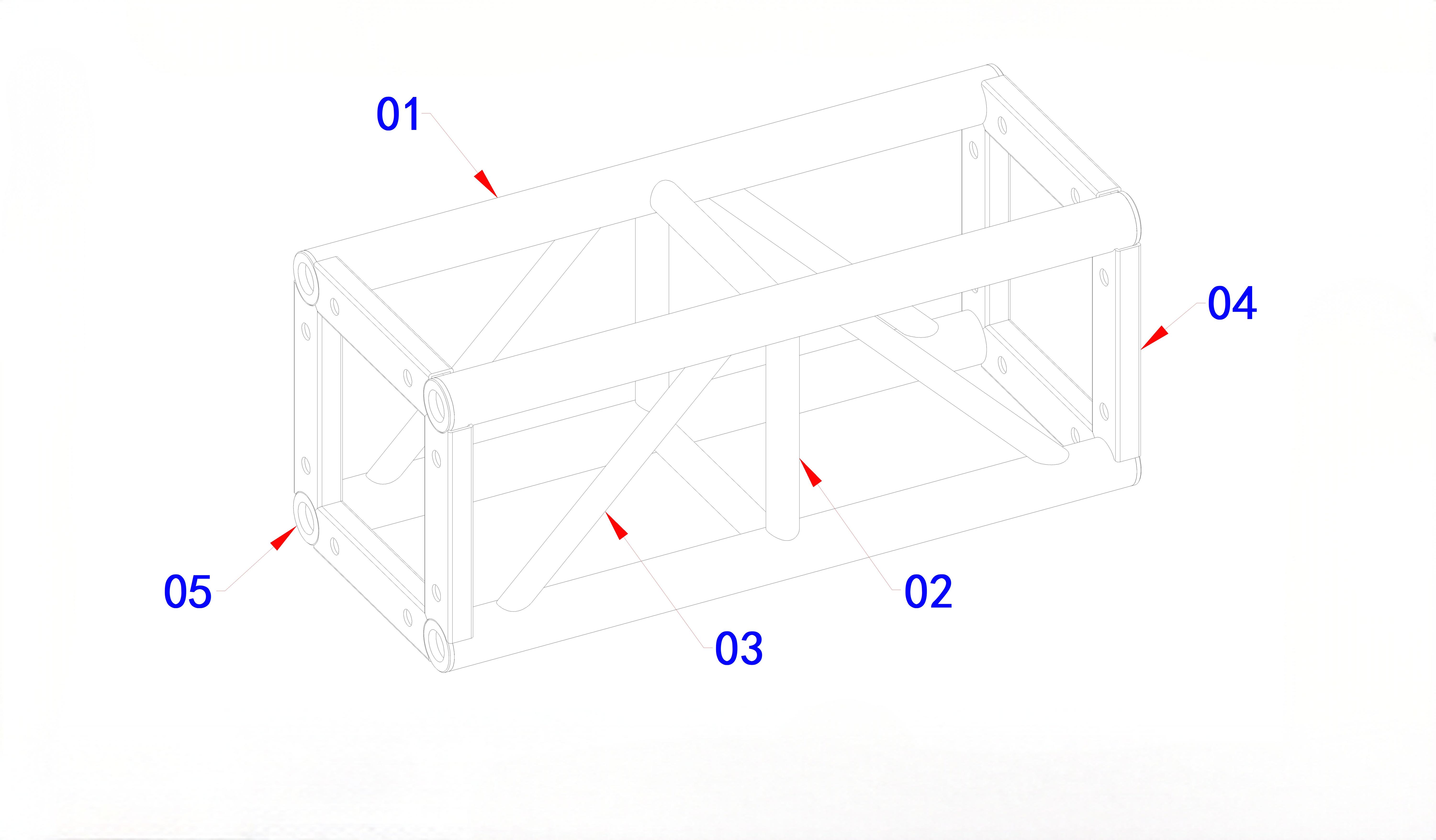

4144
BS300 Standard Section
0.7m

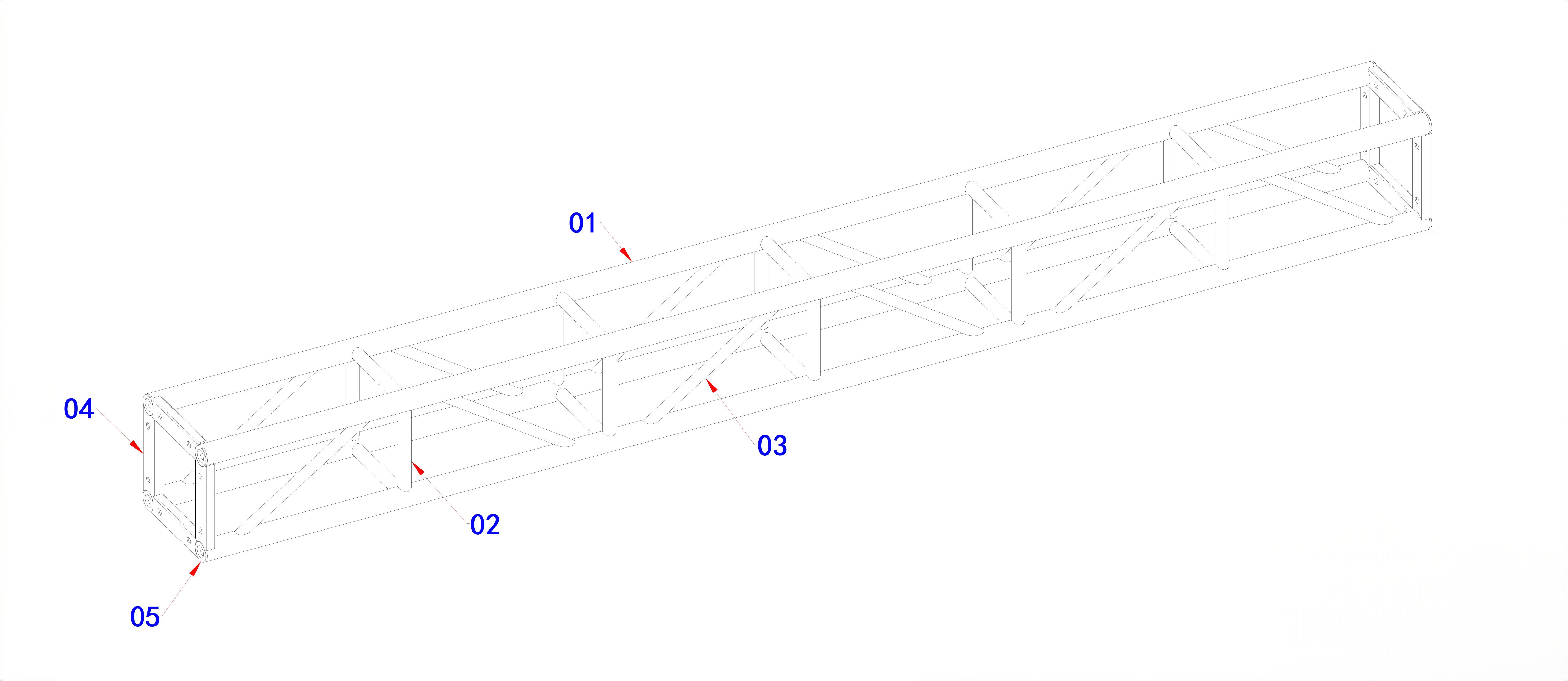

4173
BS300 Standard Section
3.1m

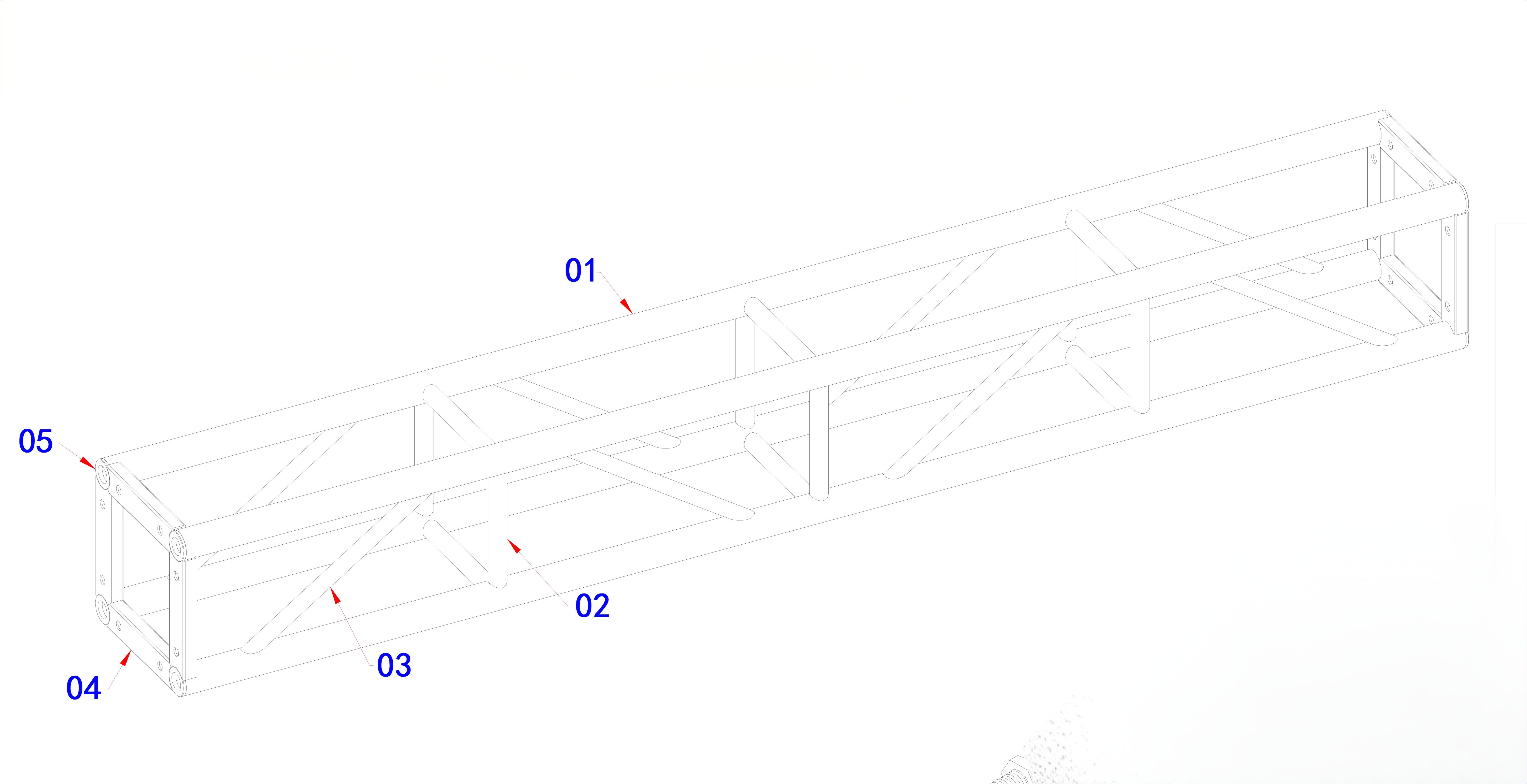

4215
BS300 Standard Section
2.3m
4246
BS300 Standard Section
1.75m
4263
BS300 Standard Section
2.2m
The above drawings represent standard BS300 round tube bolt-connected aluminum truss components designed for indoor and outdoor lighting structures, exhibition frameworks, decorative structures and mechanical support applications.
The drawing index is used as a reference for locating related CAD drawings, production records and standard truss configurations.
Drawing Information
Item
Details
Drawing Index
4014 / 4144 / 4173 / 4215 / 4246 / 4263
Drawing Series
BS300 Round Tube Bolt-Connected Aluminum Truss
Structure Type
Standard Aluminum Truss Component
Application
Lighting Truss / Decorative Structure / Mechanical Support Structure
Cross Section
Width 300mm × Height 300mm
Main Tube
50mm Aluminum Round Tube
Length
0.6m - 3.1m (Available Configurations)
Environment
Indoor and Outdoor Application
Material
Aluminum Alloy
Connection System
Bolt Connection
Drawing Type
2D CAD Drawing
Design Purpose
Structural Components for Indoor and Outdoor Lighting and Exhibition Structures
4014-BS300 Standard Bolt Truss Design for Lighting and Exhibition Structures
Introduction
This drawing archive presents the BS300 standard round tube bolt-connected aluminum truss components developed for lighting structures, decorative frameworks, exhibition installations and mechanical support structures.
The drawings are indexed under references 4014, 4144, 4173, 4215, 4246 and 4263, covering different standard lengths from 0.6m to 3.1m.
The BS300 series adopts a 300mm × 300mm square truss structure with 50mm aluminum round tube main chords. The bolt-connected design allows the truss components to be assembled, disassembled and reused, providing flexibility for temporary structures and customized installations.
This type of aluminum truss is widely used for indoor and outdoor lighting systems, exhibition displays, entertainment venues, bars and mechanical equipment support structures.
Design Overview
The BS300 round tube bolt-connected truss adopts a modular structural design.
Main structural components include:
50mm aluminum round tube main chords;
Aluminum diagonal bracing tubes;
Aluminum end plates;
Bolt-connected assembly system.
Compared with welded permanent structures, bolt-connected truss systems provide advantages in:
Transportation efficiency;
Storage convenience;
Flexible assembly;
Reusable structure configuration;
Customized length selection.
The 300mm × 300mm cross-section provides a practical solution between structural performance and portability, making it suitable for various lighting and exhibition applications.
The connection method is an important factor when selecting temporary structure components. Different connection systems, such as spigot connection, bolt connection and plate connection, are selected according to application requirements.
More information about truss connection methods can be found in:
For lighting and exhibition structures, the BS300 truss component is only one part of the complete system.
The final structural configuration depends on:
Overall span;
Lighting equipment weight;
Supporting method;
Installation environment;
Outdoor weather conditions.
For outdoor applications, additional considerations such as wind load, anchoring method and overall structural stability should be evaluated according to project requirements.
Aluminum alloy is widely used in event structures because of its:
For future purchasing applications, this drawing archive can be connected with:
BS300 Round Tube Bolt-Connected Aluminum Truss
Possible product configurations:
BS300 Bolt Truss × 0.6m
BS300 Bolt Truss × 0.7m
BS300 Bolt Truss × 0.9m
BS300 Bolt Truss × 1.75m
BS300 Bolt Truss × 2.2m
BS300 Bolt Truss × 2.3m
BS300 Bolt Truss × 3.1m
Related applications:
Lighting Truss Structures;
Exhibition Frameworks;
Decorative Structures;
Mechanical Support Structures.
The drawing archive demonstrates Dragon Stage's standard manufacturing capability and modular truss system design experience, while product pages provide purchasing information and specifications.
FAQ
1. What is the BS300 bolt-connected truss mainly used for?
The BS300 bolt-connected aluminum truss is mainly used for lighting structures, exhibition frameworks, decorative installations and mechanical support structures.
2. What is the size of the BS300 truss?
The BS300 truss has a square cross-section of 300mm × 300mm with 50mm aluminum round tube main chords.
3. What lengths are available for this BS300 truss series?
This drawing archive includes standard lengths from 0.6m to 3.1m. Customized lengths can also be manufactured according to project requirements.
4. Why choose bolt-connected truss for lighting structures?
Bolt-connected truss provides convenient transportation, easy installation and reusable structural solutions compared with permanent welded structures.
5. Can BS300 truss be used for outdoor applications?
Yes. The aluminum structure can be used outdoors, but the final application should consider environmental conditions, equipment loading and structural requirements.
Design Notice
The drawings shown in this archive are provided for reference purposes to demonstrate Dragon Stage's standard and customized truss design capability.
Final structural selection should be confirmed according to actual project requirements, loading conditions, installation environment and applicable safety requirements.
