Mainly Indoor Application (Bars, Entertainment Venues, Lighting Structures)
Material
Aluminum Alloy
Connection System
Bolt Connection with Connection Plates
Drawing Type
2D CAD Drawing
Design Purpose
Structural components for indoor bar lighting systems, mechanical truss structures and customized aluminum frameworks
BS400 Bolt-Connected Aluminum Truss Overview
The BS400 aluminum bolt-connected truss system with connection plates is designed for indoor entertainment structures, especially bar lighting systems, mechanical support structures and customized event frameworks.
The system adopts a 400mm × 400mm square truss profile with 50mm aluminum round tube main chords. Additional aluminum connection plates are integrated into some configurations to provide flexible connection points for customized structures.
The bolt-connected design allows the truss sections to be assembled, dismantled and reused for different applications.
Main Features
Modular Bolt Connection
The BS400 system uses mechanical bolt connections instead of permanent welding joints.
Advantages:
Easy installation and dismantling;
Suitable for customized structures;
Convenient transportation and storage;
Reusable for different projects.
Connection Plate Design
Some BS400 configurations include additional aluminum plates.
The connection plates provide:
Additional fixing points;
Customized structural connections;
Improved adaptability for special applications;
Easier integration with mechanical equipment or lighting accessories.
Structural Components
Component
Description
Main Chords
50mm aluminum round tubes forming the primary structural frame
Vertical Members
Vertical supports maintaining truss geometry
Diagonal Bracing
Triangular bracing system improving stability
Connection Plates
Aluminum plates for customized structural connections
Bolt Joint System
Mechanical detachable connection system
Available Drawing Configuration
Drawing Index
Length / Configuration
Section Size
Main Tube
Connection Type

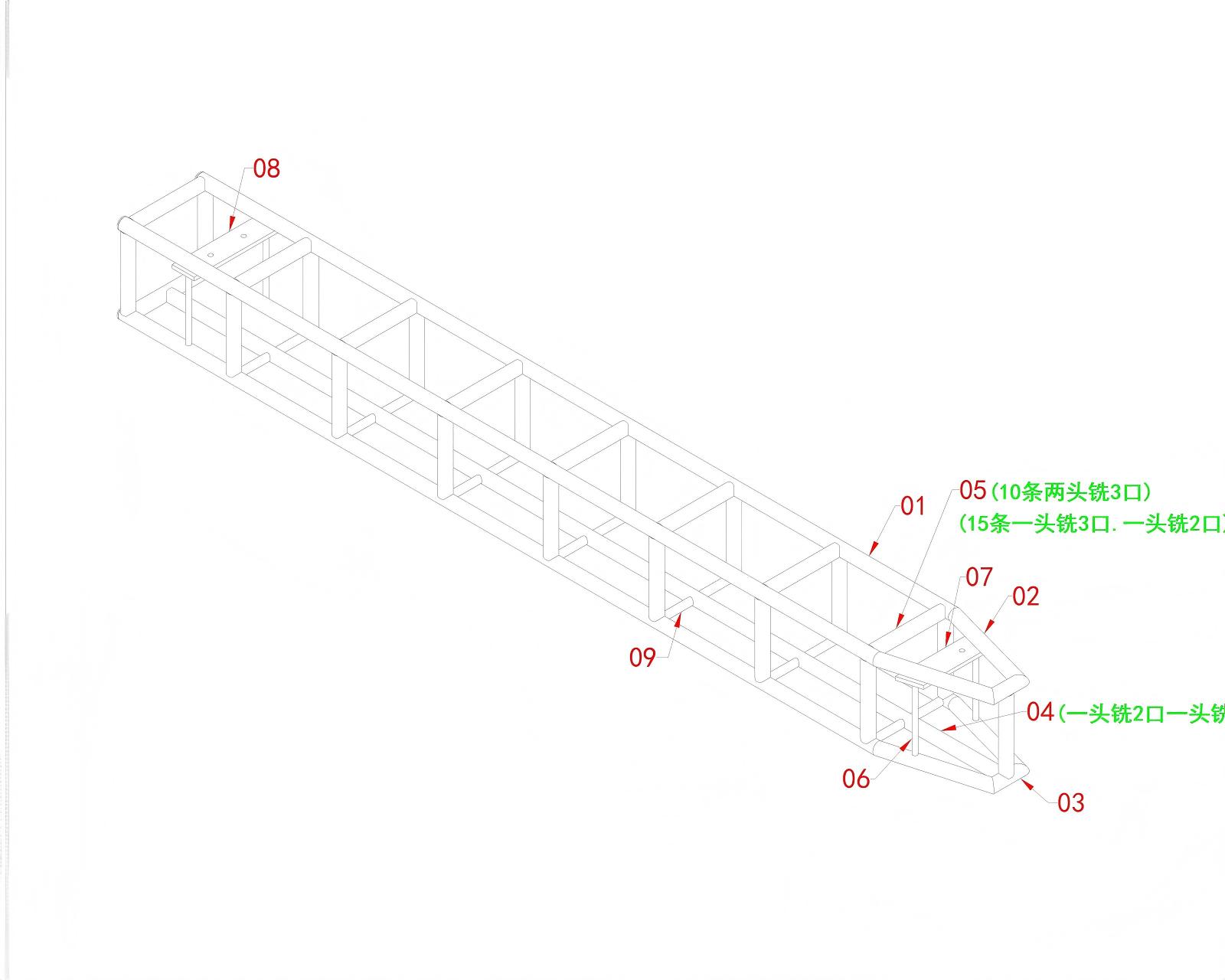

3462
Square Lighting Truss with Connection Plates
400mm × 400mm × 3860mm
50mm Aluminum Round Tube
Bolt Connection + Plates

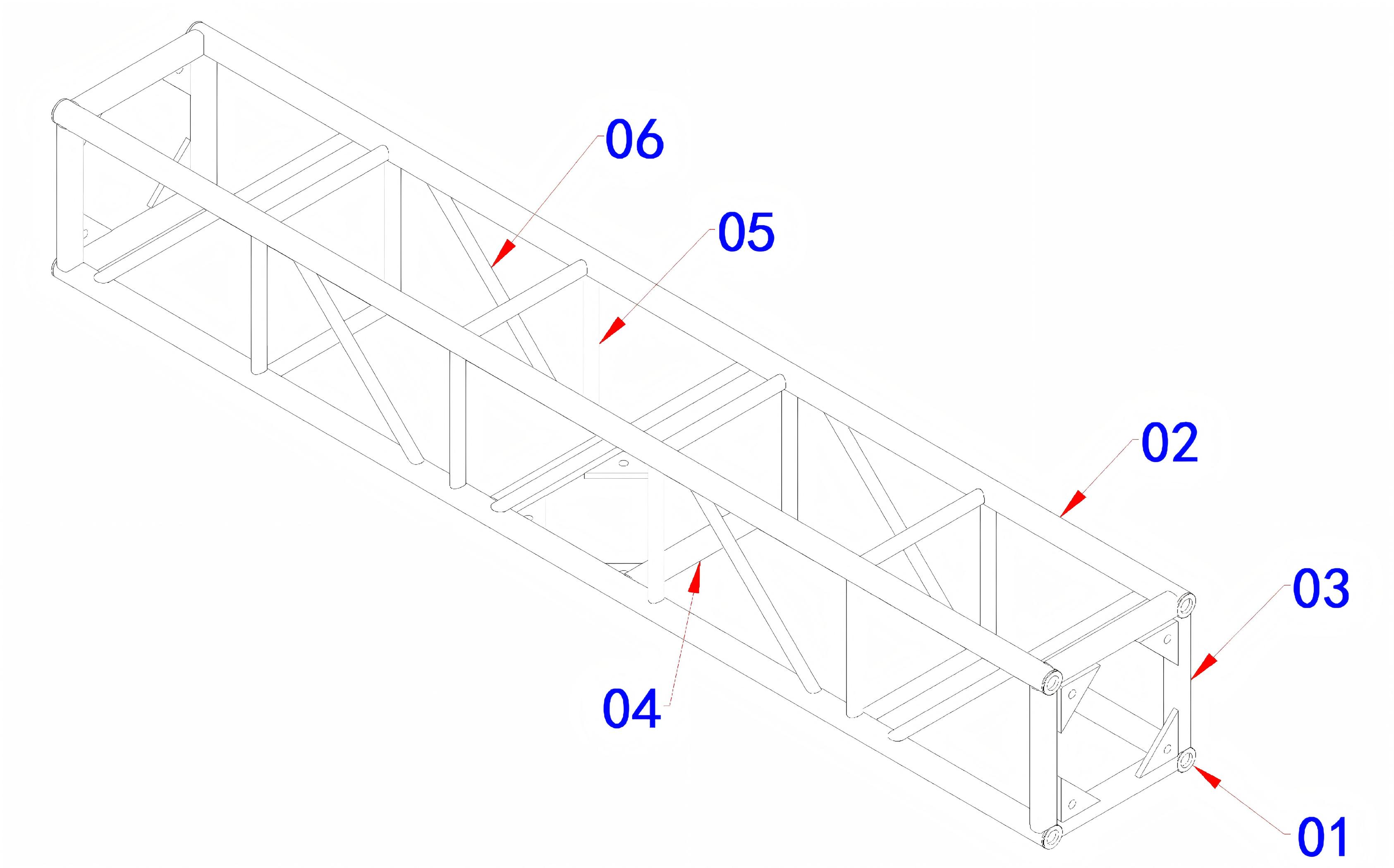

3692
Standard BS400 Truss Section
400mm × 400mm × 2600mm
50mm Aluminum Round Tube
Bolt Connection

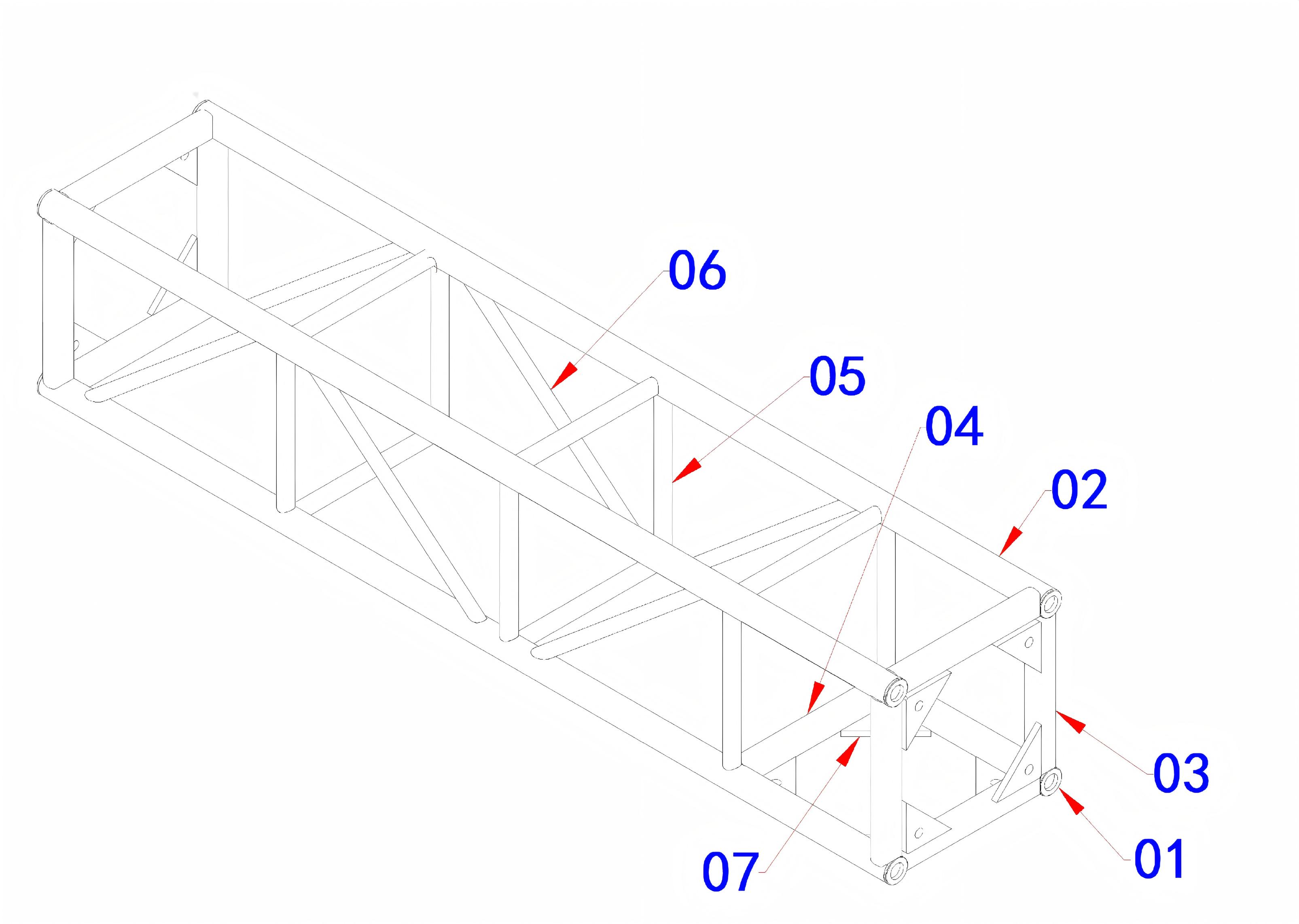

3718
Standard BS400 Truss Section
400mm × 400mm × 1930mm
50mm Aluminum Round Tube
Bolt Connection
4004
Standard BS400 Truss Section
400mm × 400mm × 1100mm
50mm Aluminum Round Tube
Bolt Connection

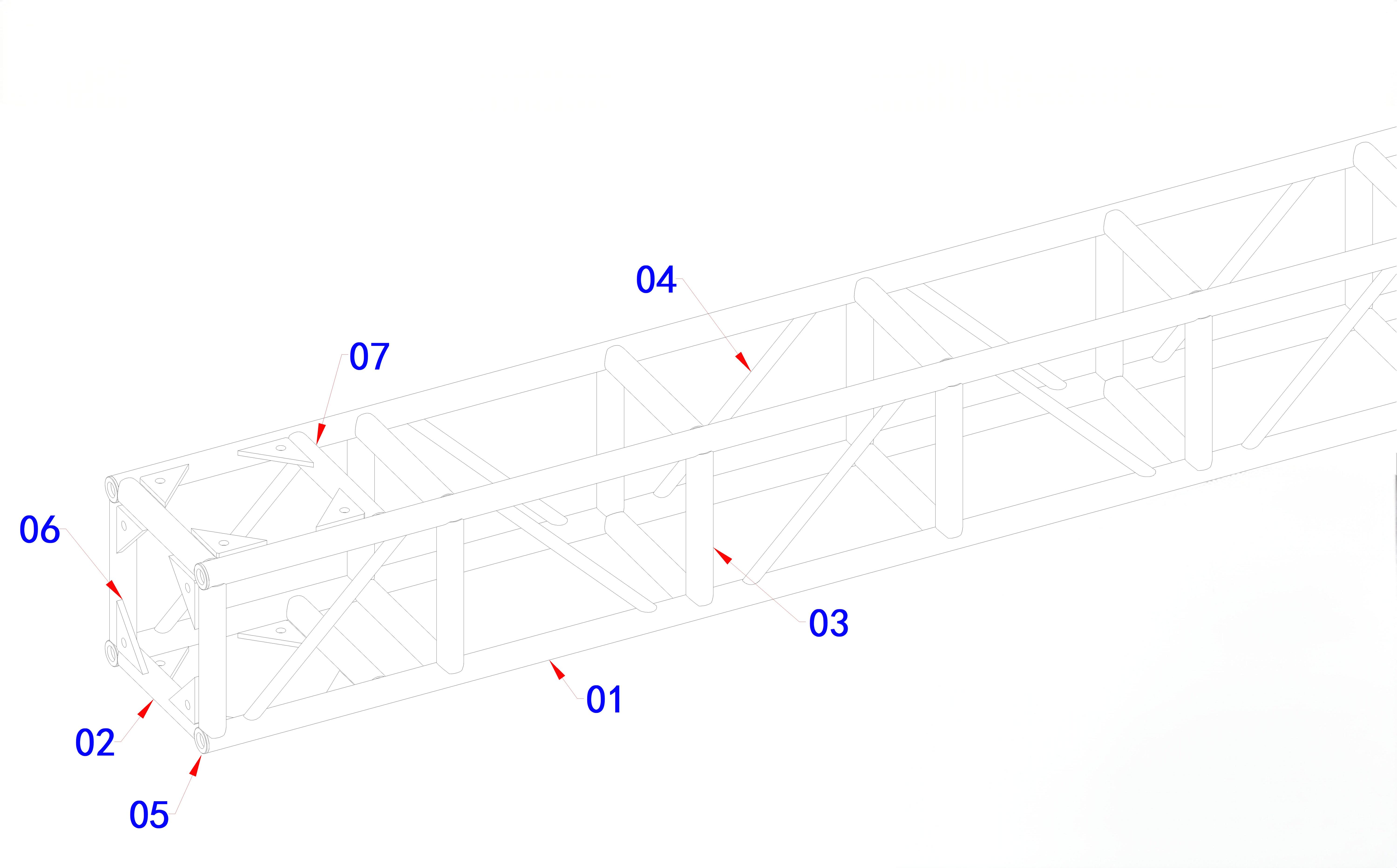

4200
BS400 Truss with Additional Plate Structure
400mm × 400mm × 3100mm
50mm Aluminum Round Tube
Bolt Connection + Plates
Application
Indoor Bar Lighting Structures
The BS400 system is suitable for:
Bar lighting frameworks;
Entertainment venue decoration structures;
DJ booth supporting structures;
Customized lighting installations.
Its modular design allows designers to create different shapes and layouts according to venue requirements.
BS400 aluminum truss is mainly used for indoor lighting structures, bar mechanical frameworks, entertainment installations and customized aluminum structures.
2. What is the size of BS400 truss?
The BS400 truss has a square cross-section of 400mm × 400mm and uses 50mm aluminum round tube main chords.
3. Does BS400 truss support customized designs?
Yes. The bolt-connected structure and optional connection plates make BS400 suitable for customized structures according to different installation requirements.
4. What is the advantage of bolt-connected truss compared with welded truss?
Bolt-connected truss can be dismantled, transported and reused more easily, making it suitable for temporary structures and customized installations.
5. Can BS400 truss be used outdoors?
BS400 can be used for some outdoor applications, but outdoor structures need additional consideration of wind load, environmental conditions and overall structural design.
Design Notice
The drawings shown represent standard BS400 bolt-connected aluminum truss designs.
Actual applications should be evaluated according to project requirements, loading conditions and installation environment.
The BS400 system provides a flexible structural solution for professional lighting systems, bar installations and customized aluminum truss frameworks.
