packing weight: 1700kg
packing volume: 12.5cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 10.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | BS300×300 | 6pcs |
| 2.00 m | 50×3.0 | BS300×300 | 0pcs |
| 1.00 m | 50×3.0 | BS300×300 | 2pcs |
| 6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | BS300×300 | 4pcs |
| 2.00 m | 50×3.0 | BS300×300 | 0pcs |
| 1.00 m | 50×3.0 | BS300×300 | 0pcs |
| 5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | BS300×300 | 4pcs |
| 2.00 m | 50×3.0 | BS300×300 | 4pcs |
| 1.00 m | 50×3.0 | BS300×300 | 0pcs |
| beam cube | cube 300x300 | 0pcs |
| Frame Tower | Bolt Truss Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.00 m | 50×3.0 | BS300×300 | 2pcs |
| 6.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | BS300×300 | 2pcs |
| 2.00 m | 50×3.0 | BS300×300 | 0pcs |
| 1.00 m | 50×3.0 | BS300×300 | 0pcs |
| 5.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | BS300×300 | 4pcs |
| 2.00 m | 50×3.0 | BS300×300 | 0pcs |
| 2.20 m | 50×3.0 | BS300×300 | 4pcs |
| 5.20 m Ladder truss | 4 sets | 3.00 m | 50×3.0 | BL30,300*50 | 4pcs |
| 2.00 m | 50×3.0 | BL30,300*50 | 0pcs |
| 2.20 m | 50×3.0 | BL30,300*50 | 4pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | BS300×300 | 2pcs |
| roof conner 5 ways, use for roof beam truss | BS300×300 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 8pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 126.16 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | BS300×300 | 0pcs |
| 2.00 m | 50×3.0 | BS300×300 | 2pcs |
| 1.00 m | 50×3.0 | BS300×300 | 0pcs |
| 5.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | BS300×300 | 2pcs |
| 2.00 m | 50×3.0 | BS300×300 | 2pcs |
| 1.00 m | 50×3.0 | BS300×300 | 0pcs |
| Wings Tower | Bolt Truss Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Screw Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |

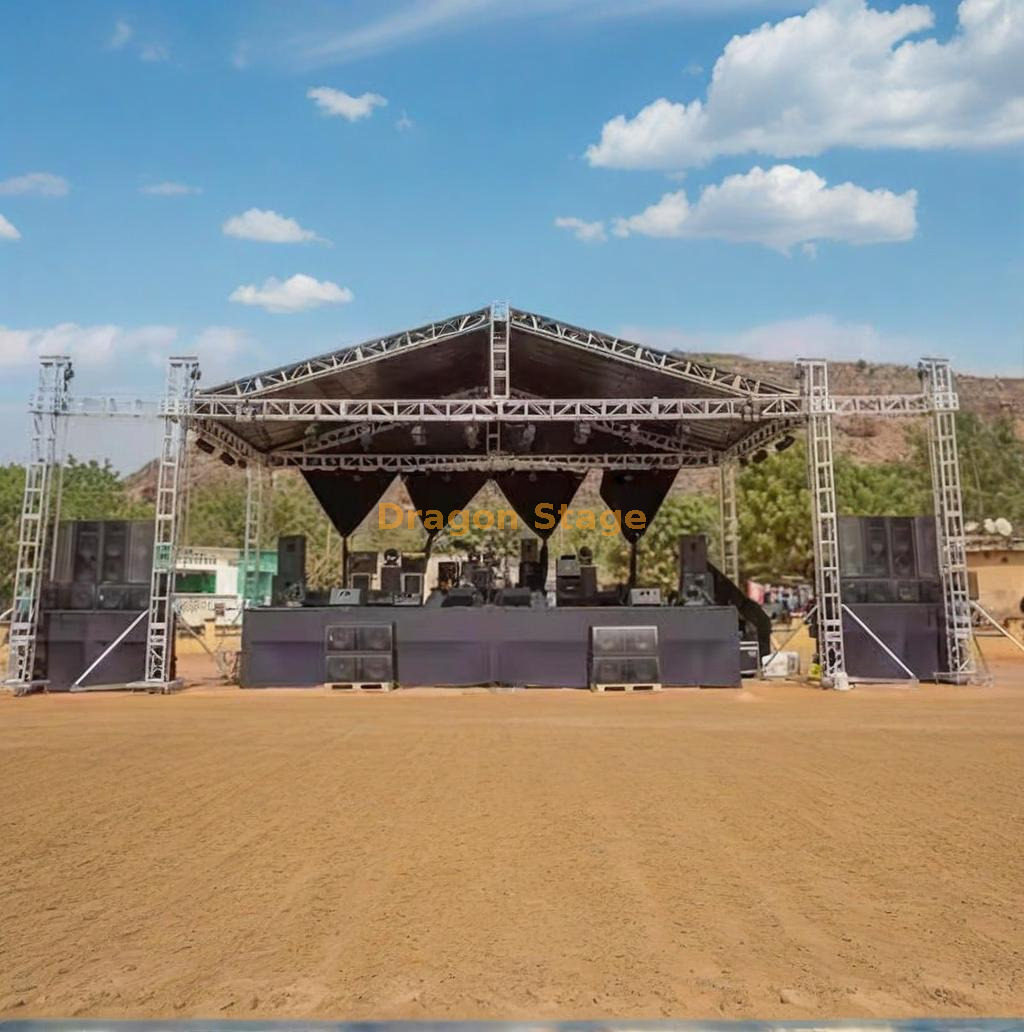

Aluminum Bolt Truss Stage: Heavy-Duty Frame for Music Festival Outdoor (10m x 6m x 6m)
Introduction: The Backbone of Your Outdoor Production
The Dragon Stage Aluminum Bolt Truss Stage offers a robust and reliable overhead solution perfect for medium-sized outdoor events. Specifically designed as an outdoor concert stage truss system 6m height, this structure provides an ideal framework measuring 10m long x 6m wide x 6m high. Utilizing the strong and secure bolt connection system, this truss structure is the go-to choice for lighting designers and production managers who prioritize safety and heavy-duty performance for any Music Festival Outdoor application.
Challenges & Solutions for Open-Air Stage Rigging
Combining Load Capacity with Ease of Transport
A primary concern for outdoor festival stages is securing a large span that can support substantial weight while remaining portable.
The 10m span ground support truss structure successfully balances these demands:
Superior Stability: The bolt truss connection mechanism provides greater rigidity and shear strength compared to lighter spigot systems, making it a reliable heavy duty aluminum bolt truss solution for complex hanging loads like line arrays and video panels.
Optimized Dimensions: The 10m x 6m footprint is perfectly sized for main stages at small-to-mid-sized festivals, providing ample coverage without the logistical complexities of massive structures. The 6m height ensures excellent visual impact and necessary clearance.
Designed for Events: This is more than just a frame; it's a dedicated professional aluminum bolt truss frame system complete with all the necessary corner blocks, sleeve blocks, and base plates for rapid, ground-supported assembly.
Key Features & Structural Benefits for Production Managers
High-Strength Bolt Connection
The defining feature of this system is the aluminum bolt truss connection. Unlike quick-fit spigot systems, bolt trusses are highly favored for their durability and consistent load performance under stress, essential when rigging expensive lighting fixtures and heavy audio equipment. This ensures a secure, vibration-resistant environment for your production.
Essential Components Included
The 10x6x6m truss structure is a complete ground support system package. It includes:
Pillars: Vertical truss segments designed for 6m height.
Beams: Horizontal truss for the 10m width and 6m depth.
Tower Components: Sleeve Blocks and Hinged Sections, crucial for tilting and lifting the roof section safely.
Base Supports: Large Aluminum Baseplates and stabilizing outriggers ensure the structure maintains integrity against external forces.
This setup is ideal for any portable bolt truss stage for rental companies looking for a workhorse product.
Practical FAQ for Stage Professionals
Q: What is the primary advantage of a bolt truss for a music festival?
A: A bolt connection stage truss offers superior maximum load capacity and increased stability, especially crucial for outdoor environments where wind loads and high-stress hanging points (like LED screens) are major factors.
Q: Does the structure include chain hoists or lifting mechanisms?
A: Typically, the truss structure itself (frame, corner blocks, and bases) is sold separately from the lifting gear. Customers usually need to supply or purchase certified manual hoists or electric chain hoists tailored to the truss's specific lifting requirements.
Q: Is this system fully weatherproof?
A: The aluminum alloy truss is naturally corrosion-resistant. While the structure is built for outdoor use, the price is usually for the frame only. A dedicated PVC roof canopy is recommended and often purchased separately to provide weather protection for the equipment below.
Q: Can this 10x6m frame be expanded later?
A: Yes, one of the key benefits of a standard event truss structure 300mm series is its modularity. You can purchase additional matching aluminum square bolt truss segments and corner blocks to expand the length or add sound wings in the future.
