Aluminum Bolt Truss 300*300mm Frame Stage for Events 6.5x4x4m

5 0 Reviews

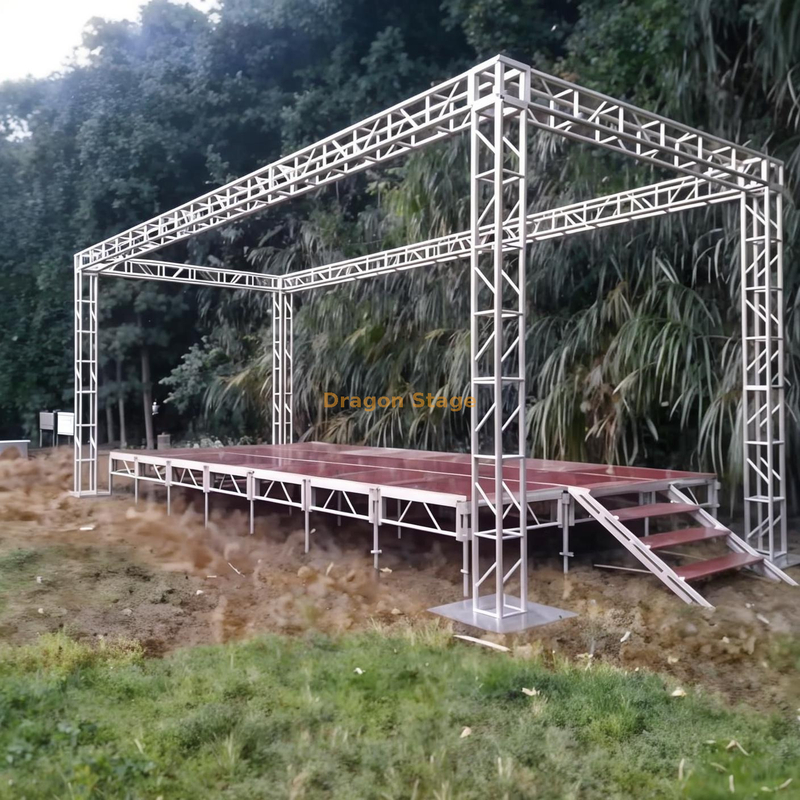

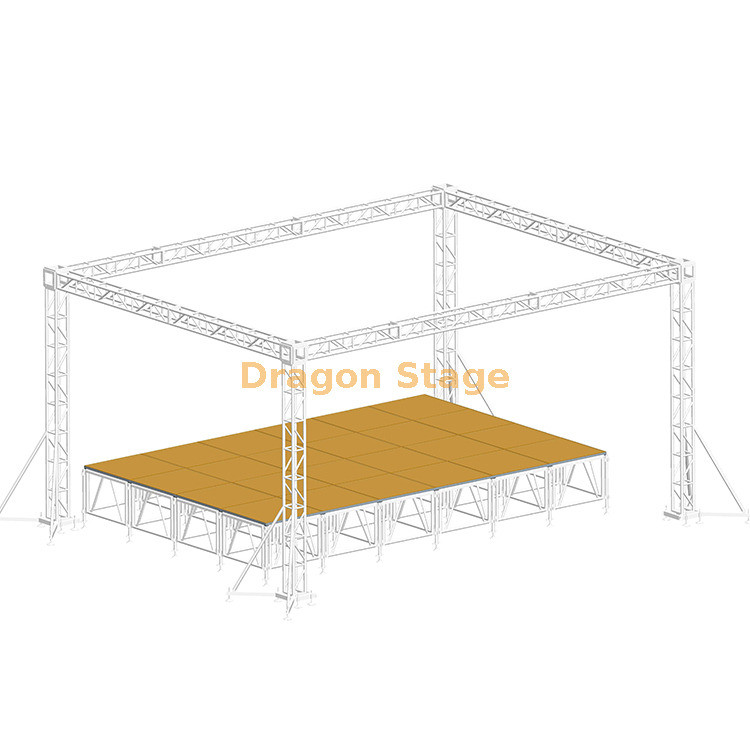

this is custom produced Aluminum Bolt Truss stage, it is made of 300*300mm bolt truss for Events

the overall sizes are 6.5m long and 4 deep and 4m high.

Price: ￥ 16650


Availability:



Inquire

Brand:
Dragon Stage

Product Description

Aluminum Bolt Truss 300300mm Frame Stage for Events 6.5x4x4m

packing weight:630kg

packing volume:6.5cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
6.50 m Beam(front)	2 sets	3.00 m	50×3.0	BS300×300	4pcs
		2.00 m	50×3.0	BS300×300	0pcs
		0.5 m	50×3.0	BS300×300	2pcs
4.00 m Beam(side)	2 sets	3.00 m	50×3.0	BS300×300	2pcs
		2.00 m	50×3.0	BS300×300	0pcs
		1.00 m	50×3.0	BS300×300	2pcs
3.00 m Pillar	4 sets	3.00 m	50x3.0	BS300×300	12pcs
		2.00 m	50x3.0	BS300×300	0pcs
		1.00 m	50x3.0	BS300×300	4pcs
beam cube	cube 300x300				4pcs
truss base	base 500x500mm				4pcs

This custom Aluminum Bolt Truss Stage utilizes a 300×300mm bolt truss (Model BS30A) as its core structure, designed for diverse event scenarios. With overall dimensions of Length 6.5m × Depth 4m × Height 4m, it offers the following advantages:

1.High Strength & Lightweight: The main structure uses internationally certified 6061-T2 aluminum alloy (SGS/TÜV/CE certified), delivering exceptional load capacity (500kg at a 4m span) alongside portability.
2.Modular Customization: Supports flexible combination and size adjustment to meet varied needs for concerts, exhibitions, etc. Features quick installation requiring no specialized tools.
3.Multifunctional Application: Suitable for outdoor performances, celebrations, and temporary exhibition booths. Includes expandable hanging points for lighting and audio equipment, enhancing stage functionality.
4.Safety & Durability: Surface treated for oxidation resistance, adaptable to harsh environments. Structure validated by TUV load testing, ensuring long-term stability.
