packing weight: 1600kg
packing volume: 11cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 21 pcs |
| 1.22m stage brace | 28 pcs |
| 2.44m stage brace | 24 pcs |
| stand with extendable tube | 32 pcs |
| Stage adjustable base | 32 pcs |
| Stage Stair | wooden topping | total | 8 | steps | 2 pcs |
packing weight: 2200kg
packing volume:23cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 10.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 2pcs |
| 10.00 m Beam(side) | 2 sets | 3.00 m | 50x3.0 | CS389×390 | 6pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 2pcs |
| 8.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 4pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| beam cube | Spigot cube 389x389 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 10.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 3pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 1pcs |
| 5.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.20 m | 50×3.0 | CS289×289 | 4pcs |
| 5.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL30,289*50 | 8pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 2.20 m | 50×3.0 | CL30,289*50 | 8pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 16pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 177.36 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 3.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 2pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 8.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |

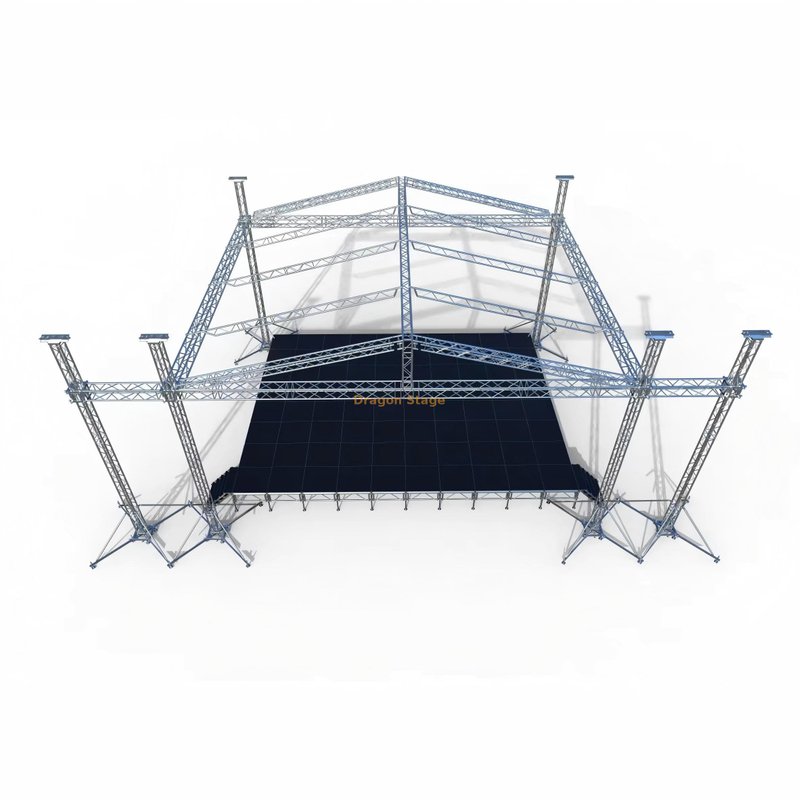

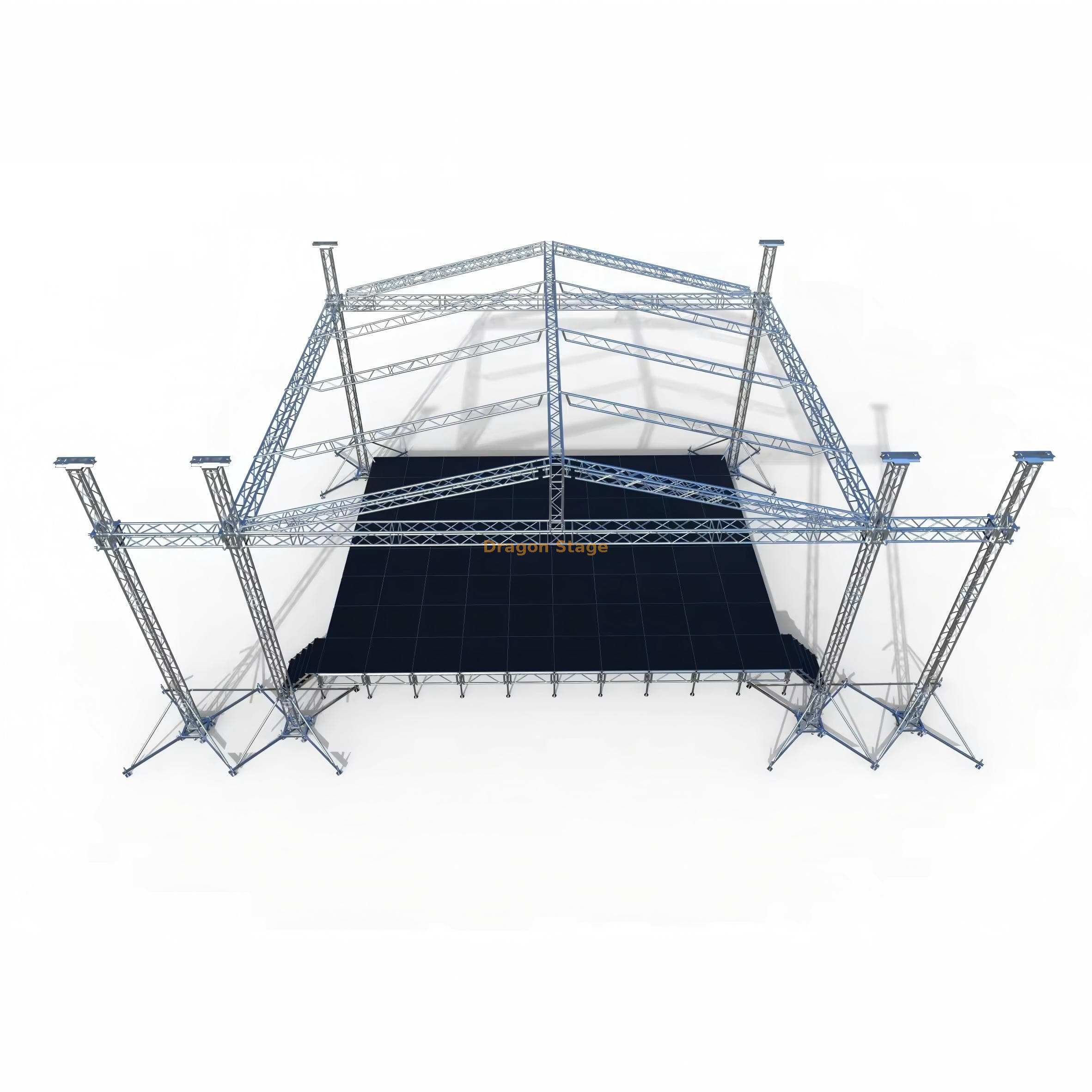

Aluminum Silver Outdoor Stand Event Truss with Roof 10x10x9m: Heavy-Duty Square Truss System
1. Introduction: The Foundation of Large-Scale Live Production
The DragonStage Aluminum Silver Outdoor Stand Event Truss with Roof 10x10x9m is a flagship ground support system designed for high-profile, large-scale outdoor events, festivals, and exhibitions. Sized for maximum impact at 10 meters wide x 10 meters deep with a commanding 9-meter clear height, this structure provides an expansive, safe, and fully covered overhead grid capable of supporting substantial production loads.
Built for the professional contractor, this heavy-duty lighting truss design utilizes the robust CS389x389 Square Spigot Truss profile, signaling immediate reliability and high load-bearing capacity. This all-in-one package includes the main 4-pillar ground support, a complete flat roof system with canopy, integrated 3m speaker wing towers, and a dedicated modular stage platform, making it the preferred choice for reliable, large-format event architecture.
2. Challenges & Solutions in Event Construction Logistics
Event contractors operating at this scale face immense pressure concerning load certification, weather resilience, and maximizing efficiency during setup and teardown. DragonStage provides definitive engineering solutions:
Structural Safety and High Load Capacity: Large truss systems must withstand greater dynamic and static loads. By employing the CS389x389 truss profile with a substantial $50\text{mm} \times 3.0\text{mm}$ main tube size, the system ensures superior rigidity and load performance compared to lighter profiles (Source:https://www.dragontruss.com/TUV-Report-dc249965.html).
Controlling High Elevation Assembly: Safely erecting a 9m structure requires controlled lifting. The system integrates Manual Hoists (BA05, 2 Tons) on all six towers (four main and two wing towers), facilitating a secure, vertical ascent of the roof and lighting elements. The use of a truss corner connector like the Sleeve Block is crucial for smooth tower operation .
Weather Protection for Production: The integrated flat roof system spans the entire 10m x 10m area, covered by a 177.36 sqm PVC canopy. This provides comprehensive protection for expensive lighting, video, and audio equipment, ensuring production continuity regardless of weather conditions (Source:https://www.livedesignonline.com).
3. Key Features & Benefits for Event Professionals
This custom outdoor stage platform system is a complete turnkey solution, engineered for operational excellence and long-term durability, benefiting the B2B event professional.
| Feature | Specification Details | Client Benefit |
| Overall Dimensions (L x W x H) | 10m x 10m x 9m (approximate) | Offers a massive, high-ceiling structure suitable for headline acts and large-format video screens. |
| Truss Series (Main) | CS389x389 Square Spigot Truss | Guarantees high maximum loading capacities required for complex lighting rigs and large PA systems. |
| Integrated Speaker Wings | 3m beams / 8m Pillars (2 sets) | Provides dedicated, high-stability PA Tower Truss System points for optimal sound coverage and dispersal. |
| Connection Type | Spigot (Conical Coupler, Safety Clip, and Pin) | Delivers fast, secure connections with minimal tooling, accelerating setup and teardown times. |
| Stability Enhancement | Long Outriggers (16 main, 8 wing) | Maximizes the ground footprint and stability, essential for safety when operating at 9m heights. |
| Total System Weight/Volume | 3800 kg total / 34 CBM total | Efficiently compartmentalized freight (1600kg/11CBM truss; 2200kg/23CBM stage) for simplified transport planning. |
The system features essential structural components, including Spigot Sleeve Block S, Steel Base S, and Top Section S for all towers, alongside specialized hinge sections. The accompanying stage platform includes 21 pieces of wooden 4x8ft (1.22m x 2.44m) topping, complete with all necessary stage braces and adjustable bases, delivering a large performance surface of approximately $9.76\text{m} \times 6.09\text{m}$ (32ft x 20ft). The robust aluminum roof truss system allows the rigging crew to work efficiently and safely under the cover of the PVC canopy.
4. Practical FAQ for Stage Professionals
Q: What type of events is this large truss system best suited for?
A: Due to its size and high load capacity (CS389x389), it is ideal for major music festivals, large-scale corporate brand activations, main concert stages, and sporting events requiring maximum coverage and height.
Q: How is the system stabilized against high winds?
A: The structure relies on 24 Long Outriggers and Steel Bases. Per industry best practice, proper anchoring or ballasting must be implemented according to local wind load calculations determined by a certified engineer.
Q: Does this structure come with the required lifting equipment?
A: Yes, the system includes 6 sets of 2-Ton Manual Hoists (BA05) and corresponding Fibre Slings for safe roof and speaker wing elevation.
Q: Is the stage height adjustable within the kit?
A: Yes, the included stage stands have extendable tubes and adjustable bases, allowing the modular stage platform height to be customized to meet site-specific requirements.
5. Strong Call to Action (CTA)
Equip your next major production with the scale, safety, and reliability of the DragonStage Aluminum Silver Outdoor Event Truss with Roof 10x10x9m.
Contact DragonStage’s engineering team for detailed structural drawings and certified load tables to begin planning your custom outdoor stage platform project.
