packing weight: 1700kg
packing volume: 13cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 8.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| beam cube | Spigotcube 289x289 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | .80 m | 50×3.0 | CS289×289 | 2pcs |
| 6.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 4.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.20 m | 50×3.0 | CS289×289 | 4pcs |
| 4.20 m Ladder truss | 4 sets | 3.00 m | 50×3.0 | CL30,289*50 | 4pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 4pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 8pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 103.36 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 3.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 5.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
packing weight: 900kg
packing volume: 7cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 12 pcs |
| 1.22m stage brace | 16 pcs |
| 2.44m stage brace | 15 pcs |
| stand with extendable tube | 20 pcs |
| Stage adjustable base | 20 pcs |
| Stage Stair | wooden topping | total | 8 | steps | adjustable to the stage height | 2 pcs |
Custom Outdoor Event Truss with Roof 8x6x6m and Speaker Wings: Integrated Modular Truss System
1. Introduction: The Foundation of Safe and Comprehensive Outdoor Event Architecture

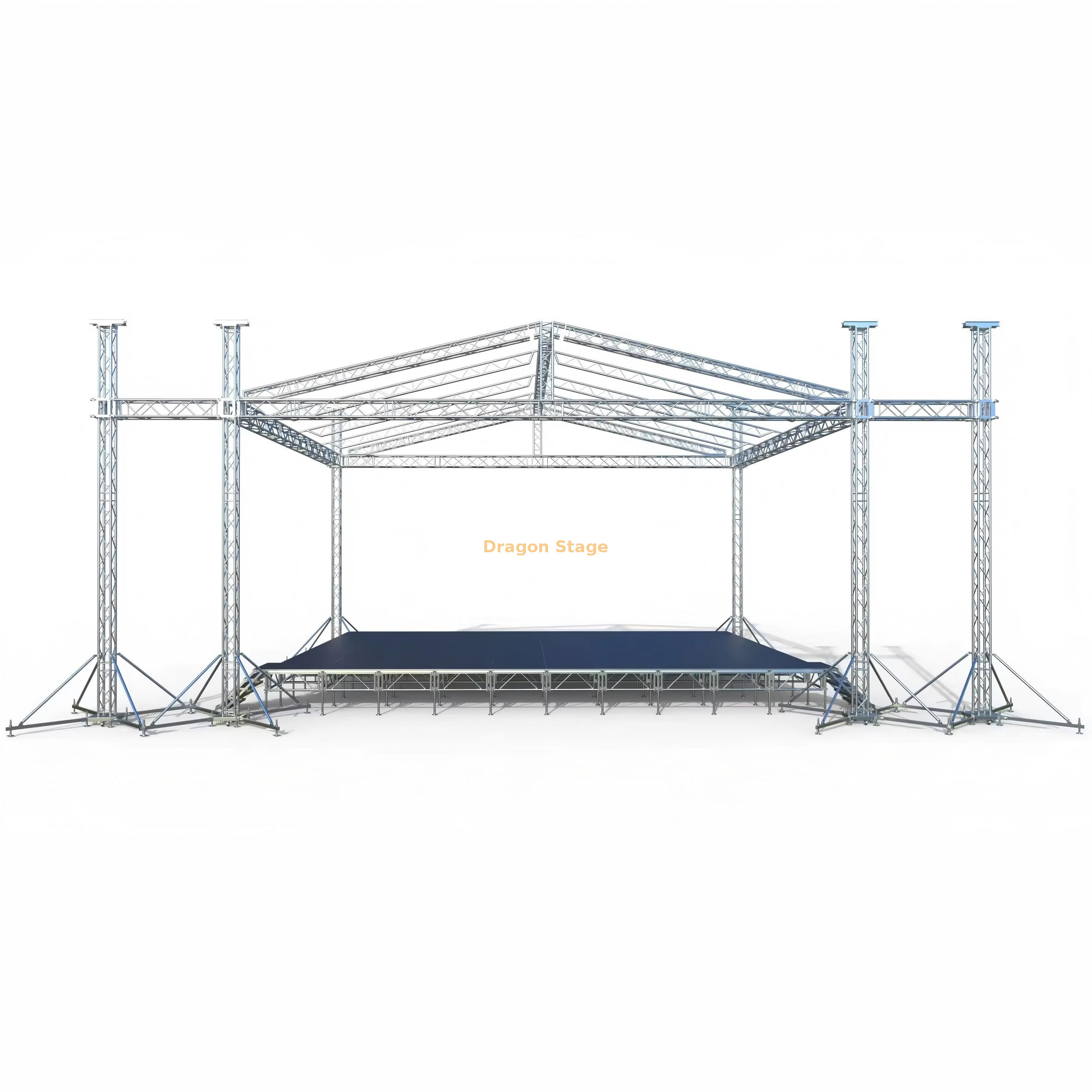

The DragonStage Custom Outdoor Booth Event Truss with Roof 8x6x6m is a professional-grade, multi-functional aluminum structure specifically engineered to serve as a high-visibility stage, covered booth, or performance venue. With core dimensions of 8m wide x 6m deep and a significant 6m clear height, this system provides extensive sheltered space. Crucially, it includes 3m integrated speaker wing trusses on two sides, offering essential load-bearing points for line array sound systems, a non-negotiable requirement for professional concert and festival production.
This modular event truss system addresses the logistical complexities faced by event contractors who require an all-in-one solution that ensures structural integrity, weather protection, and reliable load capacity for lighting and audio equipment. The structure is built around the industry-standard CS289x289 Square Spigot Truss profile, ensuring robust connection and rapid assembly.
2. Challenges & Solutions in Event Construction Logistics
Event organizers and stage builders commonly encounter pain points regarding site-specific logistics, wind-load management, and system versatility. DragonStage provides definitive solutions:
Wind and Load Resistance: Outdoor structures demand superior stability. This system utilizes a 4-pillar ground support complemented by 16 Long Outriggers strategically placed across the main pillars and speaker wings. This dramatically increases the structural footprint, enhancing stability and ensuring compliance with essential wind-load safety factors when properly anchored or ballasted (Source:https://www.eventindustrynews.com).
Rapid, Controlled Assembly: Time efficiency on site is paramount. The system is equipped with Manual Hoists (BA05, 2 Tons) on all six towers (four main, two wing), allowing for the controlled, safe lifting of the roof grid and speaker wings, optimizing the rigging process.
Comprehensive Stage Integration: Beyond the overhead structure, the kit includes a full modular stage platform built from wooden 4x8ft (1.22m x 2.44m) topping panels. This eliminates the need to source the stage separately, offering a synchronized, ready-to-use performance solution immediately upon installation (Source:https://www.dragontruss.com/Stage-Truss-System.html).
3. Key Features & Benefits for Event Professionals
The 8x6x6m Outdoor Event Truss is defined by its professional-grade components and functional integration, designed to maximize safety and utility.
| Feature | Specification Details | Client Benefit |
| Overall Dimensions (L x W x H) | 8m x 6m x 6m (approximate) | Provides a large, high-clearance main structure for maximum visibility and stage design freedom. |
| Truss Series | CS289x289 Square Spigot Truss | Ensures high certified load capacity and streamlined inventory management using standard components. |
| Main Tube Size | 50mm x 3.0mm | Offers heavy-duty material thickness for exceptional stress tolerance and structural longevity. |
| Integrated Speaker Wings | 3m in length on 2 sides | Delivers dedicated, load-rated structures for professional line array sound hangs, vital for audio dispersion. |
| Roof Canopy & Area | PVC material, 103.36 sqm | Provides full, seamless weather protection across the main structure and stage area. |
| Stability Enhancements | 24 total Long Outriggers (16 main, 8 wing) | Maximizes the base area, significantly improving stability against dynamic loads and wind forces. |
The structure is complete with high-quality rigging accessories, including Spigot Hinge Sections, Fibre Slings, and the necessary Single Clamps (8pcs) and Double Clamps (8pcs) for securing technical fixtures. The main truss structure and roof components are precisely cut and pre-fitted for the A-frame roof system, minimizing on-site modifications. The integrated stage platform is constructed using aluminum assembly stage components, with 12 pieces of 4x8ft wooden topping, offering a durable, non-slip surface ready for performance.
4. Practical FAQ for Stage Professionals
Q: What aluminum alloy does DragonStage use for its truss systems, and how does it perform outdoors?
A: DragonStage utilizes high-strength aluminum alloys (e.g., 6061-T6, typical for the industry), which provides exceptional corrosion resistance and a high strength-to-weight ratio, ensuring durability in outdoor environments.
Q: Is the system compatible with additional lighting fixtures?
A: Yes, the roof grid is built using the CS289x289 profile, which is standard for mounting lighting fixtures via clamps and is rated to carry significant production loads.
Q: How do the speaker wings connect to the main structure?
A: The speaker wings integrate seamlessly using dedicated corner sections and towers, connected with the standard Spigot system, ensuring a high-load connection point adjacent to the stage.
Q: What is the total combined packing weight for the system?
A: The total packing weight for the complete system (truss and stage) is approximately 2600 kg (1700 kg for truss, 900 kg for stage), optimizing it for freight planning.
5. Strong Call to Action (CTA)
Equip your next major outdoor event with the reliable, professional, and integrated DragonStage Custom Outdoor Event Truss System.
Contact DragonStage’s engineering team for a full load calculation report and a detailed quotation tailored to your specific event requirements.
