packing weight: 2400kg
packing volume: 22cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 12.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 11.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 12pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| beam cube | Spigot cube 389x389 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.20 m | 50×3.0 | CS289×289 | 2pcs |
| 12.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.20 m | 50×3.0 | CS289×289 | 4pcs |
| 6.20 m Ladder truss | 10 sets | 3.00 m | 50×3.0 | CL30,289*50 | 10pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 10pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 10pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 20pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 238.56 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 3.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 2pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 11.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
packing weight: 2300kg
packing volume: 15cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 36 pcs |
| 1.22m stage brace | 45 pcs |
| 2.44m stage brace | 40 pcs |
| stand with extendable tube | 50 pcs |
| Stage adjustable base | 50 pcs |
| Stage Stair | wooden topping | total | 8 | steps | adjustable to the stage height | 2 pcs |
Aluminum trusses are favored in the event industry due to their lightweight nature, durability, and ease of assembly. They are known for their strength-to-weight ratio, allowing them to support heavy lighting equipment while remaining portable and easy to transport.
Outdoor event trusses are typically designed to withstand various weather conditions, including rain, wind, and exposure to sunlight. They are often made with corrosion-resistant materials to ensure long-lasting performance in outdoor environments.
When setting up an outdoor event, it is crucial to consider safety regulations and guidelines. Trusses should be properly installed and secured by trained professionals to ensure stability and prevent accidents.
Overall, aluminum outdoor silver lighting event trusses provide a versatile and reliable solution for creating stunning lighting displays and supporting equipment in outdoor event settings.

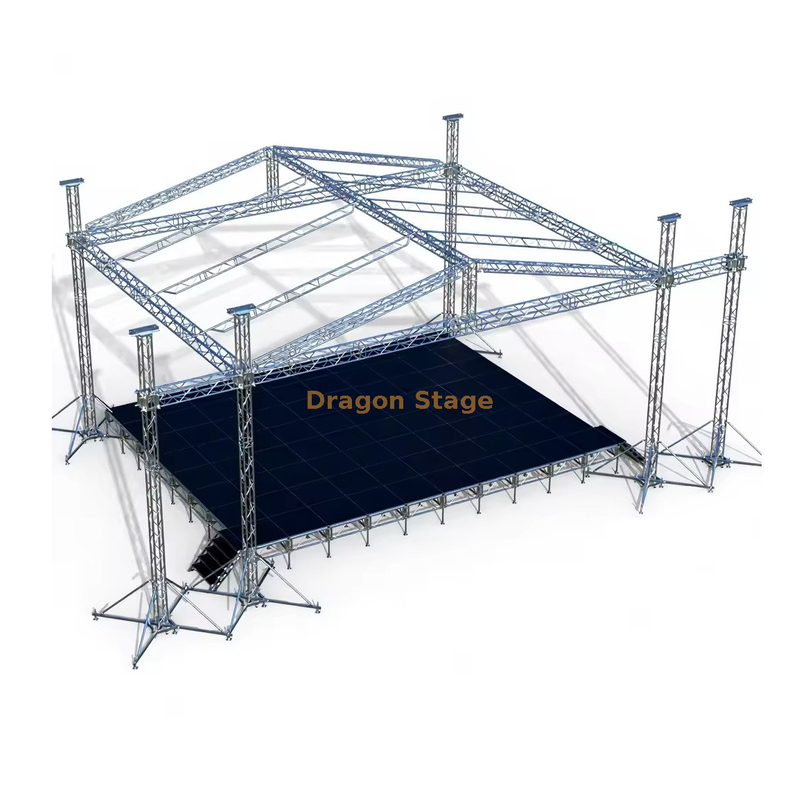

Aluminum Outdoor Silver Lighting Event Truss 12x12x12m
Introduction: The Foundation of Large-Scale Live Production
The DragonStage Aluminum Outdoor Silver Lighting Event Truss is an imposing and versatile structural solution engineered for major outdoor festivals, concert venues, and large-scale event staging. Featuring massive dimensions of 12 meters long by 12 meters wide, and reaching an impressive 12 meters high (overall size), this system provides exceptional vertical clearance and a substantial overhead grid for complex lighting, video, and audio rigging.
This system is characterized by its heavy-duty aluminum construction and comprehensive design, which includes a roof canopy and integrated stage platform. It directly addresses the dual needs of event professionals: a high-capacity structure that can manage heavy equipment loads over a large area, and a reliable system designed for rapid, safe deployment in diverse outdoor environments. The use of high-strength aluminum ensures the lightweight nature, durability, and ease of assembly necessary for a structure of this scale.
Challenges & Solutions in Modern Event Construction
Event contractors and engineers face significant pressure to guarantee safety, manage heavy loads, and achieve efficient setup for large, high-reach structures. This system is technically configured to overcome these key challenges:
Height and Load Management: Achieving a 12m height with stability requires robust vertical support. This structure uses 4 main pillars utilizing CS289x289 Spigot Truss and a main grid featuring CS389x389 Spigot Truss for maximum strength across the 12m spans. This configuration ensures the structural integrity needed to support considerable lighting and equipment weight at high elevations.
Safety and Erection Control: Lifting a 12m roof grid is complex. The system is equipped with 4 sets of 2-Ton Manual Hoists (BA05) and corresponding Fibre Slings, providing trained personnel with safe, mechanical control over the entire lifting process. Stability is further enhanced by 16 Long Outriggers at the base of the main towers, essential for resisting wind and lateral loads (Source:https://www.dragontruss.com/Typical-A-frame-Roof-Truss-System-pl3101260.html) .
Integrated Performance Solution: Rather than just a bare structure, this package includes a fully fitted podium stage platform sized 10.98m x 9.76m with adjustable height. This integrated approach simplifies procurement and logistics, ensuring the stage deck seamlessly interfaces with the truss structure.
Weather Protection: The structure includes a roof canopy (PVC material, $238.56\text{ sqm}$) that protects all equipment and performers from adverse weather, a necessity for any outdoor lighting event truss (Source:https://www.eventindustrynews.com).
Key Features & Benefits for Event Professionals
The Aluminum Outdoor Silver Lighting Event Truss 12x12x12m offers technical specifications optimized for maximum performance and logistical efficiency.
| Feature | Specification Details | Client Benefit |
| Overall Dimensions (L x W x H) | 12m x 12m x 12m (Truss) | Provides maximum height and square footprint for large-scale lighting and video rigging. |
| Main Truss Profiles | CS389x389 (Beam), CS289x289 (Pillar) | Heavy-duty square truss profiles ensure structural reliability over long spans and high vertical reaches. |
| Connection Type | Spigot (Conical Coupler, Safety Clip, Pin) | Facilitates quick, secure, and reliable assembly/disassembly, minimizing labor time. |
| Stage Platform Included | Approx. 10.98m x 9.76m (36 pieces of 4x8ft decking) | Ready-to-use performance area with adjustable height (1.2m to 2.0m). |
| Dedicated Speaker Wings | Two 3.0m wide wings | Allows for independent, safe suspension of line array speaker systems, optimizing audio placement. |
| Main Tube Size | Consistent 50mm x 3.0mm | Confirms heavy-duty rating and load-bearing performance across all primary members. |
The silver aluminum finish provides an aesthetic edge while utilizing corrosion-resistant materials suitable for outdoor environments. The entire truss system, including the 3.0m wide speaker wings which are supported by their own dedicated towers, is designed for rapid modular assembly. The inclusion of 50 sets of adjustable stands and bases for the stage platform ensures precise, secure leveling across various outdoor terrains (Source: https://www.dragontruss.com/STAGE).
4. Practical FAQ for Stage Professionals
Q: What is the total packing volume and weight for transport?
A: The truss structure packs into approximately 22 CBM (2400 kg), and the stage system is an additional 15 CBM (2300 kg), totaling 37 CBM for efficient freight planning.
Q: What grade of aluminum is used to ensure durability?
A: DragonStage structures typically utilize high-grade Aluminum Alloy 6061-T6 or similar, which offers an excellent strength-to-weight ratio and corrosion resistance for long-term outdoor use.
Q: Are additional rigging points available beyond the main grid?
A: Yes, the structure includes two 3.0m wide wings specifically designed for safe, dedicated suspension of line array speakers or lateral video screens.
Q: What safety mechanisms are included for the tower lift?
A: Each of the four main towers is controlled by a 2-Ton Manual Hoist, providing essential mechanical safety during the controlled raising and lowering of the roof section.
Strong Call to Action (CTA)
For secure, high-capacity, and visibly striking outdoor staging, choose the engineered excellence of the DragonStage Aluminum Outdoor Silver Lighting Event Truss 12x12x12m.
Contact DragonStage's engineering team today to secure certified load data and customized production drawings for your next large-scale event.
