CS-02
Dragon Stage

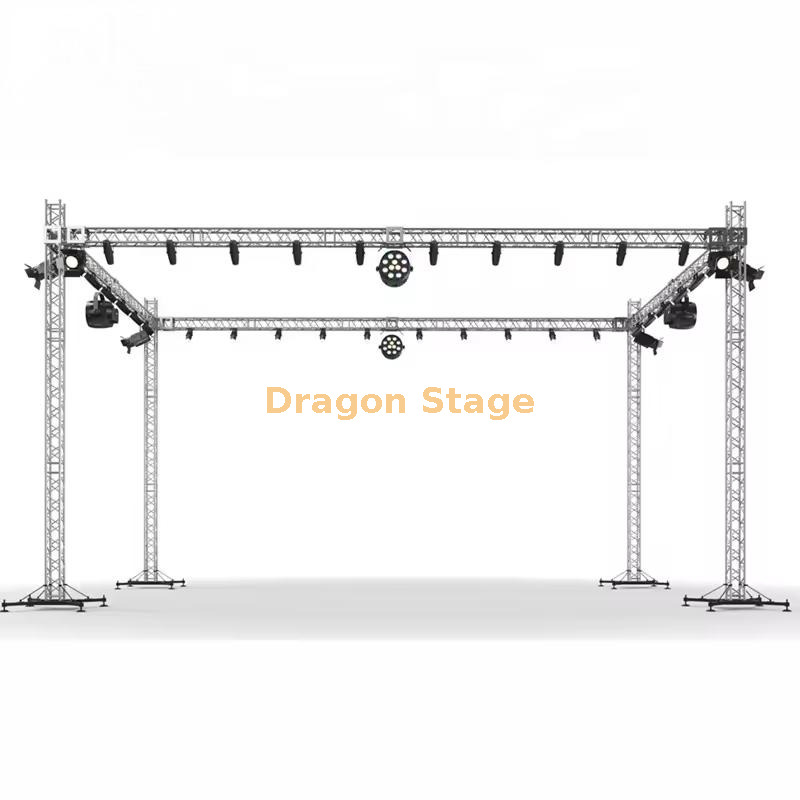

Portable Aluminum Roof Truss System 60x60x33ft
packing volume: 30cbm
packing weight: 1800kg
| Item | Specification(squre truss) | Qty | |||||
| length(M) | main tube(MM) | size(MM) | |||||
| Beam | 3 | 50×3.0 | CS500×600 | 24 pcs | |||
| 2 | 50×3.0 | CS500×600 | pcs | ||||
| 1 | 50×3.0 | CS500×600 | pcs | ||||
| Pillar | 3 | 50×3.0 | CS350×350 | 12 pcs | |||
| 2 | 50×3.0 | CS350×350 | pcs | ||||
| 1 | 50×3.0 | CS350×350 | pcs | ||||
| Tower | Spigot Sleeve Block M | 4 pcs | |||||
| Steel Base M | 4 pcs | ||||||
| Top Section M | 4 pcs | ||||||
| Manual hoist,BA05 2Tons | 4 pcs | ||||||
| Spigot Hinge Section,Height 1m | 4 pcs | ||||||
| Fibre sling,BA04,2 tons 3m | 4 pcs | ||||||
| Long outrigger | 16 pcs | ||||||
| Truss Accessory | Conical coupler & Safrty clip & pin | whole set | |||||
A portable aluminum roof truss system is a framework made of lightweight aluminum components designed to support the roof structure of a temporary or portable structure. It is commonly used in applications such as outdoor events, concerts, trade shows, exhibitions, and other temporary structures where quick assembly, disassembly, and portability are required.
The main advantages of using aluminum for roof truss systems are its lightweight nature, durability, and resistance to corrosion. Aluminum trusses are significantly lighter than traditional steel trusses, making them easier to transport, assemble, and disassemble. This lightweight feature also reduces the overall load on the supporting structure.
Additionally, aluminum is a highly durable material that can withstand various weather conditions, including rain, wind, and UV exposure. Its corrosion-resistant properties make it suitable for outdoor use without requiring extensive maintenance.
A portable aluminum roof truss system typically consists of individual truss segments that can be connected together using specialized connectors or fasteners. These segments are usually lightweight and come in various lengths, allowing for flexible configuration and customization to suit different project requirements.
When assembling a portable aluminum roof truss system, it's crucial to follow the manufacturer's instructions and ensure proper alignment, bracing, and attachment to the supporting structure. Safety measures, such as securing the truss system to the ground or using ballast weights, may also be necessary to prevent movement or instability, especially in outdoor environments with potential wind loads.
Overall, a portable aluminum roof truss system offers a versatile and convenient solution for creating temporary roof structures. Its lightweight, durable, and corrosion-resistant properties make it a popular choice in the event industry and other applications that require rapid assembly and portability.
