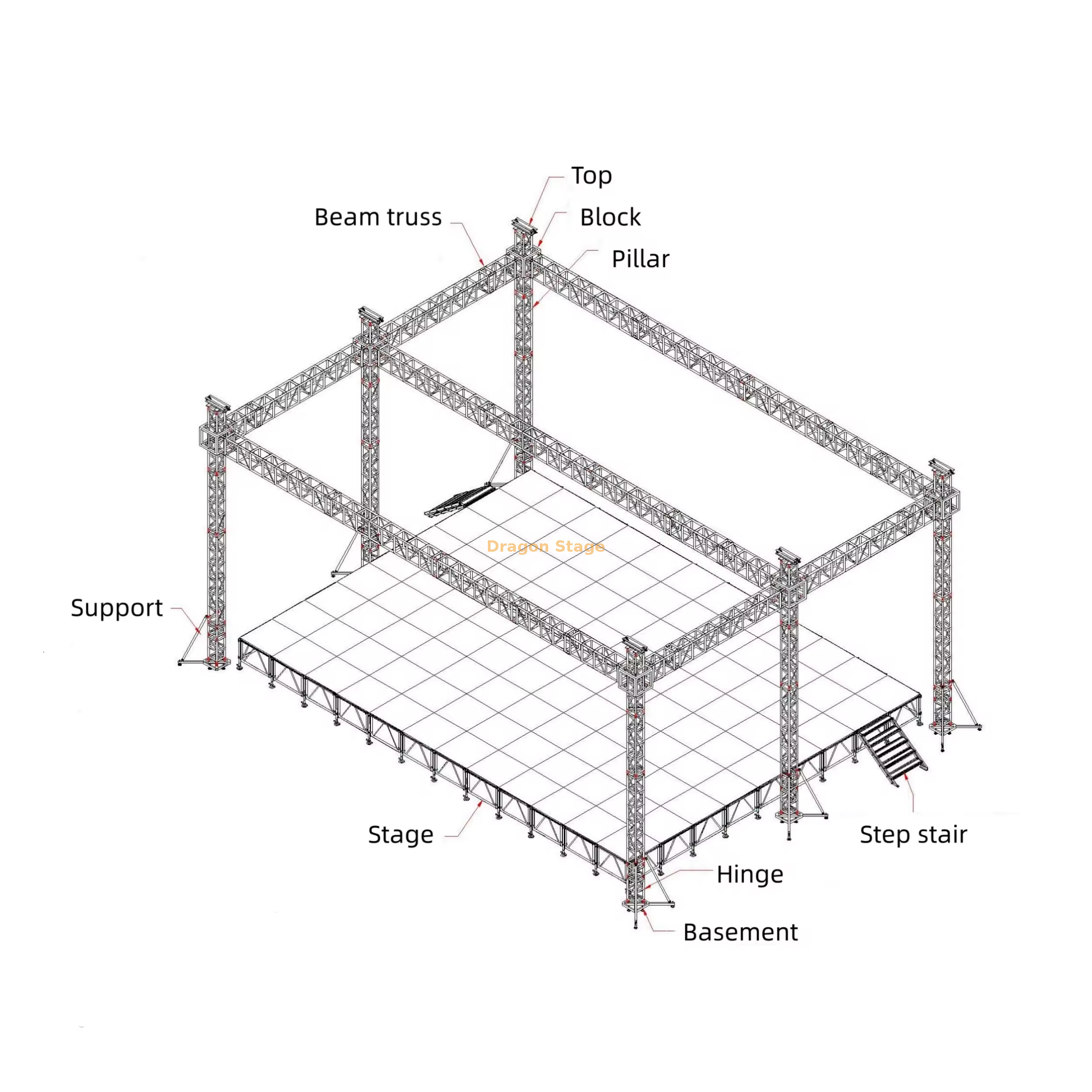

What is the Bolt Square Truss for Outdoor Events 40x40x26ft?
It is a professional-grade bolt-connected square aluminum truss system designed for demanding outdoor events. The 40ft × 40ft × 26ft structure provides generous coverage and height clearance, with bolt connections ensuring maximum strength and rigidity for supporting heavy lighting, sound, and visual equipment.
Answer CardWhy Choose This Bolt Square Truss?
✅ Massive 40ft × 40ft coverage with 26ft height ✅ Heavy-duty bolt square aluminum truss construction ✅ Superior strength and rigidity for outdoor use ✅ Supports lighting, speakers, LED screens & more ✅ Fast assembly with secure bolt connections
We offer two types of truss options for our clients: bolt type truss and spigot truss. Both options are designed to provide maximum support and stability for any outdoor event. The bolt type truss is easy to assemble and disassemble, making it perfect for on-the-go performances. The spigot truss, on the other hand, offers a seamless and sleek look, ideal for high-end outdoor events. With our 6 pillar truss system, you can trust that your outdoor performances will be supported with the best equipment available.
spigot truss system
packing weight: 1590kg
packing volume: 13cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 12.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS389×389 | 12pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 12.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 7.00 m Pillar | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 12pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 6pcs |
| beam cube | Spigot cube 389x389 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 6pcs |
| Steel Base S | 6pcs |
| Top Section S | 6pcs |
| Manual hoist,BA05 2Tons | 6pcs |
| Spigot Hinge Section,Height 1m | 6pcs |
| Fibre sling,BA04,2 tons 3m | 6pcs |
| Long outrigger | 24pcs |
bolt truss system
packing weight: 1650kg
packing volume: 19.5cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 12.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | BS400×400 | 12pcs |
| 2.00 m | 50×3.0 | BS400×400 | 0pcs |
| 1.00 m | 50×3.0 | BS400×400 | 0pcs |
| 12.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | BS400×400 | 8pcs |
| 2.00 m | 50×3.0 | BS400×400 | 0pcs |
| 1.00 m | 50×3.0 | BS400×400 | 0pcs |
| 7.00 m Pillar | 6 sets | 3.00 m | 50×3.0 | BS400×400 | 12pcs |
| 2.00 m | 50×3.0 | BS400×400 | 0pcs |
| 1.00 m | 50×3.0 | BS400×400 | 6pcs |
| beam cube | cube 400x400 | 0pcs |
| Frame Tower | Bolt Truss Sleeve Block S | 6pcs |
| Steel Base S | 6pcs |
| Top Section S | 6pcs |
| Manual hoist,BA05 2Tons | 6pcs |
| Spigot Hinge Section,Height 1m | 6pcs |
| Fibre sling,BA04,2 tons 3m | 6pcs |
| Long outrigger | 24pcs |
The Bolt Square Truss for Outdoor Events 40x40x26ft is engineered for large-scale outdoor productions that require maximum stability and load-bearing performance. Its expansive 40ft × 40ft footprint and 26ft height create a professional event space with ample clearance for full lighting rigs, line array speakers, LED video walls, and stage effects. The bolt square truss design delivers superior structural rigidity and connection strength compared to spigot systems in high-load applications.

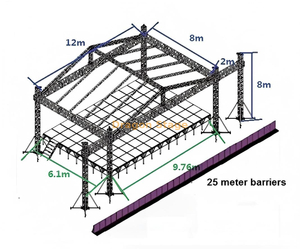

Constructed from high-strength aluminum alloy, this bolt truss system offers excellent durability, corrosion resistance, and long-term reliability in outdoor environments. The modular bolt connections allow secure and precise assembly while maintaining exceptional overall stability. For essential guidance on outdoor truss selection, see How to Choose Aluminum Truss for Outdoor Events (Safety & Load Guide). Understanding load limits is critical — refer to How much weight can a lighting truss hold?. Similar large outdoor truss structures are featured in our Outdoor Concert Aluminum Truss Stage System Roof Trusses Structure for Event 14x8x8m.
This heavy-duty bolt square truss helps event professionals deliver spectacular outdoor events with confidence and safety. Contact us today for custom configurations and detailed load analysis.
FAQs
1. What are the exact dimensions of this bolt square truss system?The system measures 40ft × 40ft with a height of 26ft, providing substantial coverage and clearance for large outdoor events.
2. Is this bolt square truss suitable for outdoor events?Yes. Its heavy-duty aluminum construction and bolt connections offer superior rigidity and stability, making it ideal for concerts, festivals, and outdoor gatherings. Learn more in How to Choose Aluminum Truss for Outdoor Events (Safety & Load Guide).
3. What is the difference between bolt truss and spigot truss?Bolt truss provides stronger, more rigid connections ideal for heavy loads and large spans. For more details on truss types and selection, see What is the difference between aluminum truss and bolt/spigot truss?.
