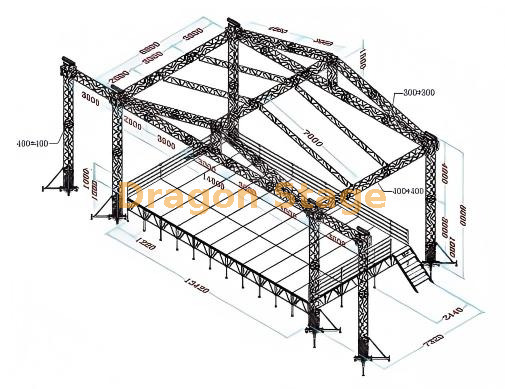

What is the Outdoor Concert Aluminum Truss Stage System Roof Trusses Structure for Event 14x8x8m?
It is a robust aluminum roof truss system engineered for outdoor concerts and events. The 14m × 8m main roof structure with 8m height creates a spacious performance area with integrated rigging points for professional lighting, audio equipment, and visual elements, while ensuring structural stability and quick assembly.
Answer CardWhy Choose This Outdoor Concert Roof Truss?
✅ Spacious 14m × 8m coverage with 8m height ✅ Heavy-duty aluminum alloy construction ✅ Strong roof structure for lighting and speakers ✅ Excellent stability for outdoor events✅ Fast modular assembly and easy transport
packing weight: 2150kg
packing volume: 19cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 14.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 8.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 4pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.40 m | 50×3.0 | CS289×289 | 2pcs |
| 8.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 1pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 7.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.20 m | 50×3.0 | CS289×289 | 4pcs |
| 7.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 12pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 6pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 12pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 207.76 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 3.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 2pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 7.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
packing weight: 2000kg
packing volume: 12.5cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 30 pcs |
| 1.22m stage brace | 36 pcs |
| 2.44m stage brace | 35 pcs |
| stand with extendable tube | 42 pcs |
| Stage adjustable base | 42 pcs |
| Stage Stair | wooden topping | total | 8 | steps | adjustable to the stage height | 2 pcs |
Outdoor Concert Aluminum Truss Stage System Roof Trusses Structure for Event 14x8x8m (Stage Platform 1.2-2m, 12.2x7.32m with 2 Adjustable Stairs) – Product Description
Engineered for large-scale outdoor concerts and events, this Aluminum Truss Stage System integrates a robust roof truss structure with a customizable stage platform, delivering unmatched stability, aesthetics, and functionality. Combining Dragon Stage’s expertise in modular staging (per “Stages Trusses, Events Equipment Manufacturer - Dragon Stage”) with advanced aluminum engineering, it is designed to withstand dynamic outdoor conditions while elevating the visual and acoustic experience of live performances.
FAQs
1. What are the exact dimensions of this outdoor concert roof truss?The main roof structure measures 14m wide × 8m deep with an 8m height, providing ample space for performances and equipment rigging.
2. Is this aluminum roof truss suitable for outdoor concerts?Yes. Its heavy-duty aluminum alloy construction and stable roof design make it highly suitable for outdoor events, offering excellent weather resistance and load capacity. Learn more in How to Choose Aluminum Truss for Outdoor Events (Safety & Load Guide).
3. How long does it take to assemble this 14x8x8m concert truss system?Thanks to the modular design, professional crews can complete assembly efficiently. For practical installation steps, check How To Install A Heavy-Duty Concert Roof Stage.
