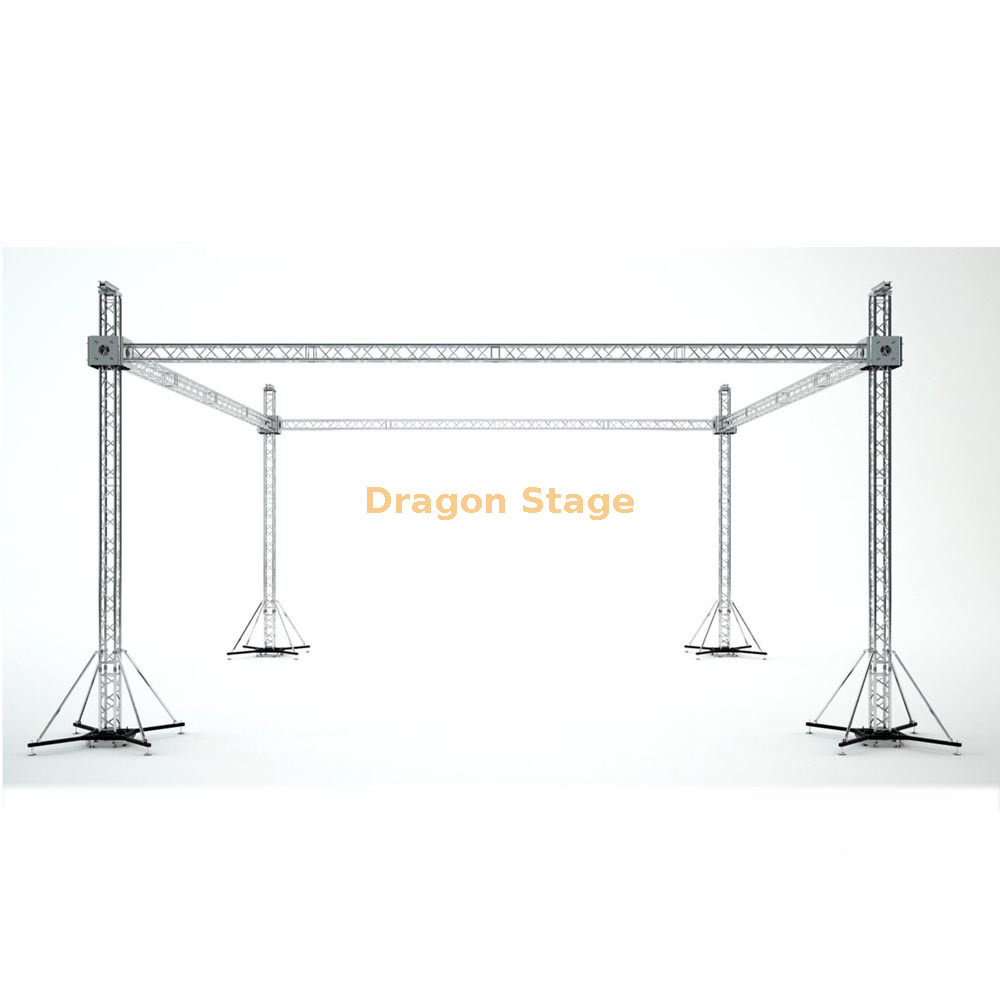

A complete 11x11x5m roof truss system includes several modular components to achieve the desired dimensions and stability:
Main Truss Sections: Various lengths of square or triangular aluminum truss segments, likely in a medium-to-heavy duty profile (e.g., F34 290x290mm), form the main grid and supporting towers.
Corner Junctions/Blocks: Multi-way corner blocks (2-way to 6-way) are used to connect horizontal and vertical truss sections and facilitate the specific roof design.
Support Towers: Vertical truss towers with sleeves or hinge blocks are used to raise the roof structure to the 5m height.
Base Plates: Robust aluminum or steel base plates provide stability for the vertical towers.
Connection Hardware: The necessary connection sets, including spigots, pins, safety clips, nuts, and bolts, are included depending on the chosen system type.
Rigging Accessories: Additional items like manual or electric chain hoists and truss clamps are needed for lifting and securing lighting, speakers, and LED screens.
