packing weight: 3050kg
packing volume: 28cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 15.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS389×389 | 15pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 12.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 7.00 m Pillar | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 12pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 6pcs |
| Frame Tower | Spigot Sleeve Block S | 6pcs |
| Steel Base S | 6pcs |
| Top Section S | 6pcs |
| Manual hoist,BA05 2Tons | 6pcs |
| Spigot Hinge Section,Height 1m | 6pcs |
| Fibre sling,BA04,2 tons 3m | 6pcs |
| Long outrigger | 24pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 1.50 m | 50×3.0 | CS289×289 | 3pcs |
| 12.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 7.70 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.70 m | 50×3.0 | CS289×289 | 6pcs |
| 7.70 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL30,289*50 | 8pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 8pcs |
| 2.70 m | 50×3.0 | CL30,289*50 | 8pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 1pcs |
| Connect plate with clamp | 3pcs |
| Single clamp | 16pcs |
| Double clamp | 12pcs |
| roof canopy material:pvc, Blue Colour or customized. | 293.46 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 0pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 7.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
packing weight: 2800kg
packing volume: 18cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 45 pcs |
| 1.22m stage brace | 54 pcs |
| 2.44m stage brace | 50 pcs |
| stand with extendable tube | 60 pcs |
| Stage adjustable base | 60 pcs |
| Stage Stair | wooden topping | total | 8 | steps | 2 pcs |
Aluminum Adjustable Height Outdoor Event Stage Truss System: 15m x 12m x 8m (6 Pillars)
Introduction: Massive Coverage and Professional Rigging Capacity

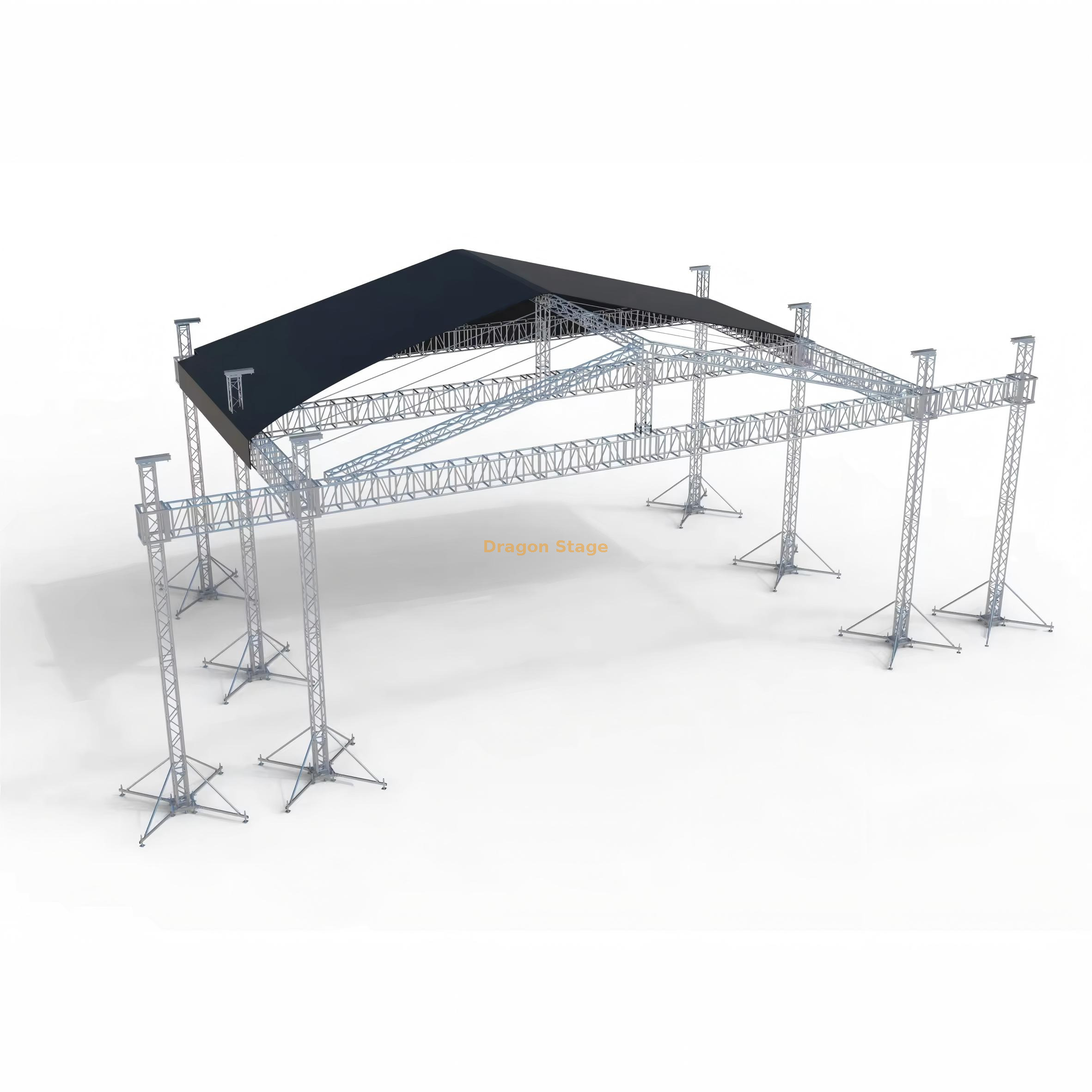

The Dragon Stage Aluminum Adjustable Height Outdoor Event Stage Truss System is designed for the most demanding large-scale concerts, festivals, and televised events. This comprehensive package features a robust 15m x 12m x 8m truss roof structure supported by six main pillars and includes an extensive, adjustable stage platform. The upgraded six-tower support system provides exceptional load distribution and stability over the large 15-meter span, making it the premier choice for major outdoor productions.
Key Features & Component Breakdown
I. High-Capacity 6-Pillar Truss Structure
This system is engineered for maximum safety and load capacity over its massive footprint:

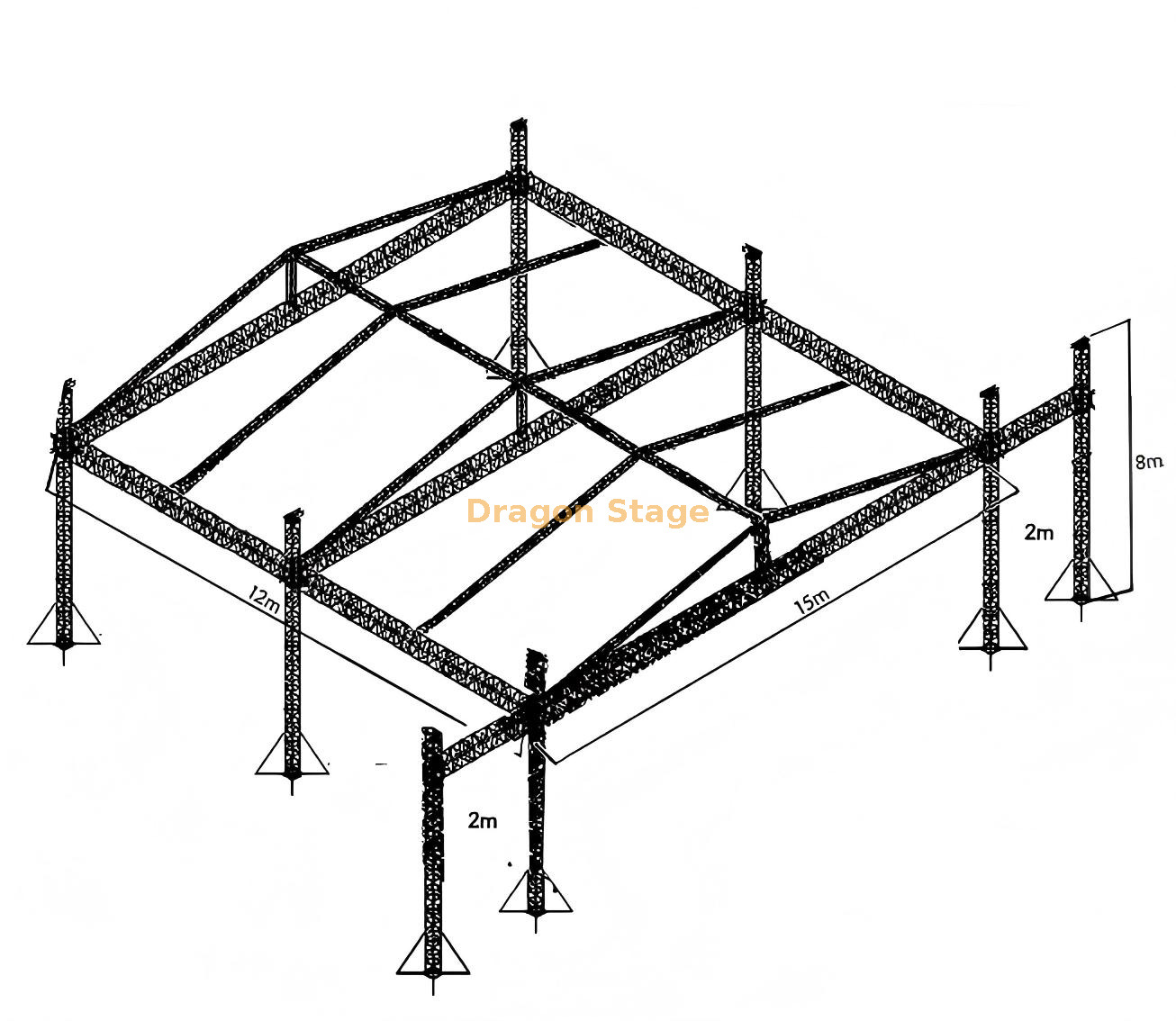

Structure Dimensions: 15m Long x 12m Wide x 8m High (49.2ft x 39.4ft x 26.2ft).
Six-Tower Support: Utilizing six main vertical pillars (as opposed to the standard four), this design significantly increases the system's structural integrity and load capacity, particularly for hanging heavy LED screens and line arrays across the 15m span.
Truss Profiles:
Integrated Wings: Two separate wing structures are included, complete with their own pillars, bases, and hoists. These are essential for optimal placement of PA Speakers (Line Array) away from the main roof line.
Lifting & Stabilization: Features a total of 8 sets of 2-Ton Manual Hoists (BA05) and an impressive 24 Long Outriggers for supreme stability in high-wind conditions.
II. Adjustable Height Event Stage
The included stage is designed to accommodate different audience sightline requirements:
Stage Footprint: A large 12.2m x 10.98m (approx. 40ft x 36ft) performance area.
Adjustable Height: The stage system allows for flexible height adjustment from 1.2m to 2m (4ft to 6.5ft), making it versatile for both concerts and tiered presentation events.
Deck Material: Features 45 pieces of durable 4x8ft (1.22m x 2.44m) wooden stage topping, complete with necessary bracing and supports for the maximum height.
III. System Logistics
| Component | Description | Logistics | Key Feature |
| Roof Truss | 6-Pillar, A-Frame w/ Wings | 3050 kg / 28 CBM | 15m span, 8m height |
| Stage Platform | 40ft x 36ft, Wooden Deck | 2800 kg / 18 CBM | Adjustable Height (1.2m - 2m) |
| Canopy | PVC, Blue or Custom Color | 293.46 sq m | Full protection for the roof grid |
| Lifting Gear | 8 x BA05 Manual Hoists (2T) | Included | Simultaneous lift capability |
Practical FAQ for Stage Professionals
Q: Why opt for a 6-pillar system over a standard 4-pillar system for a 15m span?
A: A 6-pillar configuration significantly increases the maximum allowable hanging load (rigging capacity) across the main roof grid, as the load is distributed over more vertical supports. This is critical for large productions requiring heavy lighting, extensive backdrops, and multiple video screens. It also drastically improves the stability and wind resistance profile of the structure.
Q: What is the benefit of the adjustable stage height (1.2m - 2m)?
A: The adjustable range allows the stage to be positioned higher (up to 2m) for very large outdoor audiences, ensuring clear sightlines from a distance. The lower heights are useful for events in smaller venues or where local regulations restrict maximum stage deck elevation.
Q: What is the main cause of the wide price range (¥ 65,640 - ¥ 115,756)?
A: The difference in pricing often depends on several factors:
Roof Material: Upgrading the PVC canopy to a heavy-duty, fire-retardant, or mesh material.
Certification: Including full structural calculations and TUV certification reports.
Stage Decking: Upgrading the wooden topping to a more durable, premium anti-slip, or fire-rated material.
Hoists: Swapping the 8 Manual Hoists for 8 Electric Chain Hoists.
