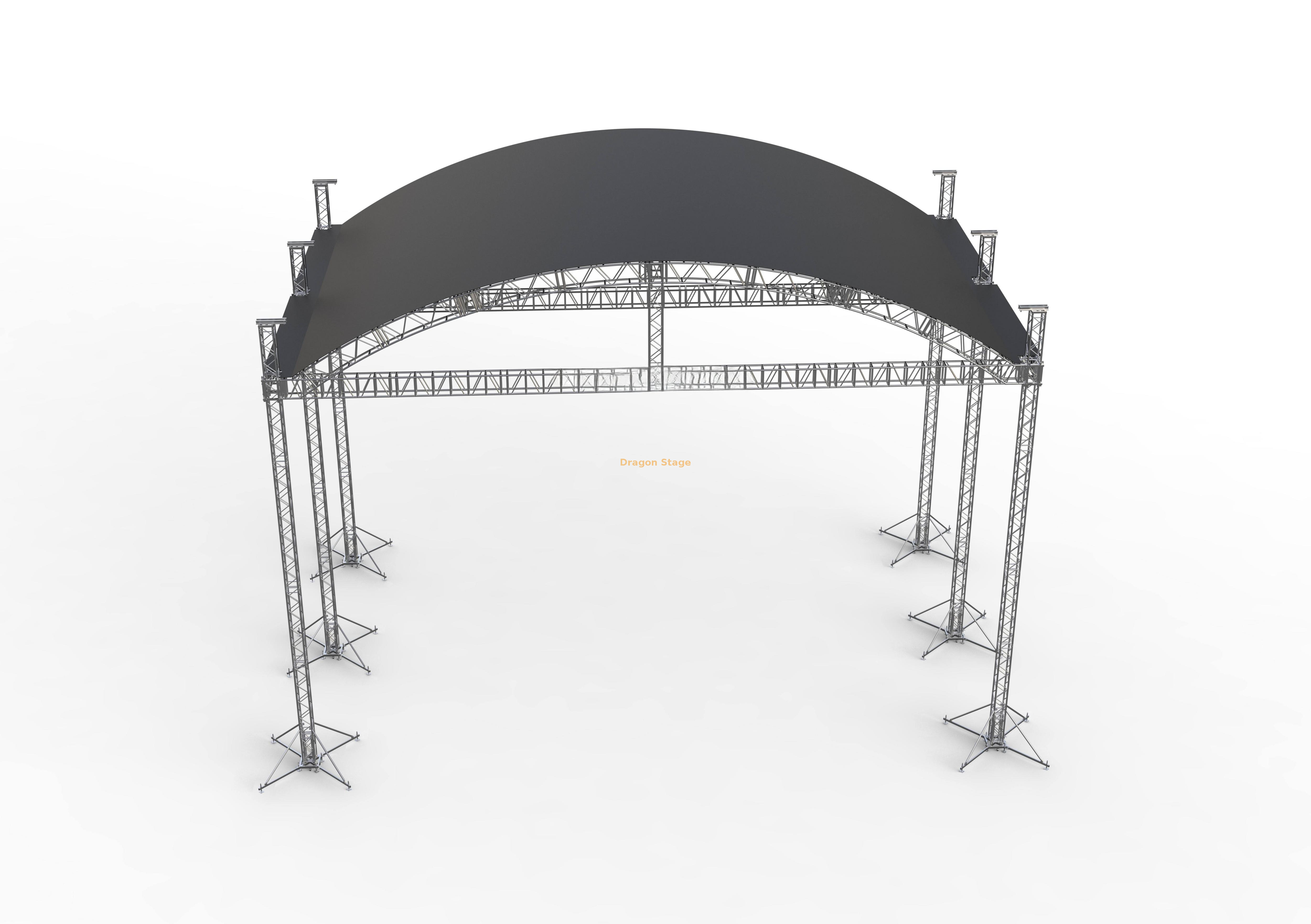

20mx14x8m Curve Roof Aluminum Stage Truss System (8m Height)

5 0 Reviews

Heavy-duty 20m wide, 14m deep, and 8m high curve roof aluminum truss system. Ideal for large outdoor events, concerts, and festivals. Features a robust, durable, and easy-to-assemble bolt truss structure for maximum safety and stability.

Price: ￥ 184898


Availability:



Inquire

Brand:
Dragonstage

Product Description

packing weight: 3250kg

packing volume: 26cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
20.00 m Beam(front)	3 sets	3.00 m	50×4.0	CS520×760	18 pcs
		2.00 m	50×4.0	CS520×760	3 pcs
		1.00 m	50×4.0	CS520×760	pcs
14.00 m Beam(side)	2 sets	3.00 m	50×4.0	CS520×760	8 pcs
		2.00 m	50×4.0	CS520×760	pcs
		1.00 m	50×4.0	CS520×760	4 pcs
8.00 m Pillar	6 sets	3.00 m	50×3.0	CS389×389	12 pcs
		2.00 m	50×3.0	CS389×389	pcs
		1.00 m	50×3.0	CS389×389	6 pcs
Tower	Spigot Sleeve Block L				6 pcs
	Steel Base L				6 pcs
	Top Section L				6 pcs
	Manual hoist,BA05 2Tons				6 pcs
	Spigot Hinge Section,Height 1m				6 pcs
	Fibre sling,BA04,2 tons 3m				6 pcs
	Long outrigger				24 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	2.00 m	50×3.0	CS289×289	3 pcs
14.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	2 pcs
22.00 m Arch Beam	3 sets	3.00 m	50×3.0	CS289×289	18 pcs
		2.00 m	50×3.0	CS289×289	6 pcs
		.00 m	50×3.0	CS289×289	pcs
22.00 m Ladder truss	6 sets	3.00 m	50×3.0	CL40,389*50	36 pcs
		2.00 m	50×3.0	CL40,389*50	12 pcs
		.00 m	50×3.0	CL40,389*50	pcs
Roof Components		spigot multi cube, use for roof beam truss		CS289×289	3 pcs
		Connect plate with clamp			3 pcs
		Single clamp			192 pcs
		Double clamp			12 pcs
		roof canopy material:pvc, Blue Colour or customized.		506.56	1 pcs

20mx14x8m Curve Roof Aluminum Stage Truss System (8m Height)

This professional-grade, large-span Curve Roof Aluminum Stage Truss System is engineered for demanding outdoor event applications, including concerts, music festivals, corporate events, and large-scale public gatherings.

Key Dimensions: The system boasts an expansive 20-meter width, a 14-meter depth, and an impressive 8-meter clear height, providing ample space and visibility for any major production.
Superior Construction: Constructed from high-strength, lightweight 6082-T6 aluminum alloy, ensuring exceptional load-bearing capacity and outstanding corrosion resistance for long-term outdoor use.
Safety & Stability: The classic curved roof design offers excellent drainage and wind resistance, while the system is secured by robust bases and bracing. The use of a durable bolt connection ensures a secure and rigid structure.
Versatility: Perfect for suspending heavy lighting, LED screens, sound systems (PA wings), and stage backdrops. Its modular design allows for relatively quick and efficient setup and tear-down.
