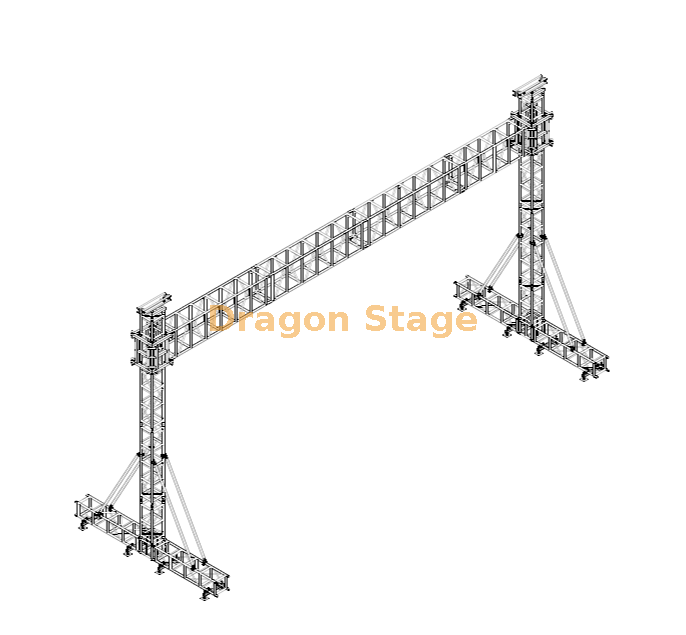

10x6m Heavy-Duty Aluminum Goal Post Truss System for LED Screens

5 0 Reviews

Boost your event's visual impact with our 10m x 6m Aluminum Alloy Goal Post Truss. Engineered for durability and high load-bearing capacity, this portable system is perfect for hanging heavy LED screens and lighting for concerts, exhibitions, and outdoor festivals.

Price: ￥ 25440


Availability:



Inquire

Brand:
Dragonstage

Product Description

Our Aluminum Alloy Goal Post Truss is a professional-grade solution designed specifically for large-scale visual displays and stage lighting. This system features a expansive 10-meter width and a 6-meter height, providing a massive frame ideal for hanging high-resolution LED video walls and complex lighting arrays.

packing weight:540kg

packing volume:9cbm

Item	Specification(squre truss)			Qty
	length(M)	main tube(MM)	size(MM)
Upper Beam	3	50×4.0	CS520×760	3 pcs
	2	50×4.0	CS520×760	pcs
	1	50×4.0	CS520×760	1 pcs
Ground Beam	3	50×3.0	CS389×389
	2	50×3.0	CS389×389	pcs
	1	50×3.0	CS389×389
Pillar Support Beam	1.5	50×3.0	CS389×389	4 pcs
Pillar	3	50×3.0	CS389×389	2 pcs
	2	50×3.0	CS389×389	2pcs
	1	50×3.0	CS389×389	pcs
Tower	Spigot Sleeve Block L			2 pcs
	Top Section L			2 pcs
	Manual hoist,BA05 2Tons			2 pcs
	Spigot Hinge Section,Height 1m			2 pcs
	Fibre sling,BA04,2 tons 3m			2 pcs
	Diagonal bar			8 pcs
	cube connector		CS389×389	2 pcs
	Steel Base			8 pcs
Truss Accessory	Conical coupler & Safrty clip & pin			whole set
