Goal Post 8x6m Exhibition Module Finish Line Stand Truss

5 0 Reviews

aluminum Goal Post truss is a kind of Exhibition Module Finish Line Stand Truss, it is made of bolt truss 300x300mm

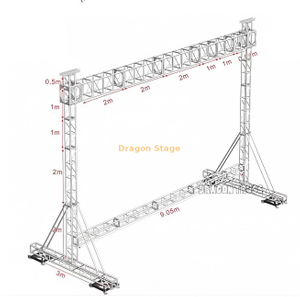

total sizes are 26.24x19.68ft, it is 8m wide and 6m high gentry truss.

it is for led display and lighting equipments

Price: ￥ 9600


Availability:



Inquire

Brand:
Dragon Stage

Product Description

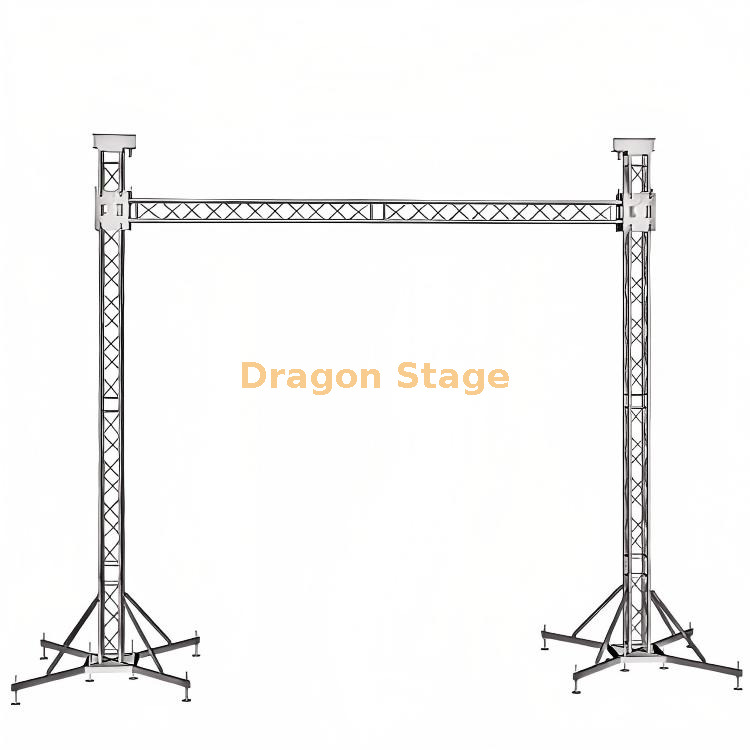

Goal Post Exhibition Module Finish Line Stand Truss

packing weight: 230kg

pcaking volume: 3cbm

Item	Specification(squre truss)			Qty
	length(M)	main tube(MM)	size(MM)
Beam	3	50×3.0	BS300×300	2 pcs
	2	50×3.0	BS300×300	2 pcs
	1	50×3.0	BS300×300
Pillar	3	50×3.0	BS300×300
	2	50×3.0	BS300×300	4 pcs
	1	50×3.0	BS300×300
Tower	Screw Sleeve Block S			2 pcs
	Steel Base S			2 pcs
	Top Section S			2 pcs
	Manual hoist,BA05 2Tons			2 pcs
	Screw Hinge Section S,Height 1m			2 pcs
	Fibre sling,BA04,2 tons 3m			2 pcs
	Long outrigger			8 pcs
Truss Accessory	Screw and Nuts			whole set

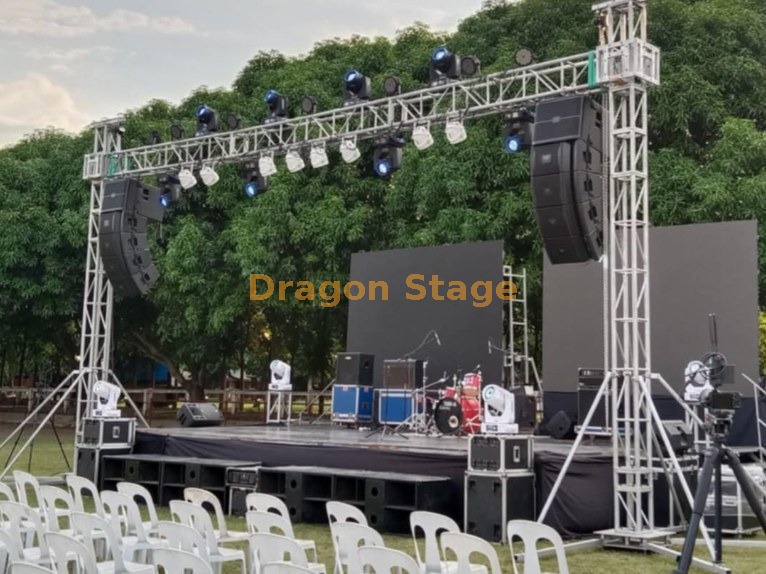

in this project, it is used for lightings and light weight speakers. while, we strongly advise clients to check the load capactiy before using the gentry truss for multifunctional usage. because different truss has different loading capacity for different span and length.
