Pin Vs Bolt – Connection Behavior Under Load

Views: 12 Author: Site Editor Publish Time: 2026-02-22 Origin: Site

Inquire

Pin Vs Bolt – Connection Behavior Under Load

Introduction

Mechanical connections are critical to the integrity and performance of structural systems. They transfer loads between components, ensuring stability and functionality. Among the most common types are pin connections and bolt connections. While both serve as fasteners, their design principles, load-bearing characteristics, and applications differ significantly. This analysis examines their behavior under various loads and provides guidance for selecting the most appropriate connection type in structural design.

Types of Connections

Pin Connections

Pin connections use a cylindrical fastener inserted through aligned holes, permitting rotation or limited sliding. They primarily resist shear forces—loads perpendicular to the pin axis. Common examples include clevis pins, cotter pins, and tapered pins. Their simplicity allows for rapid assembly and disassembly, making them ideal for linkages, hinges, and pivot joints requiring movement.

Bolt Connections

Bolt connections consist of a threaded fastener paired with a nut, clamping components together with significant preload. This design resists both tensile and shear loads. The clamping force creates friction between parts, further supporting shear resistance. Bolted joints provide high rigidity and are suited for permanent or semi-permanent assemblies where fixed, non-moving joints are required.

Load Behavior Analysis

Shear Load Performance

Pin: In double-shear configurations, pins perform efficiently. Failure occurs when shear stress exceeds the material’s yield strength. Load capacity depends directly on the pin’s cross-sectional area and shear strength.
Bolt: Bolts resist shear either through bearing on the shank (similar to a pin) or via friction from preload. For critical shear applications, design emphasizes shank bearing, while preload ensures the joint does not slip under service loads.

Tensile Load Performance

Pin: Standard pins are not intended to carry significant axial tensile loads. Tensile forces can pull the pin out unless retained by clips or cotters, which themselves may be in shear.
Bolt: Bolts are designed to resist tensile loads. Preload clamps the parts, and external tensile loads initially reduce clamping force rather than stressing the bolt directly. Tensile capacity depends on material grade, thread design, and diameter.

Bending and Combined Loads

Both pins and bolts are affected by bending moments, producing uneven stress distribution. Misaligned pins or bolts in joints with gaps may experience bending, reducing effective strength. In combined loading scenarios (shear + tension + bending), properly designed bolted joints typically outperform simple pin joints due to their ability to maintain clamp and resist multiple load types.

Failure Modes

Pin – Wear, Shear, Deformation

Wear/Fretting: Repeated movement causes material loss in pin and hole, increasing clearance and reducing precision.
Shear Failure: Excessive transverse load causes the pin to fracture along shear planes.
Bending/Yielding: Improper fit or misalignment leads to bending and permanent deformation, potentially causing joint binding.

Bolt – Thread Stripping, Breakage, Loosening

Thread Stripping: Failure of threads due to over-torque, insufficient engagement length, or poor material quality.
Tensile Fracture: Bolt failure under excessive tensile load, usually in the threaded region.
Shear Failure: Shank shearing under transverse load.
Loosening: Vibration or dynamic loads may cause nuts to rotate loose, compromising joint integrity. Locking mechanisms (lock nuts, washers) are typically required.

Design Considerations

Material Selection: High-strength steel alloys are standard. Material choice affects strength, weight, corrosion resistance, and cost. Corrosion can significantly degrade both pin and bolt performance.
Size and Tolerance: Diameter determines shear and tensile area. Pin-hole fit tolerance is critical: too loose causes slop and impact loads; too tight complicates assembly. Bolt grade (e.g., 8.8, 10.9) defines strength.
Assembly Method: Proper installation is vital. Pins require secure retention; bolts require controlled torque to achieve correct preload without thread damage.
Maintenance Requirements: Connections in dynamic or corrosive environments require regular inspection for wear, corrosion, looseness, and deformation.

Engineering Applications & Case Studies

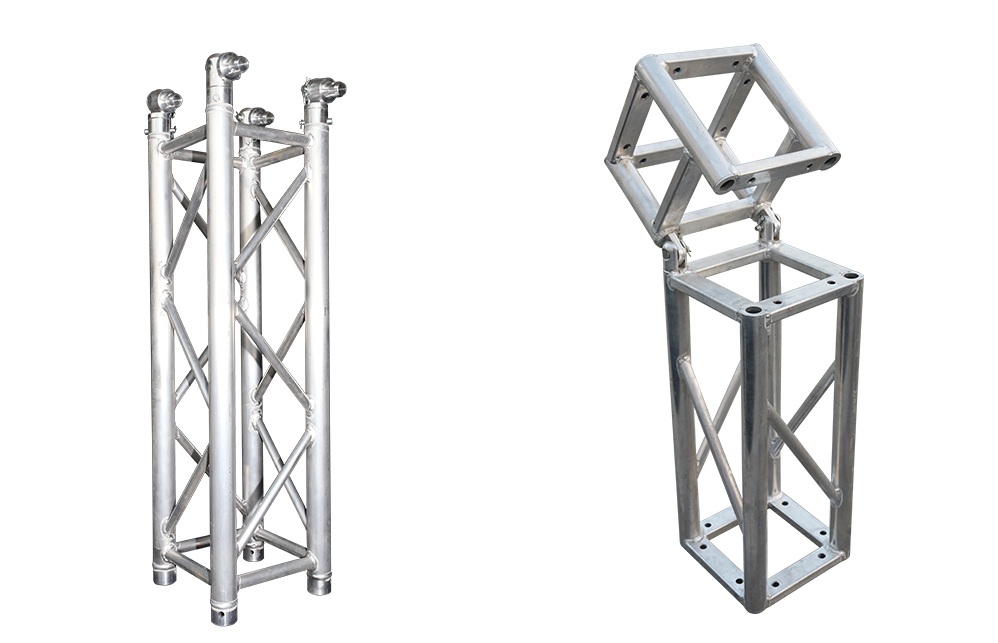

Modular Stage Structures: Pins with cone-and-pin systems handle high shear loads, while bolts secure base plates and bracing attachments for rigidity.
Scaffold or Temporary Constructions: Pin-based systems with locking mechanisms allow rapid, safe assembly; bolts provide rigidity for structural stability.
Mechanical Linkages: Pins are ideal for pivot points in moving arms or hydraulic cylinders; bolts secure stationary frames, gearboxes, and motor mounts.

Conclusion

Selecting between pins and bolts depends on structural requirements. Pins excel in shear-dominant, pivoting, and quick-assembly applications. Bolts are preferable for rigid joints subject to tensile forces, combined loading, and where high clamping is needed. Design decisions should analyze load types, movement requirements, environmental factors, and maintenance needs. Correct selection and installation are fundamental to safe, reliable, and efficient structural performance.
