This 8.54 × 8.54 m portable aluminum quick stage is assembled from 49 modular 1.22 × 1.22 m stage decks. Its adjustable legs provide a finished platform height from 0.6 to 1.0 m.

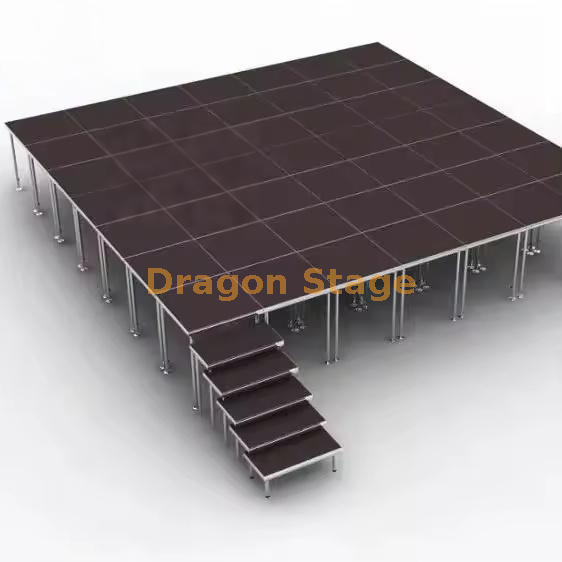

The package includes the stage decks, adjustable legs, leg connectors and two four-step stair units. The modular configuration is suitable for concerts, weddings, corporate events, exhibitions, school performances and other temporary indoor or outdoor applications.
For product selection and quotation, please confirm the intended use, installation surface, required height, equipment placed on the stage and any required accessories such as guardrails, stair handrails, ramps or stage skirting.
This 8.54m x 8.54m portable stage platform is a highly versatile and professional staging solution designed for both indoor and outdoor events. Constructed from high-quality, lightweight yet robust aluminum alloy, the modular design ensures quick, Designed for fast assembly with a simple modular connection system, and breakdown, saving you valuable time and labor.
The system includes multiple 4ft x 4ft (approx. 1.22m x 1.22m) stage decks with an exterior-rated, anti-slip dark brown or black surface to ensure
safety and stability for performers and presenters. The adjustable-height legs (height range can be specified based on your product) make it adaptable to uneven ground or various elevation needs.
Key Features:
Dimensions: 8.54m (Length) x 8.54m (Depth) configuration
Material: Durable aluminum alloy frame
Surface: Weather-resistant, anti-slip plywood deck surface
Portability: Modular components for easy transport and compact storage
Versatility: Suitable for a wide range of applications, including concerts, corporate events, trade shows, and school functions
packing weight:1560kg
packing volume:8cbm
| Item | Specification | Quantity |
| stage topping | topping sizes(LXW): | 1.22x1.22m | 49 pcs |
| topping material: | wooden |
| stage legs | adjustable height: | 0.6-1 | 196 pcs |
| stage Leg connectors | Connector for 4 legs | 36 pcs |
| Connector for 2 legs | 24 pcs |
| Stage Stair | wooden topping | total | 4 | steps | 2 pcs |
8.54 × 8.54 m Portable Aluminum Quick Stage
This portable quick stage provides a finished platform measuring 8.54 × 8.54 m. It is built from 49 individual stage decks, each measuring 1.22 × 1.22 m, arranged in a 7 × 7 modular layout.
The modular system allows the components to be dismantled for transportation and storage and reassembled for temporary events. Its adjustable legs provide a platform height range of 0.6–1.0 m.
Standard Package
The listed configuration includes:
49 wooden stage decks, each measuring 1.22 × 1.22 m
196 adjustable stage legs
36 four-leg connectors
24 two-leg connectors
Two wooden four-step stair units
Standard connection components required for the listed configuration
The stated packing information is approximately:
Packing weight: 1,560 kg
Packing volume: 8 m³
Final packing information should be confirmed before shipment because packaging arrangements may vary according to the order and transportation requirements.
Adjustable Stage Height
The supporting legs can be adjusted within the specified 0.6–1.0 m height range. This allows the customer to select an appropriate platform height and make limited leveling adjustments during installation.
The stage must still be installed on firm and stable supporting ground. Adjustable legs should not be treated as a substitute for proper site preparation.
Stage Deck Surface
The stage uses wooden deck panels with an anti-slip surface. Available surface colors and the exact deck material should be confirmed before ordering.
For outdoor applications, the intended exposure conditions and maintenance requirements should be discussed before selecting the deck finish.
Typical Applications
This stage configuration may be used for:
Concerts and live performances
Weddings and ceremonies
Corporate presentations
Exhibitions and trade shows
School and community events
Temporary indoor or outdoor event platforms
The appropriate configuration depends on the number of people, equipment, stage height, access requirements and installation environment.
Optional Accessories
Depending on the application, optional accessories may include:
Optional accessories should be confirmed separately and should not be assumed to be included unless they appear in the itemized quotation.
Information Required for a Quotation
Please provide:
Event type and intended use
Required stage size
Required platform height
Indoor or outdoor installation
Ground or floor conditions
Number of performers
Equipment placed on the stage
Required stairs, guardrails, ramps or skirting
Destination country or city
Dragon Stage will use this information to recommend an appropriate product configuration and prepare an itemized quotation.
