Dragonstage
packing weight:6550kg
packing volume:74cbm
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 24.00 m Beam(front) | 4 sets | 3.00 m | 50×4.0 | CS600×760 | 32pcs | |||
| 2.00 m | 50×4.0 | CS600×760 | 0pcs | |||||
| 1.00 m | 50×4.0 | CS600×760 | 0pcs | |||||
| 24.00 m Beam(side) | 2 sets | 3.00 m | 50×4.0 | CS600×760 | 16pcs | |||
| 2.00 m | 50×4.0 | CS600×760 | 0pcs | |||||
| 1.00 m | 50×4.0 | CS600×760 | 0pcs | |||||
| 5.00 m Pillar | 8 sets | 3.00 m | 50×3.0 | CS450×450 | 8pcs | |||
| 2.00 m | 50×3.0 | CS450×450 | 8pcs | |||||
| 1.00 m | 50×3.0 | CS450×450 | 0pcs | |||||
| beam cube | 6 faces | CS600×760 | 0pcs | |||||
| Frame Tower | Spigot Sleeve Block L | 8pcs | ||||||
| Steel Base L | 8pcs | |||||||
| Top Section L | 8pcs | |||||||
| Manual hoist,BA05 2Tons | 8pcs | |||||||
| Spigot Hinge Section,Height 1m | 8pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 8pcs | |||||||
| Long outrigger | 32pcs | |||||||
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| Roof Pillar | 4 sets | 2.40 m | 50×3.0 | CS389×389 | 4pcs | |||
| 24.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 12.20 m Oblique Beam | 8 sets | 3.00 m | 50×3.0 | CS389×389 | 24pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 8pcs | |||||
| 1.20 m | 50×3.0 | CS389×389 | 8pcs | |||||
| 12.20 m Ladder truss | 18 sets | 3.00 m | 50×3.0 | CL40,389*50 | 54pcs | |||
| 2.00 m | 50×3.0 | CL40,389*50 | 18pcs | |||||
| 1.20 m | 50×3.0 | CL40,389*50 | 18pcs | |||||
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS389×389 | 2pcs | ||||
| 5 | roof conner 5 ways, use for roof beam truss | CS389×389 | 2pcs | |||||
| 1 | Connect plate with clamp | CS389×389 | 4pcs | |||||
| Single clamp | 36pcs | |||||||
| Double clamp | 16pcs | |||||||
| roof canopy material:pvc, Blue Colour or customized. | 790.56 | 1pcs | ||||||

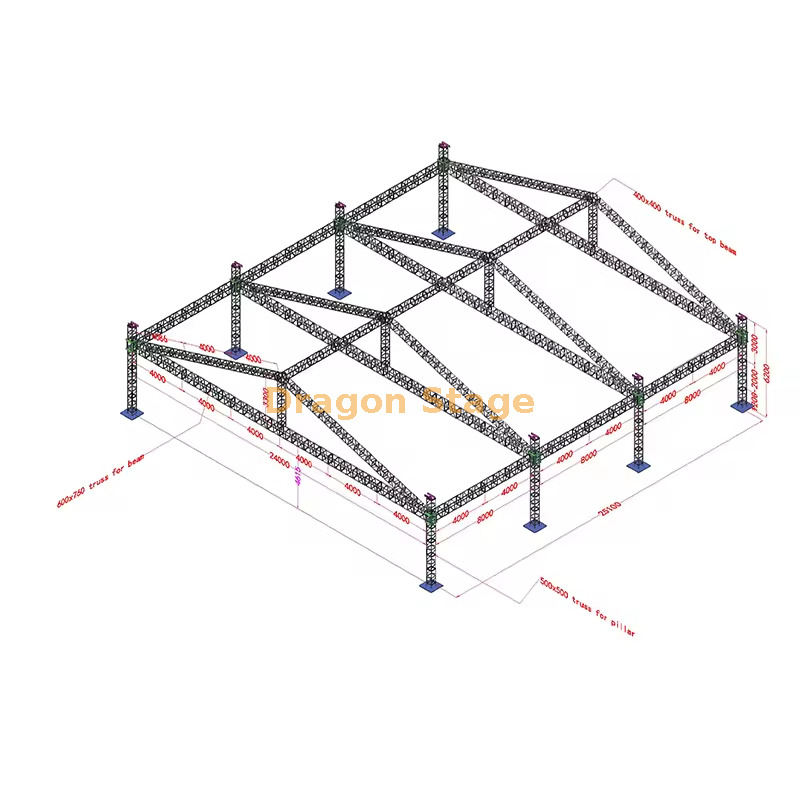

The 24m × 24m × 6m Large Square Peak Roof Truss System is an impressive, symmetrical roofing solution engineered for major outdoor festivals, concerts, sporting events, and large-scale corporate gatherings.
Featuring a perfect square footprint with a classic peaked roof design for superior water runoff and wind resistance, this heavy-duty system delivers a massive 24-meter width, 24-meter depth, and 6-meter internal height with outstanding uniformly distributed load capacity. Built entirely from high-strength 6061-T6 aluminum alloy spigot truss (including 400×400mm and 600×600mm sections for beams and pillars), it provides extensive rigging points across the full canopy area – ideal for complex lighting rigs, multiple LED screens, line-array PA systems, and special effects.
Fast conical connector assembly, reinforced corner and intermediate towers, full top bracing, and ground-supported design ensure maximum safety and rapid setup by experienced crews. Optional PVC canopy available for complete weather protection.
Trusted by top international rental companies when a huge, stable, and visually striking square roof is required to cover expansive performance areas with reliability and professional elegance.
For the largest outdoor festivals, stadium-scale concerts, and massive corporate conventions, the stage structure must be a masterpiece of engineering. The 24x24m Large Square Peak Roof Truss System by DragonStage is a titan in the industry, providing a staggering 576 square meters of covered performance area. Featuring a unique square-peak geometry and a 6-meter vertical clearance, this system is engineered for elite production requirements that demand expansive clear spans. By utilizing high-strength aluminum and a precision spigot-connection framework, this system delivers the architectural scale of a permanent venue with the flexibility of a modular rig.
The primary challenge for a 24-meter clear span is structural deflection—managing the natural tendency of a long beam to "bow" under its own weight and rigged equipment. DragonStage solves this by utilizing 6061-T8 aluminum alloy, which offers significantly higher hardness and yield strength than standard T6 alloys, ensuring the 24-meter horizontal beams remain rigid. Another critical pain point is the "sail effect" of a 576sqm canopy in high winds. Our solution features a reinforced 6-tower or 8-tower ground support system with specialized outriggers and ballast attachments to provide a secure center of gravity. To prevent water accumulation, the Square Peak roof design ensures high-velocity water runoff, protecting millions of dollars in technical equipment from moisture.
The 24x24m system is manufactured from aerospace-grade 6061-T8 aluminum alloy. This specialized material is solution heat-treated and cold-worked to provide the ultimate strength-to-weight ratio, making it the premier choice for stadium-scale rigging (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).
The system utilizes a high-precision spigot (conical) connection. According to international safety standards for massive temporary structures, the spigot system is superior for high-vibration concert environments as it creates a solid, unified union that eliminates "play" in the joints, significantly faster than traditional bolt-trussing (Source:https://www.prolight-sound.com).
To ensure a complete venue environment, this trussing is designed for seamless integration with our modular aluminum stage platforms. These decks feature 18mm anti-slip surfaces and massive load-bearing capacities, providing a stable foundation that matches the industrial grade of the overhead peak roof (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).
Q: Does a 24m span require middle pillars?A: This system is engineered as a clear-span structure; however, for maximum load-bearing at 24 meters, we utilize reinforced heavy-duty box truss profiles to ensure safety without obstructing the stage view.
Q: Can this 6-meter structure support stadium-scale LED screens?A: Yes. The 6061-T8 heavy-duty truss is specifically engineered for high-capacity rigging. For your specific screen weight, please contact our engineers for a verified load-calculation report.
Q: Is the PVC canopy fire-retardant?A: Absolutely. Our canopies are made from 850g/m² PVC that is waterproof, UV-resistant, and meets international B1/M2 fire-retardant safety standards.
Q: How do we raise a 24x24m grid?A: Due to the massive scale and weight, we strongly recommend using synchronized 2-ton electric chain hoists with a centralized motor controller to ensure a safe, level lift.
Build your most ambitious production on a foundation of elite engineering and industrial safety. Contact DragonStage’s engineering team today for a custom quote on the 24x24m Large Square Peak Roof Truss System. Download our technical specifications and start planning your stadium-scale event today.
