20x16m Heavy-Duty Peak Roof Truss Stage System with Backstage Rooms & Dressing Cabins (Aluminum Spigot Truss)

5 0 Reviews

20m×16m peaked roof truss stage with integrated backstage rooms, dressing cabins & control booth. Complete professional outdoor concert setup.

Price: ￥ 42220 - 170916


fea:	outside truss system 20x16x12m inside truss system 15x12x9m
Availability:



Inquire

Brand:
Dragonstage

Product Description

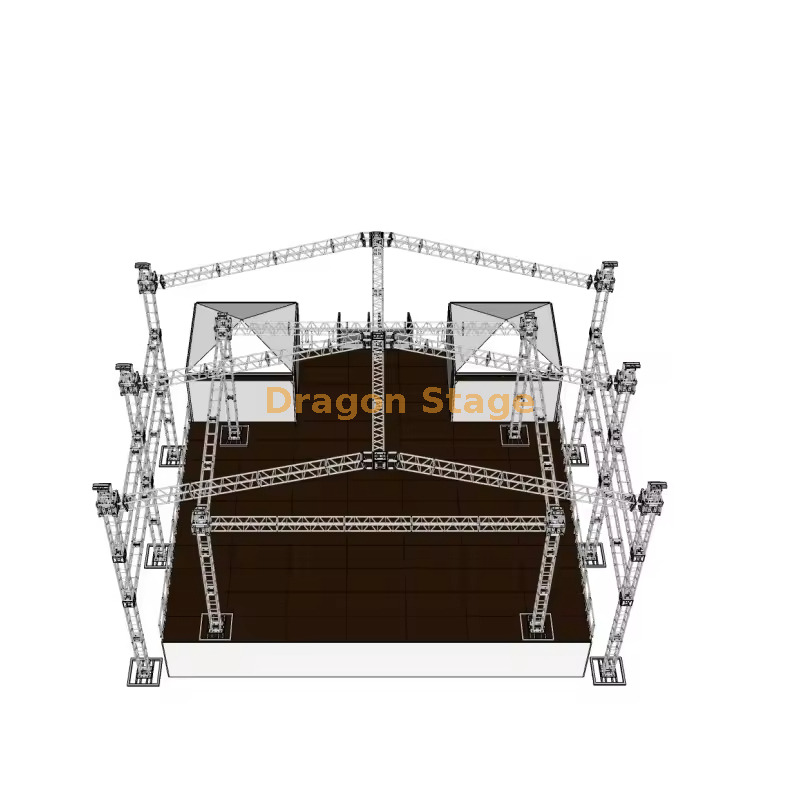

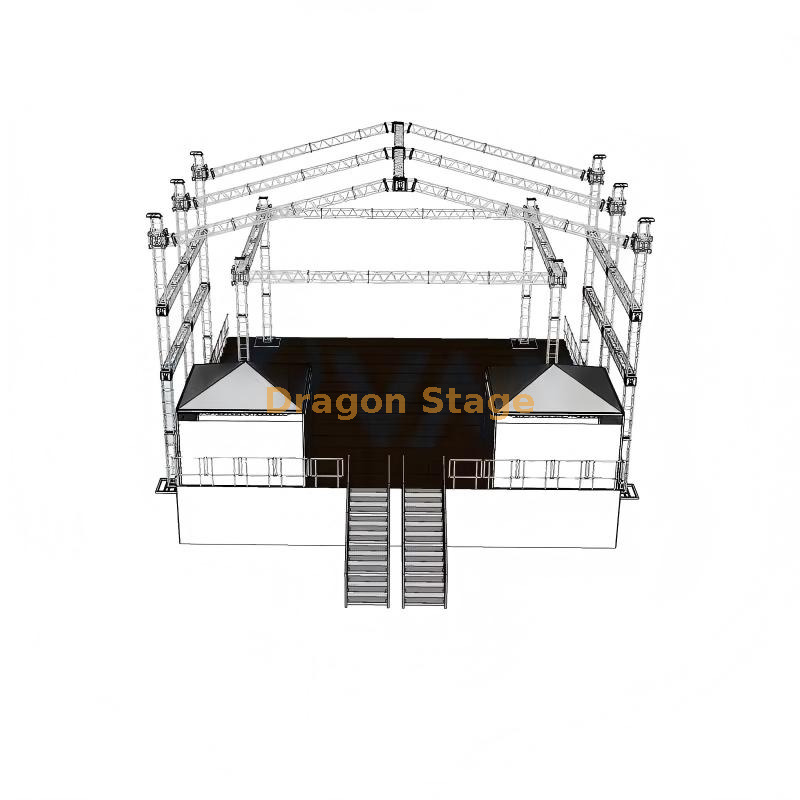

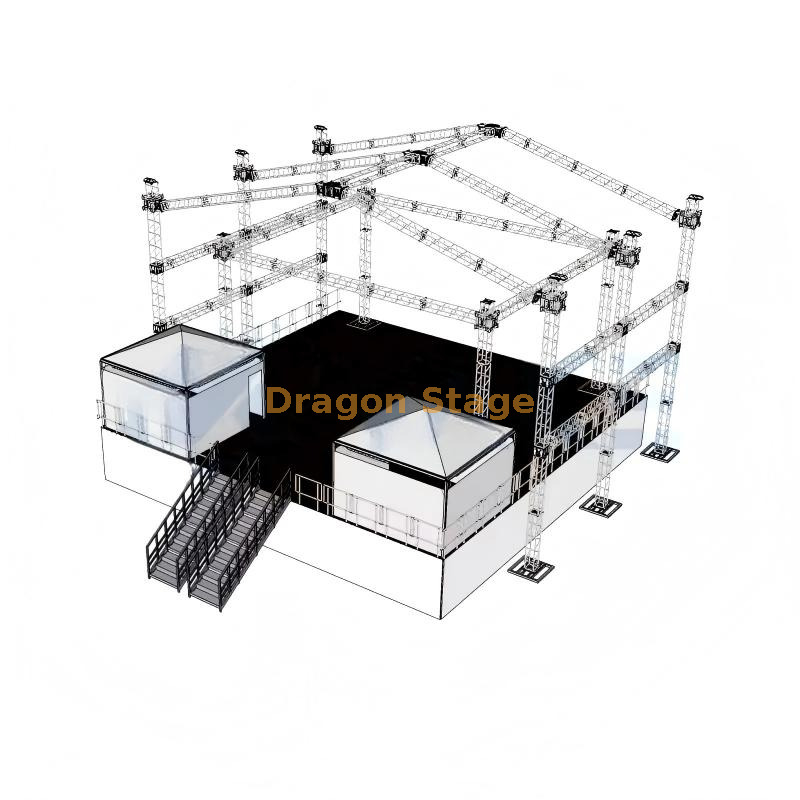

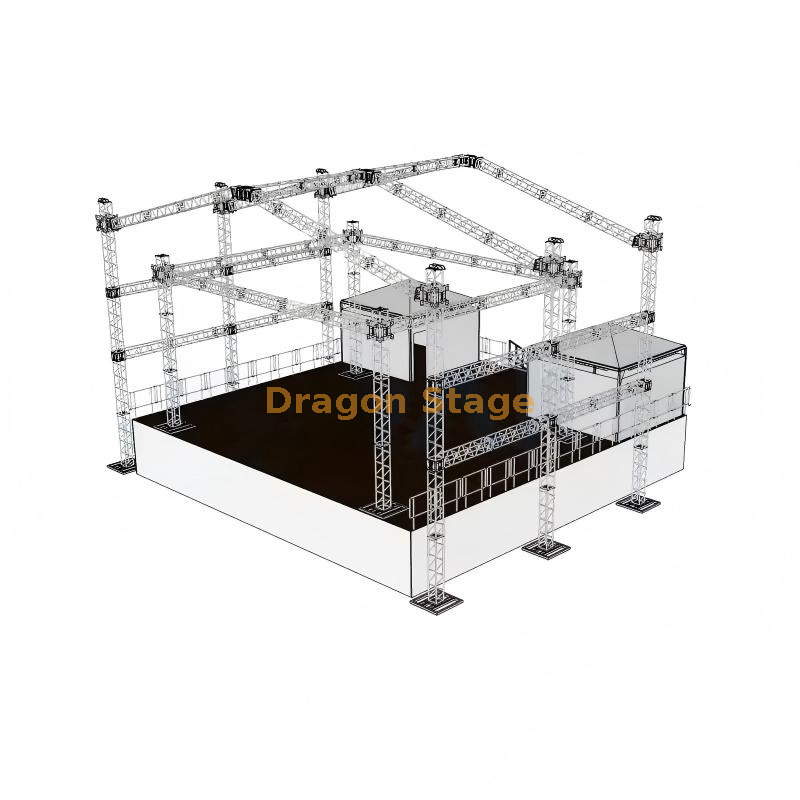

20x16m Heavy-Duty Peak Roof Truss Stage System with Backstage Rooms & Dressing Cabins (3)

outside truss system 20x16x12m

packing weight:3700kg

packing volume:35cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
20.00 m Beam(front)	sets	3.00 m	50×3.0	CS500×600	0pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	0pcs
16.00 m Beam(side)	4 sets	3.00 m	50×3.0	CS500×600	16pcs
		2.00 m	50×3.0	CS500×600	8pcs
		1.00 m	50×3.0	CS500×600	0pcs
11.00 m Pillar	6 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	12pcs
		1.00 m	50×3.0	CS389×389	6pcs
beam cube	6 faces	CS500×600			12pcs
Frame Tower	Spigot Sleeve Block M				6pcs
	Steel Base M				6pcs
	Top Section M				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	sets	2.00 m	50×3.0	CS389×389	0pcs
16.00 m Top Beam	1 sets	3.00 m	50×3.0	CS389×389	4pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
10.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	6pcs
		2.20 m	50×3.0	CS389×389	6pcs
10.20 m Ladder truss	12 sets	3.00 m	50×3.0	CL40,389*50	24pcs
		2.00 m	50×3.0	CL40,389*50	12pcs
		2.20 m	50×3.0	CL40,389*50	12pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS389×389	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS389×389	1pcs
	1	Connect plate with clamp		CS389×389	0pcs
		Single clamp			24pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		480.16	1pcs

inside truss system 15x12x9m

packing weight:1200kg

packing volume:13.5cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
15.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS389×389	10pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
12.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
8.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	6 faces	CS389×389			0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs

The 20m × 16m Heavy-Duty Peak Roof Truss Stage System is a fully integrated professional outdoor performance solution that combines a large main stage with practical backstage facilities – perfect for major concerts, festivals, theater productions, and corporate events.

The main stage features a generous 20-meter front width, 16-meter depth, and high-clearance peaked roof supported by robust aluminum spigot truss towers, providing ample space and rigging points for extensive lighting, LED screens, and line-array sound systems. Integrated directly into the structure are multiple enclosed backstage areas including dressing rooms, production cabins, and a control/mixing booth – all constructed within the truss framework for seamless functionality and security.

Built from certified 6061 aluminum with fast conical connectors, this ground-supported system offers exceptional load capacity, wind resistance, and rapid assembly while eliminating the need for separate tents or trailers. The complete package includes raised stage platform, access stairs, safety railings, and optional PVC canopy.

Ideal for touring productions and rental companies that demand a turnkey stage with professional backstage amenities in one efficient, transportable system – delivering superior performer comfort, production efficiency, and audience experience in any outdoor venue.
