14x10x9m Peak Roof Truss System with Dual 3m Speaker Wings (Aluminum Spigot Truss Stage Roof)

5 0 Reviews

14m×10m×9m peaked roof truss with 2×3m PA wings & blue PVC canopy. Professional outdoor stage system for concerts, festivals & events.

Price: ￥ 89850


Availability:



Inquire

Brand:
Dragonstage

Product Description

packing weight:2300kg

packing volume:13cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
14.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
10.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	6pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	2pcs
8.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	6 faces	CS389×389			0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.40 m	50×3.0	CS289×289	2pcs
10.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	3pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	1pcs
7.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.20 m	50×3.0	CS289×289	4pcs
7.20 m Ladder truss	8 sets	3.00 m	50×3.0	CL30,289*50	16pcs
		2.00 m	50×3.0	CL30,289*50	0pcs
		1.20 m	50×3.0	CL30,289*50	8pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			16pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		241.36	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
3.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS389×389	2pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
8.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
Wings Tower	Spigot Sleeve Block S				2pcs
	Steel Base S				2pcs
	Top Section S				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

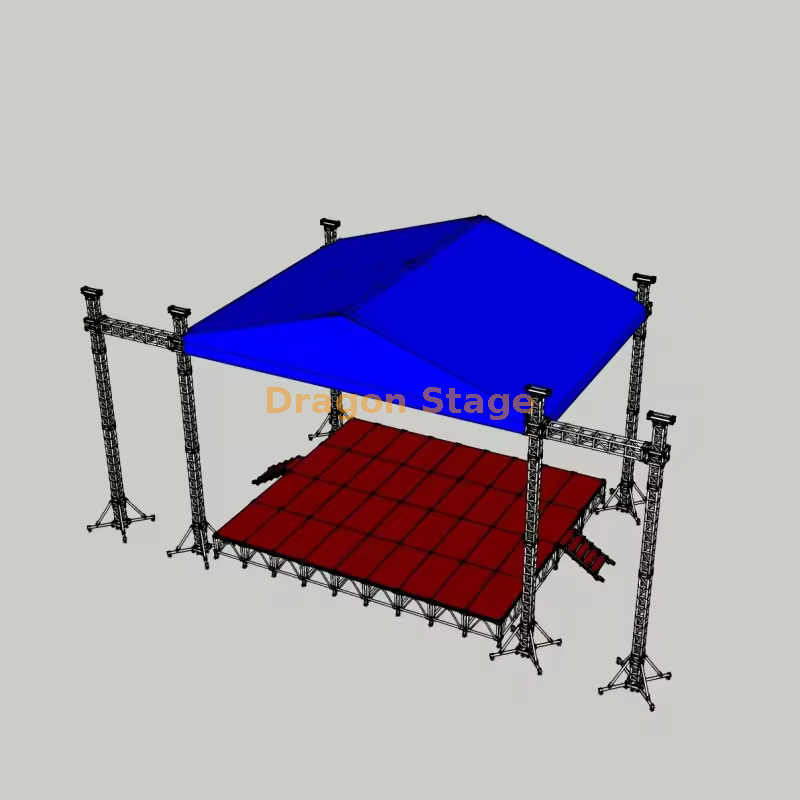

The 14m × 10m × 9m Peak Roof Truss System with Dual 3m Speaker Wings is a complete, high-performance outdoor stage solution ideal for mid-to-large concerts, music festivals, corporate events, and regional tours.

Featuring a classic peaked roof design covered with durable blue PVC canopy for excellent weather protection and wind resistance, this aluminum spigot truss system provides a spacious 14-meter front width, 10-meter depth, and generous 9-meter internal pillar height. The integrated 3-meter side wings on both left and right allow direct hanging of line-array speakers, side lighting, or LED screens without requiring additional towers.

Built from certified 6082-T6 aluminum with fast conical connectors, reinforced corner towers, outriggers, and full bracing, it offers impressive load-bearing capacity and rapid ground-supported assembly. The included raised stage platform with non-slip surface and access stairs completes the turnkey package.

Trusted by professional rental companies for its reliability, quick setup, clean modern appearance, and built-in PA support – this 14×10×9m peaked roof system delivers outstanding value and performance for any outdoor production needing protection from the elements and superior audio-visual integration.
