Aluminum Pitched Roof Truss for Concert Event 60x50x30ft

packing weight:4150kg

packing volume: 37cbm

packing weight: 6700kg

packing volume: 46cbm

Aluminum Pitched Roof Truss for Concert Event 60x50x30ft: Certified Heavy-Duty System

1. Introduction: The Foundation of Large-Scale Live Production

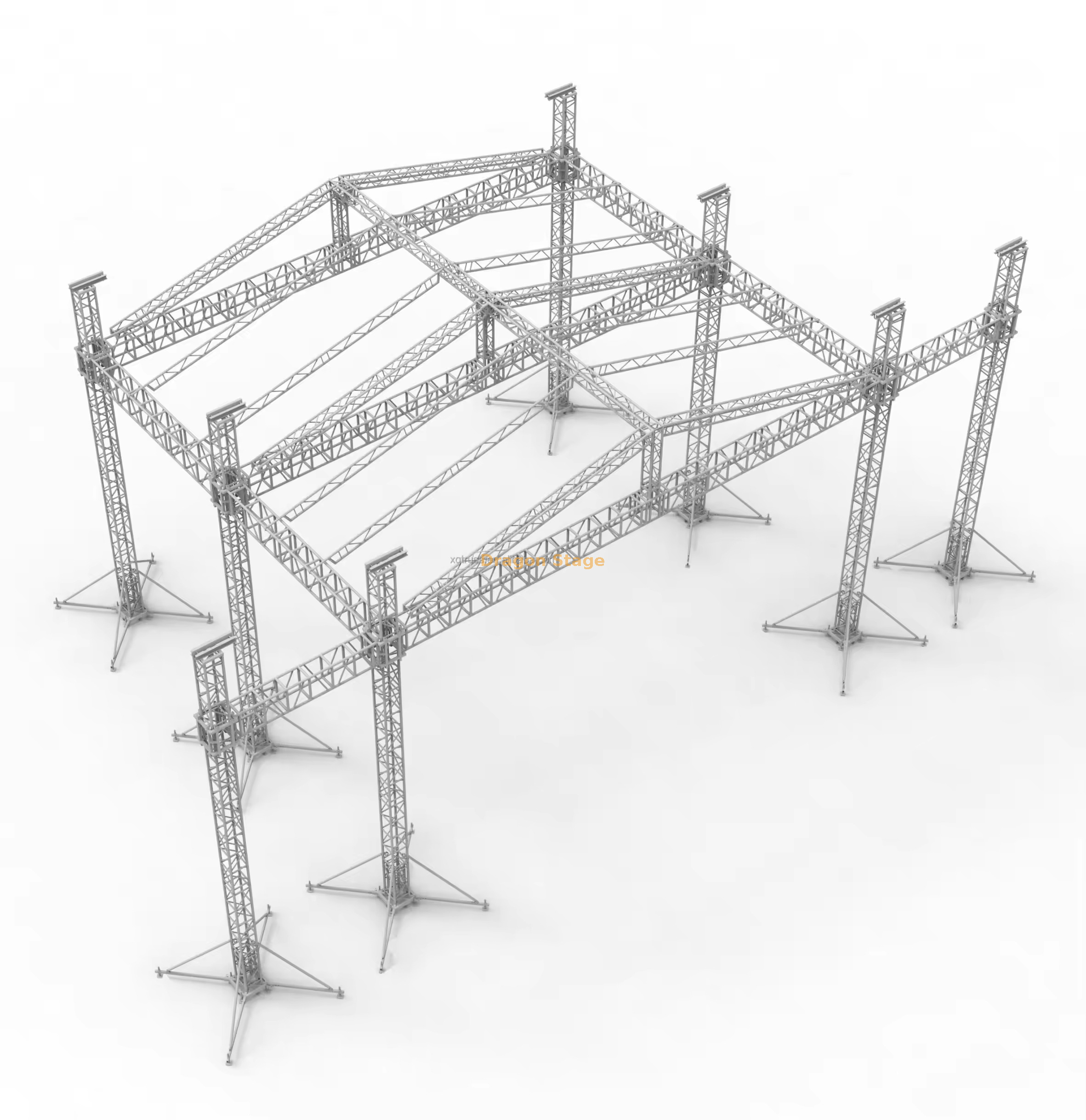

In the world of professional entertainment and large-scale public gatherings, the Aluminum Pitched Roof Truss for Concert Event from DragonStage stands as a benchmark for high-capacity, heavy-duty staging systems. Sized at an impressive 60ft wide x 50ft deep (18m x 15m) with a commanding 30ft (9m) clear height, this structure is engineered for maximum visual impact and unparalleled technical support. It is the definitive choice for event organizers and contractors who demand a robust, reliable system capable of supporting extensive lighting rigs, large format LED screens, and high-performance audio line arrays.

This aluminum pitched roof truss system combines a massive, modular stage deck (16x14m) with a structurally certified roof grid, designed to protect valuable equipment and performers from severe weather. Utilizing premium-grade truss profiles and an efficient ground support mechanism, this heavy-duty event truss 60x50ft ensures safety, efficiency, and scale for world-class productions.

2. Challenges & Solutions in Modern Event Construction

Executing a large-scale concert or outdoor festival requires overcoming critical logistical and engineering challenges, particularly managing extreme loads, high wind forces, and rapid, safe deployment. Standard truss systems often lack the certified capacity and integrated components needed to safely span 18 meters while supporting modern production weight requirements.

DragonStage addresses these issues with engineered precision. The system utilizes a combination of CS500x600 heavy-duty truss for the main spans and CS350x350 truss for the pillars, guaranteeing a superior strength-to-weight ratio that handles complex rigging loads with confidence. Furthermore, the 6-pillar sloping flat roof truss design includes 24 Long Outriggers and a comprehensive ground support system, significantly enhancing structural stability and wind resistance (Source:https://www.dragontruss.com/Certificate). This commitment to high-spec components mitigates major project risks, a key focus for industry bodies emphasizing structural safety in temporary demountable structures (Source:https://www.lsionline.com).

3. Key Features & Benefits

The 60x50x30ft Pitched Roof Truss System delivers a highly efficient, safety-compliant solution through a suite of integrated professional features.

Advanced Structural Components

The core load-bearing structure leverages robust main tubes (50mm x 3.0mm) and premium truss profiles. Specifically:

• Roof Grid: Built with powerful CS500x600 square truss for the main 18.00m spans.

• Vertical Pillars: Constructed from reliable CS350x350 square truss and secured by 6 sets of Sleeve Block (M), Steel Base (M), and Top Section (M) components, ensuring certified capacity transfer to the ground.

• Spigot Connection Truss: Uses the Conical coupler & Safrty clip & pin mechanism for quick, reliable connection across all modular elements, drastically reducing assembly time while maintaining high joint strength.

Integrated Stage and Sound Wings

This system includes a dedicated 16x14m modular stage platform with 112 pieces of 4x8ft (1x2m) wooden topping stage decks, providing a vast and stable performance area. Crucially, the structure is pre-engineered for audio support, featuring speaker sound wings 3m wide constructed from the same heavy-duty CS500x600 truss. These wings ensure optimal placement of line array speaker systems, guaranteeing superior sound coverage and further reducing the need for separate PA tower rentals.

Enhanced Safety and Weather Protection

The sloping flat roof truss design is highly effective for diverting rain and debris, protecting sophisticated and expensive lighting and sound equipment mounted on the roof grid. The extensive 412.56 sqm PVC roof canopy is provided in standard blue or can be customized to match branding. For lifting the massive roof structure, the system includes 6 sets of 2-Ton Manual Hoists (BA05), ensuring controlled and safe elevation of the truss grid during assembly and load-in phases.

4. Practical FAQ for Stage Professionals

Q: What is the benefit of the CS500x600 truss profile?A: This heavy-duty truss profile is optimized for long spans (like the 18m beam) and high point loads, offering significantly greater strength and reduced deflection compared to smaller truss series.

Q: Can the manual hoists be swapped for electric chain motors?A: Yes, the Spigot Sleeve Blocks are designed to be compatible with standard 2-Ton electric chain motors, allowing for mechanized, push-button lifting of the roof structure.

Q: How is the system packaged and transported?A: The entire structure is modular, with a total packing weight of 6700kg and a volume of 46CBM, facilitating consolidated freight shipping and efficient site logistics.

Q: What type of ground securing is required?A: Due to the scale of the structure, proper anchoring and ballast are mandatory, leveraging the 24 Long Outriggers. We provide detailed load calculation documentation, which must be approved by a local structural engineer for safe outdoor operation.

5. Strong Call to Action (CTA)

Elevate your event production with the maximum safety and structural capacity of the DragonStage Aluminum Pitched Roof Truss for Concert Event 60x50x30ft.

Download detailed load tables and contact DragonStage’s engineering team for your custom truss solution and project consultation.
