packing weight: 1800kg
packing volume: 14cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 9.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 9.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 6.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| beam cube | Spigotcube 289x289 | 2pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | .90 m | 50×3.0 | CS289×289 | 3pcs |
| 9.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 3pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 4.70 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.70 m | 50×3.0 | CS289×289 | 4pcs |
| 4.70 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL30,289*50 | 8pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 1.70 m | 50×3.0 | CL30,289*50 | 8pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 1pcs |
| Connect plate with clamp | 3pcs |
| Single clamp | 16pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 150.06 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 3.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 6.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
packing weight；1500kg
packing volume: 9.5cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 21 pcs |
| 1.22m stage brace | 28 pcs |
| 2.44m stage brace | 24 pcs |
| stand with extendable tube | 32 pcs |
| Stage adjustable base | 32 pcs |
| Stage Stair | wooden topping | total | 8 | steps | adjustable to the stage height | 2 pcs |

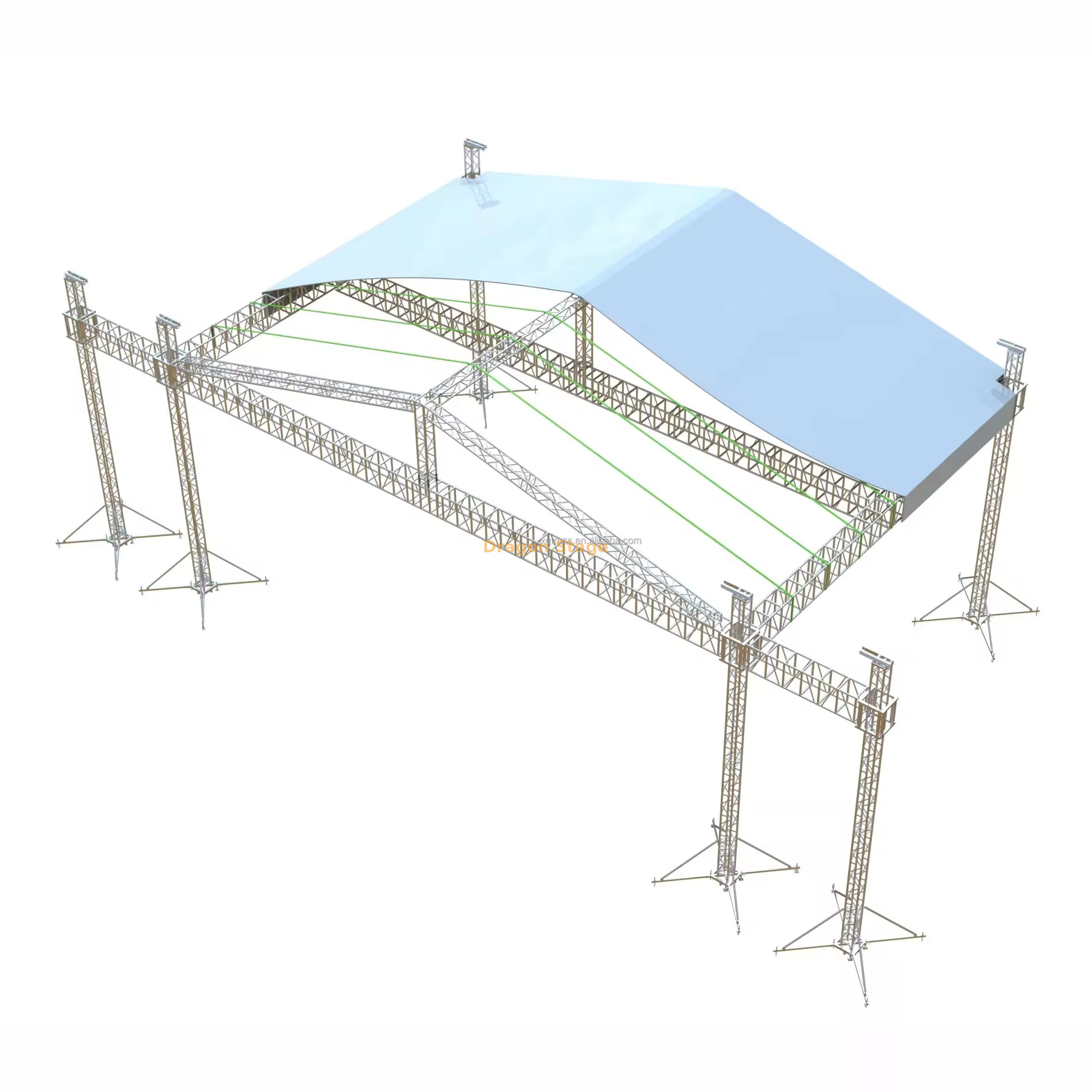

Professional 9x9x7m Aluminum Portable Outdoor Roof Truss System with 2 Side Wings
1. Introduction
In the world of regional festivals and mid-sized concert productions, the 9x9x7m Aluminum Portable Outdoor Roof Truss by DragonStage is the industry standard for versatility and professional scale. Providing 81 square meters of covered performance space and a commanding 7-meter vertical clearance, this system is engineered to deliver a high-impact visual presence. The inclusion of two specialized side wings allows for the seamless suspension of professional line array audio systems, keeping the main stage clear and optimizing sound distribution. For event organizers, this system provides the perfect balance between a massive "main stage" feel and the efficiency of a portable, modular rig.
2. Challenges & Solutions
A common challenge for outdoor stages is the safe integration of heavy audio equipment without cluttering the performance area. DragonStage solves this by incorporating two dedicated side wings into the structural design, providing stable hanging points for line arrays that are independent of the main lighting grid. Another significant hurdle is managing environmental variables like heavy rainfall; a flat roof can lead to dangerous water accumulation. Our 9x9m system features a pitched roof geometry and high-tension PVC that ensures immediate water runoff. For setups on unpaved festival grounds, the 4-tower ground support system includes heavy-duty adjustable leveling jacks to ensure the 7-meter pillars remain perfectly plumb and stable on any terrain.
3. Key Features & Benefits
The 9x9x7m system is manufactured from aerospace-grade 6061 aluminum alloy. This material is globally recognized for its superior strength-to-weight ratio and natural resistance to corrosion, ensuring the structure remains a long-term professional asset (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).
The structure utilizes a modular ground-support design, allowing the entire 9x9m grid to be rigged with lighting and cabling at waist height before being safely hoisted to its 7-meter peak. According to international safety standards for temporary structures, this method significantly reduces the risks associated with working at height and ensures a faster, more efficient setup (Source:https://www.prolight-sound.com).
To provide a comprehensive venue solution, this trussing is designed for perfect compatibility with our modular aluminum stage platforms. These decks feature 18mm anti-slip surfaces and high load-bearing capacities, providing a secure and professional foundation that matches the overhead rig (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).
4. FAQ Section
Q: How much weight can the side wings support?A: Each side wing is reinforced to support professional line array speaker systems. Please contact our engineering team with your specific audio weight for a verified load-bearing calculation.
Q: Can this 9m span support a heavy LED screen?A: Yes. The 6061 aluminum box truss is designed for high-capacity rigging. We recommend a distributed load approach for optimal stability.
Q: Is the PVC canopy fire-retardant and waterproof?A: Absolutely. Our canopies are made from 850g/m² PVC that is waterproof, UV-resistant, and meets B1/M2 fire-retardant safety standards.
Q: How many people are needed for assembly?A: A professional crew of 3–4 people can typically assemble and hoist the full 9x9x7m system in approximately 4 to 6 hours.
5. Strong Call to Action (CTA)
Ensure your next production is built on a foundation of professional engineering and structural safety. Contact DragonStage’s engineering team today for a custom quote on the 9x9x7m Outdoor Roof Truss System with Side Wings. Download our technical specifications and start planning your most successful concert season yet.
