| Features: | |
|---|---|

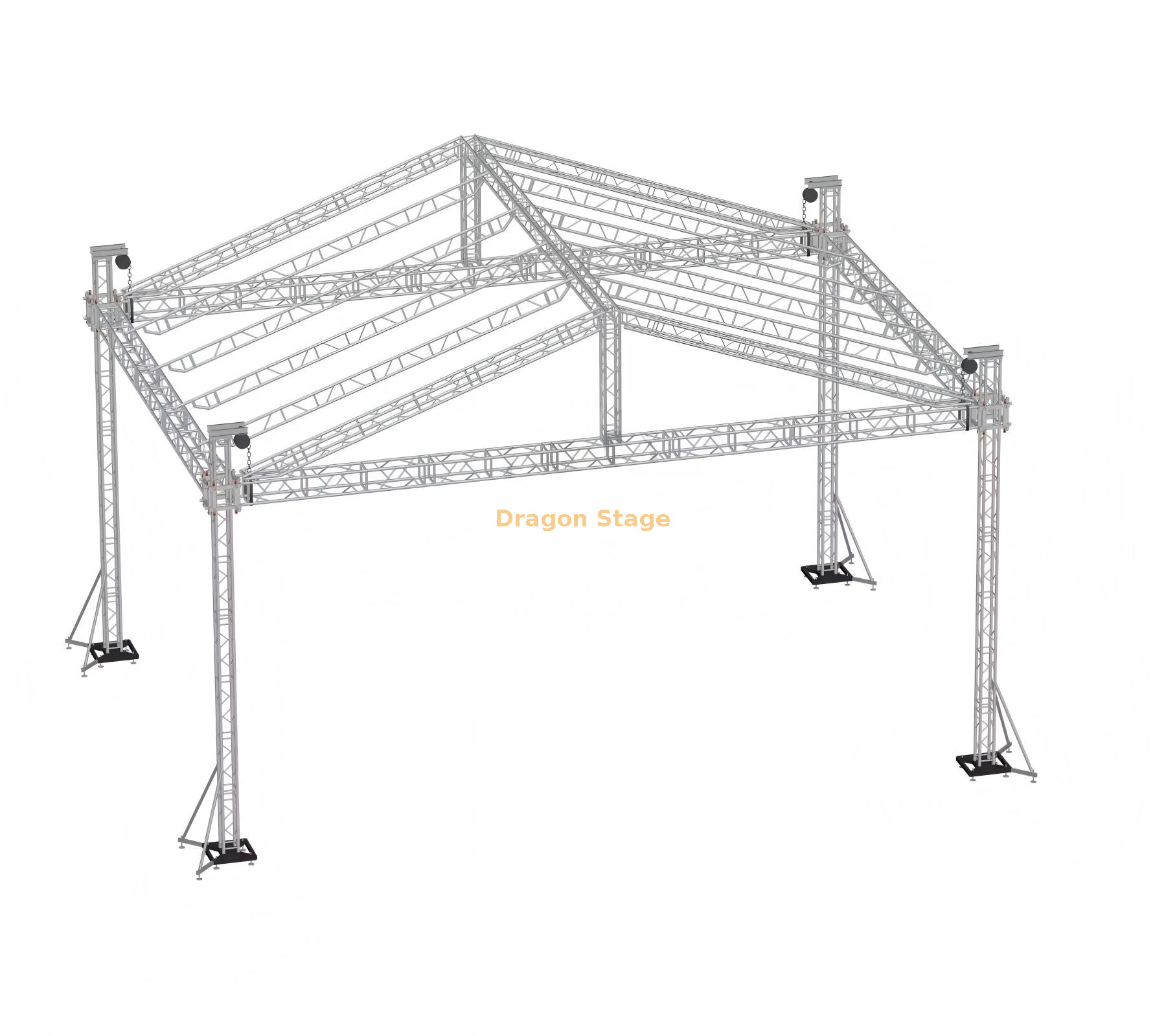

Dragon Stage
packing weight: 3500kg
packing volume: 37cbm
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 24.00 m Beam(front) | 2 sets | 3.00 m | 50×4.0 | CS600×760 | 16pcs | |||
| 2.00 m | 50×4.0 | CS600×760 | 0pcs | |||||
| 1.00 m | 50×4.0 | CS600×760 | 0pcs | |||||
| 10.00 m Beam(side) | 2 sets | 3.00 m | 50×4.0 | CS600×760 | 6pcs | |||
| 2.00 m | 50×4.0 | CS600×760 | 0pcs | |||||
| 1.00 m | 50×4.0 | CS600×760 | 2pcs | |||||
| 9.00 m Pillar | 4 sets | 3.00 m | FALSE | CS450×450 | 12pcs | |||
| 2.00 m | FALSE | CS450×450 | 0pcs | |||||
| 1.00 m | FALSE | CS450×450 | 0pcs | |||||
| Frame Tower | Spigot Sleeve Block L | 4pcs | ||||||
| Steel Base L | 4pcs | |||||||
| Top Section L | 4pcs | |||||||
| Manual hoist,BA05 2Tons | 4pcs | |||||||
| Spigot Hinge Section,Height 1m | 4pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
| Long outrigger | 16pcs | |||||||
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| Roof Pillar | 2 sets | 2.40 m | 50×3.0 | CS289×289 | 2pcs | |||
| 10.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 3pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 1pcs | |||||
| 12.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 12pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
| 1.20 m | 50×3.0 | CS289×289 | 4pcs | |||||
| 12.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL30,289*50 | 24pcs | |||
| 2.00 m | 50×3.0 | CL30,289*50 | 8pcs | |||||
| 1.20 m | 50×3.0 | CL30,289*50 | 8pcs | |||||
| Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
| Connect plate with clamp | 2pcs | |||||||
| Single clamp | 16pcs | |||||||
| Double clamp | 8pcs | |||||||
| roof canopy material:pvc, Blue Colour or customized. | 415.36 | 1pcs | ||||||
packing weight: 4350kg
packing volume: 28cbm
| Item | Specification | Quantity | |||
| Aluminium assembly stage | topping: 4x8ft (1.22x2.44m) | wooden | 72 pcs | ||
| 1.22m stage brace | 80 pcs | ||||
| 2.44m stage brace | 81 pcs | ||||
| stand with extendable tube | 90 pcs | ||||
| Stage adjustable base | 90 pcs | ||||
| Stage Stair | wooden topping | total | 8 | steps | 2 pcs |
For large-scale festivals, high-profile concerts, and massive corporate tours, the stage must be both a commanding visual landmark and a high-capacity engineering marvel. The 24x10x10m Aluminum Portable Event Stage with Roof Truss by DragonStage offers a staggering 240 square meters of performance space with a massive 10-meter vertical clearance. This system is designed for elite productions that require a 24-meter clear span for wide-format show designs. For production managers, the primary challenge is finding a structure that provides stadium-scale dimensions while remaining portable and "collapsible" for efficient global logistics—a challenge this high-grade aluminum system addresses with industry-leading efficiency.
One of the most significant challenges for a 24-meter horizontal span is structural deflection—the tendency for the overhead truss to bow under the weight of lighting and video gear. DragonStage solves this by utilizing heavy-duty aluminum box truss profiles specifically engineered for long-span rigidity and high tensile strength. Another common pain point is the setup time for large-scale stages; our collapsible stage design features a modular framework that allows for rapid unfolding and locking, significantly reducing on-site labor. To manage the elements, the system features a high-tension, pitched PVC canopy that ensures immediate water runoff, protecting your technical assets from moisture damage during unpredictable outdoor weather.
This 24x10x10m system is manufactured from aerospace-grade 6082-T6 aluminum alloy. This material is the global benchmark for professional trussing, offering a superior strength-to-weight ratio and natural resistance to corrosion in humid or coastal environments (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).
The system features a multi-tower ground support lift. This allows the massive 24x10m roof grid to be rigged with beam lights, audio, and LED screens at waist height before being safely hoisted to its 10-meter peak. According to international safety standards for temporary performance structures, the use of a synchronized motor lift system is essential for maintaining a level and secure structure during the transition to full height (Source:https://www.plasa.org).
To ensure a seamless and safe performance area, this trussing is fully integrated with our collapsible aluminum stage platforms. These decks feature 18mm anti-slip surfaces and high load-bearing capacities, providing a stable foundation for performers that matches the professional grade of the overhead rig (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).
Q: How much weight can the 24m main span support?A: The 24m span is designed for heavy-duty applications. While weight limits depend on the specific load distribution, it is engineered to support several tons of professional lighting and video equipment.
Q: Is the collapsible stage easy to transport?A: Yes. The "collapsible" nature of the stage framework and the modular truss sections allow the entire 240sqm system to be efficiently packed into standard shipping containers or trailers.
Q: Is the PVC canopy fire-retardant?A: Absolutely. Our canopies are made from 850g/m² PVC that is waterproof, UV-resistant, and meets B1/M2 fire-retardant safety standards.
Q: What type of ballast is required for a 10m high outdoor stage?A: For a structure of this scale, we recommend heavy water tanks or concrete blocks attached to the tower bases. We provide full structural guidance for safe outdoor anchoring based on your local wind conditions.
Scale your production to new heights with a structure built for stadium-level impact and absolute safety. Contact DragonStage’s engineering team today for a custom quote on the 24x10x10m Portable Collapsible Stage and Roof Truss System. Download our technical specifications and start planning your most ambitious event season yet.
