packing weight: 2400kg

packing volume: 22cbm

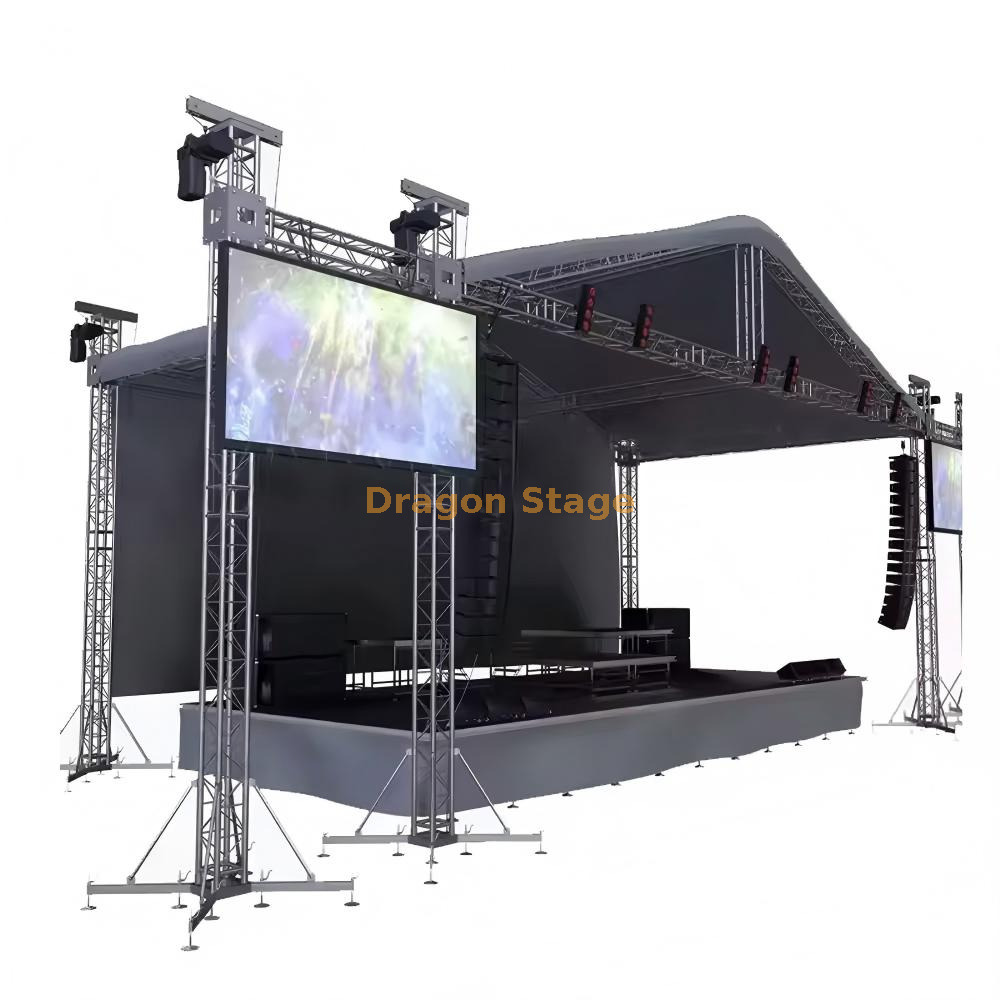

Professional 40ft x 50ft x 26ft Outdoor Aluminum Stage Truss System with Integrated PA Wings

1. Introduction

For regional festival promoters and production houses, the ability to fly audio and lighting at a professional height is the hallmark of a premium event. The 40x50x26ft Outdoor Aluminum Stage Truss System by DragonStage is a comprehensive venue solution providing nearly 2,000 square feet of covered area. Featuring a commanding 26ft (8m) vertical clearance and specialized 10ft PA wings on either side, this system is optimized for high-fidelity sound and immersive lighting designs. For event organizers, the primary challenge is integrating heavy line arrays without compromising the stage's footprint—a challenge this reinforced aluminum system addresses with specialized outrigger engineering.

2. Challenges & Solutions

One of the biggest hurdles in outdoor stage management is the safe suspension of heavy audio equipment. Using independent speaker towers can be unstable and occupies valuable ground space. DragonStage solves this by integrating PA wings directly into the roof grid’s structural design, allowing for a streamlined, "floating" audio setup that maximizes the audience's view. Another common outdoor pain point is water accumulation; a flat roof can quickly become a safety hazard. Our 40x50ft system features a high-tension, pitched PVC canopy that ensures immediate water runoff. Furthermore, for setups on unpaved festival grounds, our 4-tower ground support includes heavy-duty adjustable leveling jacks to ensure a perfectly plumb and stable rig on any terrain.

3. Key Features & Benefits

The 40x50x26ft system is manufactured from aerospace-grade 6061 aluminum alloy. This material is the global standard for professional touring, offering an exceptional strength-to-weight ratio and natural resistance to environmental oxidation (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).

The structure utilizes a modular ground-support design. This allows technicians to rig moving head lights, LED banners, and cabling at waist height before hoisting the entire grid to its 26ft peak. According to international safety standards for temporary performance structures, this ground-support method significantly reduces the risks associated with working at height and ensures a more efficient technical setup (Source:https://www.lsionline.com).

This trussing is also designed for perfect synergy with our modular aluminum stage platforms. These decks feature 18mm anti-slip surfaces and high load-bearing capacities, providing a stable foundation that matches the professional grade of the overhead rig (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).

4. FAQ Section

Q: How much weight can the PA wings support?A: Each wing is specifically reinforced to support heavy professional line arrays. Please contact our engineering team with your specific speaker weights for a verified load-calculation report.

Q: Can this 50ft span support a heavy center-hung LED screen?A: Yes. The 6082-T6 aluminum box truss is designed for high-capacity rigging. We recommend a distributed load approach for the best structural performance.

Q: Is the PVC canopy fire-retardant and waterproof?A: Absolutely. Our canopies are made from 850g/m² PVC that is waterproof, UV-resistant, and meets B1/M2 fire-retardant safety standards.

Q: How do we raise the 26ft towers?A: The system utilizes specialized sleeve blocks and can be operated with either manual hand-winches or electric chain hoists for synchronized, level lifting.

5. Strong Call to Action (CTA)

Ensure your next production is built on a foundation of professional engineering and massive scale. Contact DragonStage’s engineering team today for a custom quote on the 40ft x 50ft x 26ft Stage Truss System with PA Wings. Download our technical specifications and start planning your most successful concert season yet.
