packing weight: 400kg
packing volume: 3cbm
| Item | Specification(squre truss) | Qty |
| length(M) | main tube(MM) | size(MM) |
| Beam | 3 | 50×3.0 | CS389×389 | 2 pcs |
| 2 | 50×3.0 | CS389×389 | pcs |
| 1 | 50×3.0 | CS389×389 | 1 pcs |
| 0.5 | 50×3.0 | CS289×289 | pcs |
| Pillar | 3 | 50×3.0 | CS289×289 | 2 pcs |
| 2 | 50×3.0 | CS289×289 | pcs |
| 1 | 50×3.0 | CS289×289 | 2 pcs |
| 0.5 | 50×3.0 | CS289×289 | pcs |
| Tower | Spigot Sleeve Block S | 2 pcs |
| Steel Base S | 2 pcs |
| Top Section S | 2 pcs |
| Manual hoist,BA05 2Tons | 2 pcs |
| Spigot Hinge Section,Height 1m | 2 pcs |
| Fibre sling,BA04,2 tons 3m | 2 pcs |
| Long outrigger | 8 pcs |
| Truss Accessory | Conical coupler & Safrty clip & pin | whole
set |
1.Material: Aluminum alloy
2.Feature: Professional welders and engineers to ensure high quality truss.
3.Application: to hang LED screen, lighting, speaker and so on for indoor or outdoor events, concerts, exhibitions.

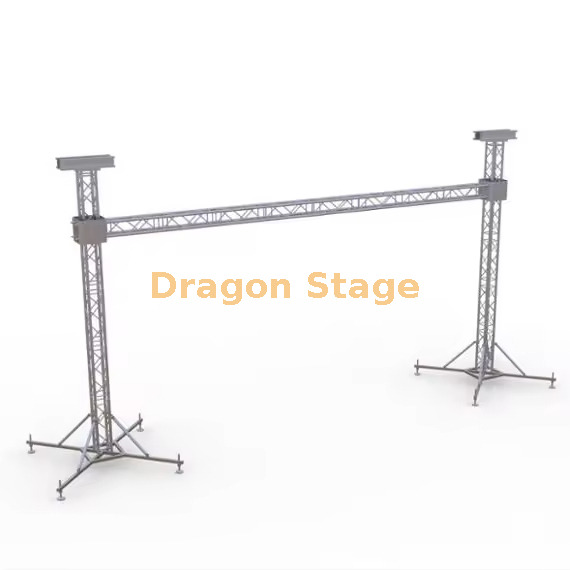

Professional 7x5m Aluminum Outdoor Hanging LED Screen and Backdrop Stage Truss System
1. Introduction
In the modern event landscape, high-resolution video is the centerpiece of the production. The 7x5m Aluminum Outdoor Hanging LED Screen Backdrop Stage Truss System by DragonStage is engineered specifically to meet the high-load demands of contemporary LED technology. Providing a 7-meter wide span and a 5-meter vertical clearance, this "goal-post" style structure offers the stability and precision required to hang heavy LED tiles without structural deflection. For event organizers and AV technicians, the challenge is rigging thousands of pounds of sensitive electronics safely and perfectly level—a challenge this reinforced aluminum system addresses with specialized engineering.
2. Challenges & Solutions
The primary challenge when hanging an LED wall is the "sail effect"—the screen acts as a solid wall against wind, creating immense lateral pressure on the truss towers. DragonStage solves this by utilizing high-strength 6082-T6 aluminum and a ground-support system featuring extended outriggers and weighted ballast points for outdoor stability. Another common pain point is the precision required for LED assembly; if the horizontal truss bows even slightly, the LED tiles will not align, creating visible gaps in the image. Our solution uses a heavy-duty box truss profile with high-precision conical couplers that maintain a perfectly rigid horizontal line under the specific weight of your video wall.
3. Key Features & Benefits
This 7x5m system is manufactured from aerospace-grade 6082-T6 aluminum alloy, offering the highest strength-to-weight ratio available for temporary event structures. This material is naturally resistant to corrosion, making it an ideal long-term investment for both indoor corporate events and outdoor music festivals (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).
The system utilizes a tower lift design with manual or electric hoists. This allows the 7-meter top beam to be rigged with the LED tiles at waist height, ensuring the safety of the technicians and the delicate LED pixels, before being hoisted to the full 5-meter height. According to international rigging standards, using a dedicated ground-support tower system is the safest way to manage heavy overhead video loads (Source:https://www.plasa.org).
For a complete stage environment, this backdrop truss is designed to sit perfectly behind our modular aluminum stage platforms. These platforms provide a level, high-capacity surface for performers that complements the visual impact of the hanging LED wall (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).
4. FAQ Section
Q: What is the maximum weight this 7m span can support?A: The system is designed for heavy-duty AV use; however, the exact capacity depends on the truss series chosen (e.g., 290mm or 390mm). Please provide your LED screen's total weight for a custom load calculation.
Q: Can this truss be used for lighting as well as LED screens?A: Yes. The horizontal span features ample space for both the LED screen rigging and a front or back row of moving head lighting fixtures.
Q: Is it easy to transport between venues?A: Absolutely. The modular aluminum sections are lightweight and break down into 2m or 3m lengths, fitting easily into a standard delivery van or flight cases.
Q: Do you provide the hoists and rigging hardware?A: We offer full kits including manual hand-winches or electric chain hoists, sleeve blocks, and top sections tailored to your specific screen weight.
5. Strong Call to Action (CTA)
Ensure your visual production is supported by a structure that is as high-performance as your video content. Contact DragonStage’s engineering team today for a custom quote on the 7x5m LED Screen Backdrop Truss System. Download our technical specifications and start planning your next high-impact event with confidence.
