packing weight:2200kg
packing volume: 16cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | BS400×400 | 8pcs |
| 2.00 m | 50×3.0 | BS400×400 | 0pcs |
| 1.00 m | 50×3.0 | BS400×400 | 0pcs |
| 8.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | BS400×400 | 4pcs |
| 2.00 m | 50×3.0 | BS400×400 | 2pcs |
| 1.00 m | 50×3.0 | BS400×400 | 0pcs |
| 11.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | BS300×300 | 12pcs |
| 2.00 m | 50×3.0 | BS300×300 | 4pcs |
| 1.00 m | 50×3.0 | BS300×300 | 0pcs |
| beam cube | cube 400x400 | 0pcs |
| Frame Tower | Bolt Truss Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.20 m | 50×3.0 | BS300×300 | 2pcs |
| 8.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | BS300×300 | 2pcs |
| 2.00 m | 50×3.0 | BS300×300 | 1pcs |
| 1.00 m | 50×3.0 | BS300×300 | 0pcs |
| 6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | BS300×300 | 4pcs |
| 2.00 m | 50×3.0 | BS300×300 | 4pcs |
| 1.20 m | 50×3.0 | BS300×300 | 4pcs |
| 6.20 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | BL30,300*50 | 6pcs |
| 2.00 m | 50×3.0 | BL30,300*50 | 6pcs |
| 1.20 m | 50×3.0 | BL30,300*50 | 6pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | BS300×300 | 2pcs |
| roof conner 5 ways, use for roof beam truss | BS300×300 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 12pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 179.36 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | BS400×400 | 0pcs |
| 2.00 m | 50×3.0 | BS400×400 | 2pcs |
| 1.00 m | 50×3.0 | BS400×400 | 0pcs |
| 11.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | BS300×300 | 6pcs |
| 2.00 m | 50×3.0 | BS300×300 | 2pcs |
| 1.00 m | 50×3.0 | BS300×300 | 0pcs |
| Wings Tower | Bolt Truss Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Screw Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
packing weight: 1600kg
packing volume: 10.5cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x8ft
(1.22x2.44m) | wooden | 24 pcs |
| 1.22m stage brace | 30 pcs |
| 2.44m stage brace | 28 pcs |
| stand with extendable tube | 35 pcs |
| Stage adjustable base | 35 pcs |
| Stage Stair | wooden topping | total | 8 | steps | adjustable to the stage height | 2 pcs |

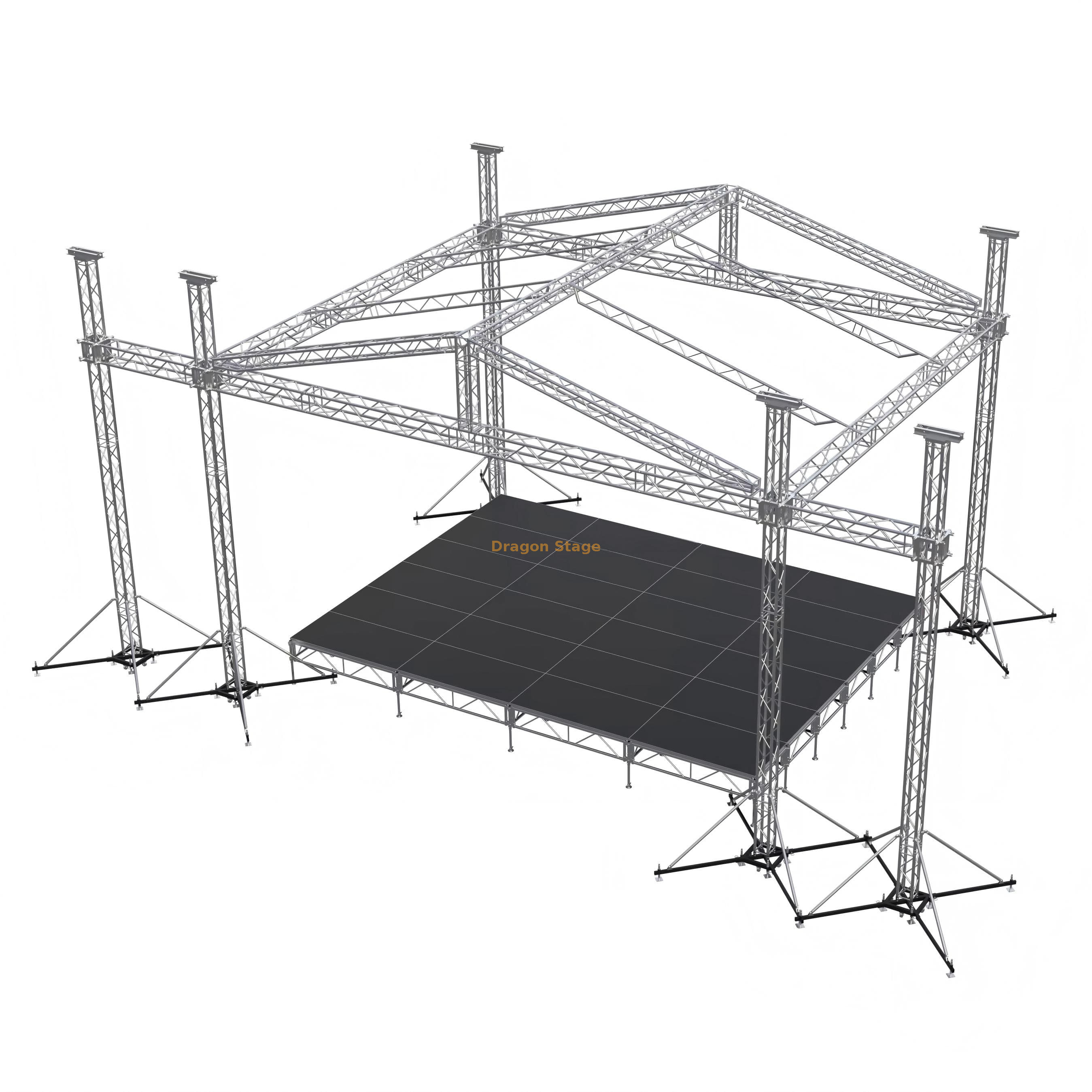

Outdoor Customized Speaker Aluminum Truss Wings 2m Event Bolt Spigot Stage Truss Roof System 12x8x12m
Introduction: The Foundation of Safe and Comprehensive Outdoor Event Architecture
The DragonStage Outdoor Customized Speaker Aluminum Truss Wings system is a towering, comprehensive structure engineered for professional concert production and large-scale event applications. Sized at a substantial 12 meters wide by 8 meters deep, and reaching an impressive 12 meters in height, this system provides a highly visible and structurally sound platform for main stages, complete with full weather protection and dedicated sound-rigging support.
This heavy-duty stage truss roof system is a modular solution that includes the essential structure for lighting and video, a complete stage platform, and 2-meter integrated speaker wing trusses on both sides. Unlike many systems that rely solely on spigot connections, this model expertly combines Bolt Truss (BS) and Spigot Truss (CS) components, offering superior rigidity and technical integration to meet the stringent demands of global event safety and engineering standards.
Challenges & Solutions in Event Construction Logistics
Event professionals managing high-profile outdoor installations face intense logistical and technical pressures related to structural integrity, rapid deployment, and sound optimization. DragonStage addresses these challenges directly:
Structural Integrity and Height: The system utilizes high-grade aluminum alloy, with primary truss components (BS400x400 for beams and BS300x300 for pillars) featuring a consistent 50mm x 3.0mm main tube size. This provides the necessary material strength and engineering reliability required for the 12m vertical height, minimizing deflection and maximizing load capacity for rigging plots. (Source:https://www.dragontruss.com/Aluminum-Truss-pl3962133.html)
Sound System Integration: Optimized audio dispersion is critical. The inclusion of two 2m long, dedicated speaker aluminum truss wings (supported by their own 11m pillars) ensures secure, elevated hanging points for line array systems, positioning audio optimally above the crowd without overburdening the main roof grid.
Efficient Installation for Large Scale: Despite its size, the system is designed for streamlined setup. It includes 6 sets of 2-Ton Manual Hoists (BA05) and Fibre Slings for safe and controlled vertical roof elevation. The integration of 24 Long Outriggers on the six total towers (4 main, 2 wing) maximizes the base footprint, critical for stabilization and wind-load resistance. (Source:https://www.dragontruss.com/Typical-A-frame-Roof-Truss-System-pl3101260.html)
Key Features and Benefits for Event Professionals
This Bolt Spigot Stage Truss Roof System is a comprehensive technical package, optimized for large event operational efficiency and safety.
Technical Feature: Bolt Truss (BS) and Spigot Truss (CS) Integration
Client Benefit: Provides the best of both worlds: the high shear strength and vibration resistance of bolt connections for main load-bearing spans, combined with the quick assembly of the spigot system for certain roof components.
Technical Feature: Primary Truss Profiles
Client Benefit: Use of BS400x400 for the 12m beams and BS300x300 for the 11m pillars ensures heavy-duty certification and exceptional structural performance for high-load event rigging.
Technical Feature: Dedicated 2m Speaker Aluminum Truss Wings
Client Benefit: Offers independent, secure rigging points for line array speakers (supported by their own pillars), enabling precise audio aiming and separating sound loads from the main lighting grid.
Technical Feature: Integrated Stage Platform
Client Benefit: Includes a complete 9.76m x 7.32m stage deck, with 24 pieces of 4x8ft wooden topping, adjustable stands, and two sets of stairs, providing a ready-to-use, perfectly fitted performance area.
Technical Feature: 12-Meter Height and PVC Canopy
Client Benefit: Provides immense clearance for creative stage design and projection, while the 179.36 sqm PVC roof canopy ensures comprehensive weather protection for all technical equipment and performers. Event infrastructure must be certified for the intended use environment, a standard met by professional truss systems like this one (Source:https://www.prolight-sound.com).
Practical FAQ for Stage Professionals
Q: What is the benefit of using Bolt Truss connections over Spigot Truss for a large structure? A: Bolt Truss, particularly with larger profiles like BS400x400, offers superior strength and greater load capacity over long spans, making it ideal for the main beams and pillars of such a large-scale roof system.
Q: How is structural stability managed for a 12-meter-high aluminum truss structure? A: Stability is achieved through the six tower system (four main, two wing), reinforced by 24 Long Outriggers at the base. These elements, combined with proper anchoring or ballasting, are essential for wind-load mitigation.
Q: What is the total packing weight and volume for transport? A: The total packing weight for the main truss system is approximately 2200kg, occupying a volume of 16CBM, which simplifies logistics planning and freight costing.
Q: Are all components required for assembly included in the total package? A: Yes, the system includes all necessary components for the roof and stage, including sleeve blocks, steel bases, top sections, 6 sets of hoists, slings, and all stage decking components and stairs.
Strong Call to Action (CTA)
Future-proof your large-scale productions with a reliable, certified, and acoustically optimized stage solution.
Contact DragonStage’s engineering team today to request certified load charts and discuss customization options for your outdoor event bolt spigot stage truss roof system.
