packing weight: 11.5cbm
packing volume: 2500kg
| Item | Specification | Quantity |
| Aluminium assembly stage | topping: 4x4ft
(1.22x1.22m) | local acrylic glass | 50 pcs |
| 1.22m stage brace | 115 pcs |
| stand with extendable tube | 66 pcs |
| Stage adjustable base | 66 pcs |
| Stage Stair | acrylic glass18MM | total | 5 | steps | 2 pcs |
packing weight: 2000kg
packing volume: 12cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 13.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 7.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 2pcs |
| 6.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| beam cube | Spigot cube 389x389 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.30 m | 50×3.0 | CS289×289 | 2pcs |
| 7.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 1pcs |
| 6.70 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.70 m | 50×3.0 | CS289×289 | 4pcs |
| 6.70 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 6pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 6pcs |
| 1.70 m | 50×3.0 | CL30,289*50 | 6pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 12pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 177.66 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 0pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 6.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
Aluminum Portable Roof Truss Structure & Concert Stage: 40ft x 60ft Full Package
Introduction: The Comprehensive Solution for Outdoor Concerts and Events
The Dragon Stage Aluminum Portable Roof Truss Structure combined with the 40ft x 60ft Stage System provides an all-in-one solution for professional outdoor events. This package is designed for large-scale concerts, festivals, and corporate gatherings, featuring a robust, protective roof truss and an expansive performance stage. The Spigot connection system ensures rapid assembly, allowing you to deploy a fully professional setup quickly and efficiently.
Key Features & Component Breakdown

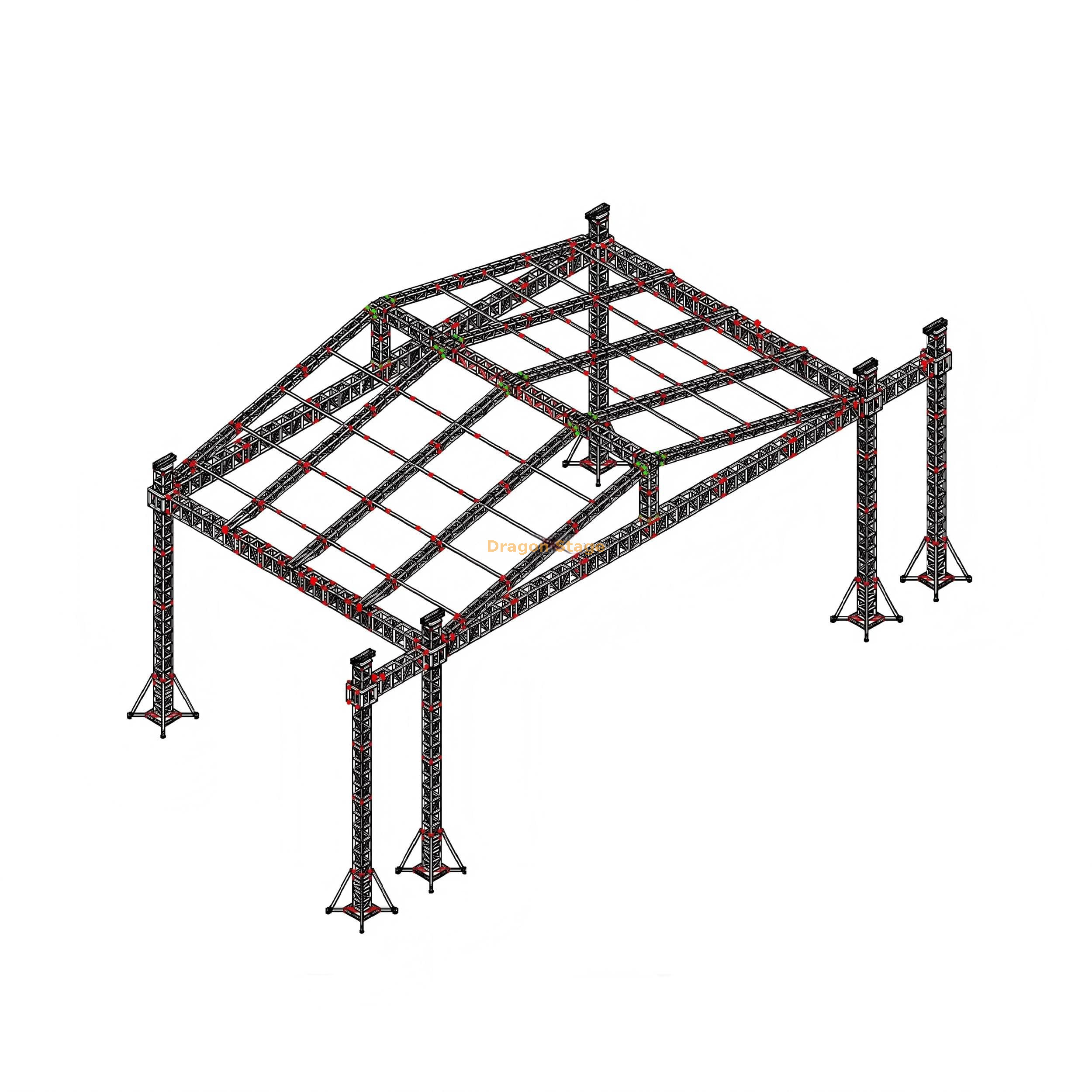

I. Truss Roof Structure (13m x 7m x 7m)
The A-Frame roof truss is built for high performance and reliable load hanging:
Structure Dimensions: 13m long x 7m wide x 7m high (approximately 42.6ft x 23ft x 23ft).
Main Truss Profile: The main load-bearing structure uses CS389x389 Square Truss (400mm x 400mm) with 50mm x 3.0mm main tubes, providing high capacity across the 13-meter span for lighting and video screens.
Support & Pillars: The pillars and roof components use the lighter-duty CS289x289 Square Truss (300mm x 300mm), appropriate for the 7m vertical height.
Integrated Wings: Includes two sets of 6m Wings Pillars and corresponding truss beams, complete with dedicated tower components and an additional 8 Long Outriggers, ideal for mounting line array speakers (PA Towers) and side banner visuals.
Ground Support & Lifting: The system includes 6 sets of lifting towers (4 main, 2 wing) equipped with Spigot Sleeve Blocks and 2-Ton Manual Hoists (BA05) for controlled vertical erection.
II. Portable Concert Stage (40ft x 60ft)
The included stage platform is expansive and designed for aesthetic appeal and performer safety:
Stage Footprint: A large 40ft x 60ft (12.2m x 18.3m) performance area.
Deck Material: Features 50 pieces of 4x4ft (1.22m x 1.22m) plexiglass/acrylic glass stage topping, offering a premium, transparent, or translucent look perfect for lighting effects.
Adjustable Height: The stage is set at 4ft (1.22m) high, using stands with extendable tubes and adjustable bases, providing flexibility in leveling on uneven outdoor terrain.
Accessories: Comes complete with bracing, adjustable bases, and 2 sets of 5-step acrylic glass stairs.
III. System Logistics
| Component | Dimensions (L x W x H) | Material Profile | Weight/Volume |
| Stage Deck | 40ft x 60ft (12.2m x 18.3m) | Acrylic Glass/Aluminum | 2500 kg / 11.5 CBM |
| Roof Truss | 13m x 7m x 7m | CS389x389 & CS289x289 | 2000 kg / 12 CBM |
| Canopy | 177.66 sq m | PVC, Blue or Custom Color | N/A |
| Stabilization | 24 Total Long Outriggers | Steel Base & Truss | N/A |
Practical FAQ for Stage Professionals
Q: How does the 13m x 7m roof cover the 40ft x 60ft (18.3m x 12.2m) stage?
A: The dimensions suggest the truss system (13m wide) is designed to cover the depth of the performance stage, while the side wings extending the width (to 18.3m / 60ft) are supported by the additional pillars. This provides an optimal roof span over the main stage area for rigging, while the stage itself extends beyond the roofline for maximum size and visual impact.
Q: Is all the required hardware included in the price?
A: Yes, the description explicitly states that the entire system includes all necessary components, including the Conical Couplers, Safety Clips, and Pins required for connecting the Spigot truss sections. The price range (¥ 67,770 - ¥ 75,032) suggests the final cost depends on the specific choice of PVC canopy color or minor customizations.
Q: Why include two different sizes of truss (CS389x389 and CS289x289)?
A: This is an engineered hybrid design to balance load capacity and cost. The CS389x389 profile is essential for handling the high bending loads and concentrated weight over the large 13m span. The lighter CS289x289 profile is sufficient and cost-effective for the vertical towers and roof elements where compression is the dominant force.
