Custom Aluminum Single Simple Church Stage Designs 10x8m

5 0 Reviews

stage platform 10x8m height 1.2-2m, 2 stairs

stage truss system 11x9x7m

Price: ￥ 38150 - 62784


Features:	stage platform stage truss system
Availability:



Inquire

Brand:
Dragon Stage

Product Description

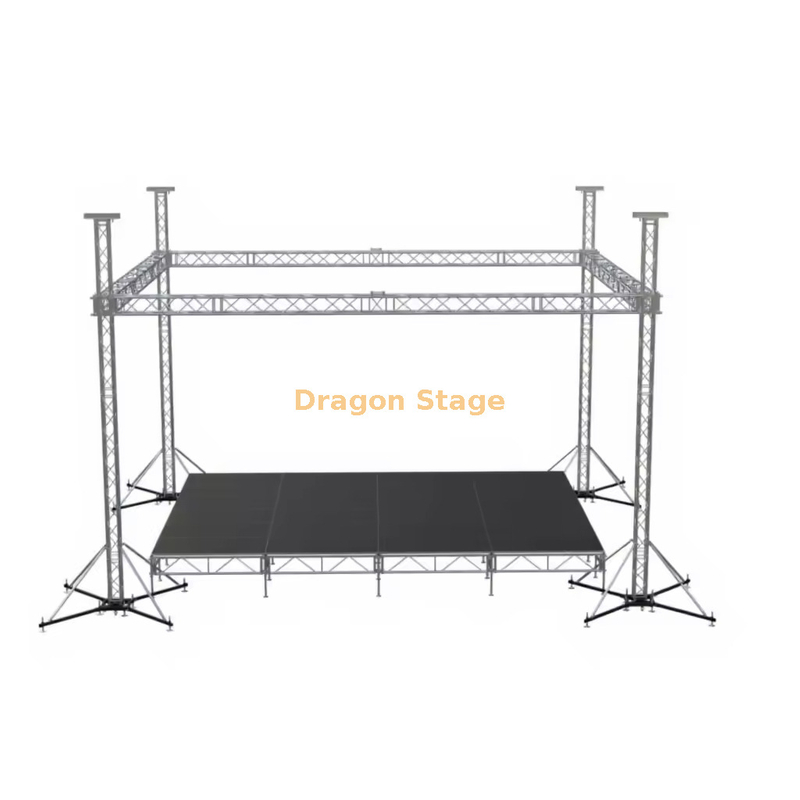

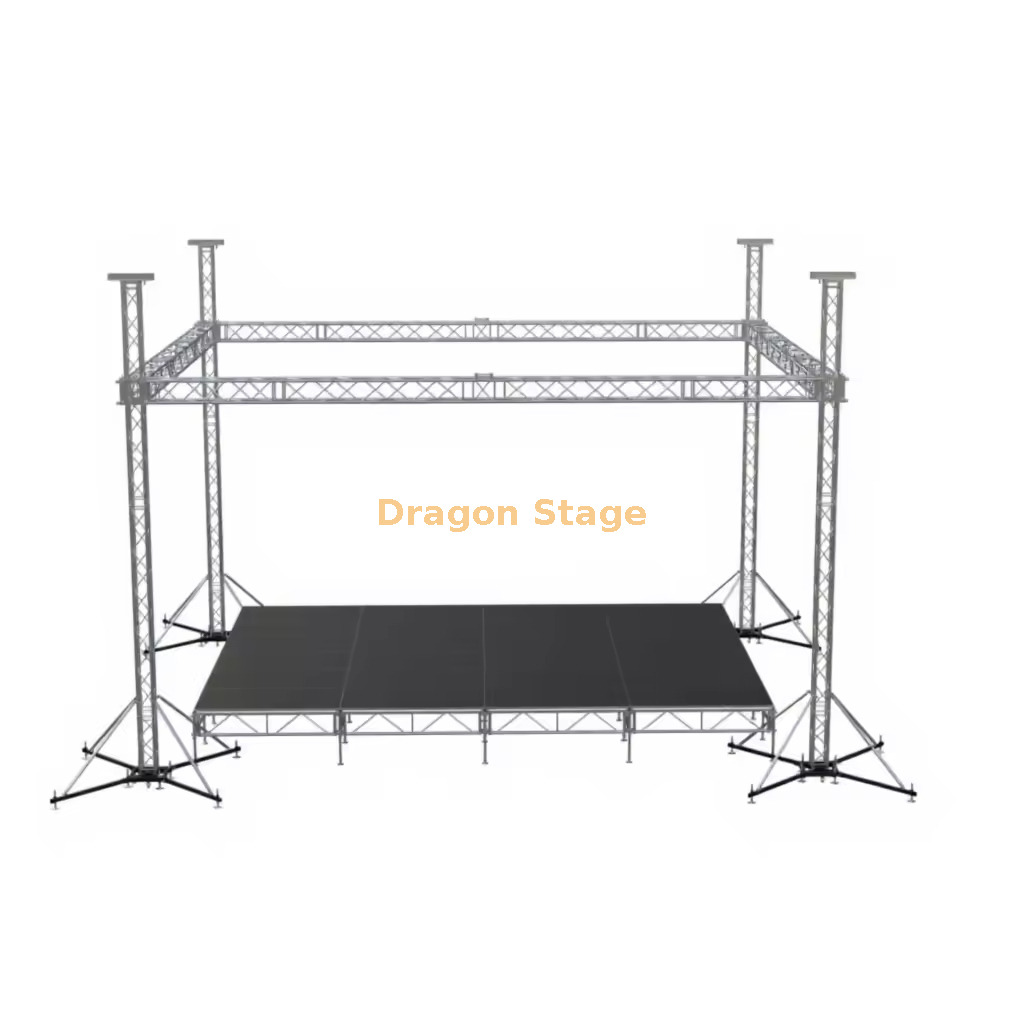

stage truss system 11x9x7m

packing weight: 1600kg

packing volume:11cbm

Item	Specification				Quantity
Aluminium assembly stage	topping: 4x8ft (1.22x2.44m)		wooden		24 pcs
	1.22m stage brace				30 pcs
	2.44m stage brace				28 pcs
	stand with extendable tube				35 pcs
	Stage adjustable base				35 pcs
Stage Stair	wooden topping	total	8	steps	2 pcs

packing weight: 1700kg

packing volume: 10cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
11.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS389×389	6pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
9.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	6pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
6.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	Spigot cube 389x389				0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.10 m	50×3.0	CS289×289	2pcs
9.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	3pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
5.70 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		2.70 m	50×3.0	CS289×289	4pcs
5.70 m Ladder truss	8 sets	3.00 m	50×3.0	CL30,289*50	8pcs
		2.00 m	50×3.0	CL30,289*50	0pcs
		2.70 m	50×3.0	CL30,289*50	8pcs
Roof Components		roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
		roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
		Connect plate with clamp			2pcs
		Single clamp			16pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		179.26	1pcs

This 11x9x7m Aluminum Stage Truss System is a professional solution for outdoor events, concerts, and exhibitions. Engineered with high-strength aluminum alloy 6061-T6, the modular system offers an ideal strength-to-weight ratio, ensuring durability and easy assembly. The standard configuration leverages a medium-duty square box truss (such as the TÜV-approved F34/F34P series) with 50x3mm main tubes and 20x2mm diagonal braces, supporting significant loads for lighting, audio, and video equipment. Key features include TÜV/SGS certifications, quick setup with conical connectors, and full customizability for dimensions, wings, and roofing.
