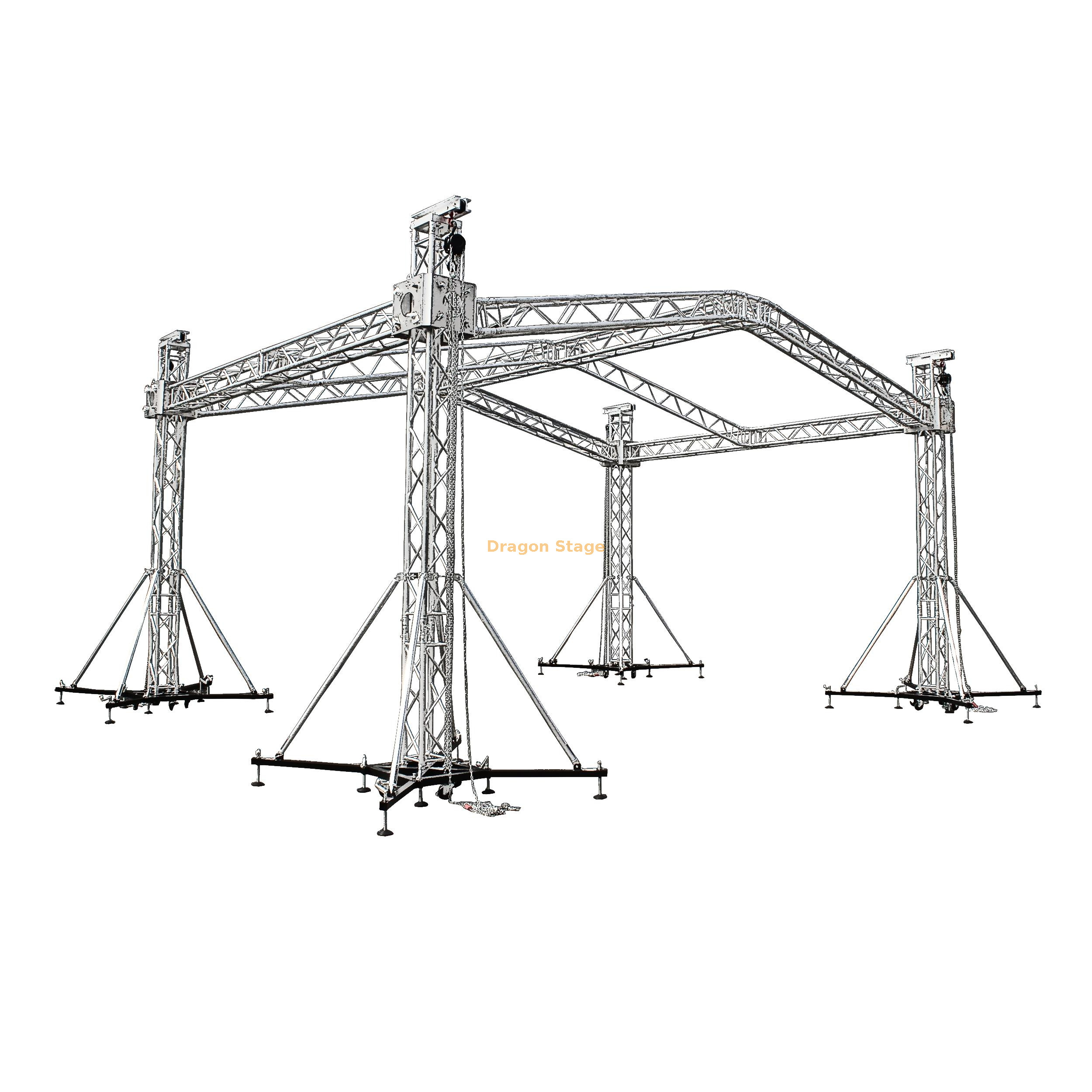

Outdoor Concert Event Stage Curved A Roof Trusses with Lift for Sale 8x6x6m
| Item | Specification(squre truss) | Qty | |||||
| length(M) | main tube(MM) | size(MM) | |||||
| Beam | 3 | 50×3.0 | CS289×289 | 4 pcs | |||
| 2 | 50×3.0 | CS289×289 | 2 pcs | ||||
| Pillar | 2 | 50×3.0 | CS289×289 | 6 pcs | |||
| 3 | 50×3.0 | CS289×289 | 6 pcs | ||||
| Tower | ST1,spigot sleeve block S | 6 pcs | |||||
| Steel Base S | 6 pcs | ||||||
| 2 ways corner | 4 pcs | ||||||
| 3 ways corner | 2 pcs | ||||||
| Top section,T05 | 6 pcs | ||||||
| Manual hoist,T01,2tons,8m | 6 pcs | ||||||
| Fibre sling,T04 | 6 pcs | ||||||
| CS30+C44,Spigot Hinge Section,Height 1m | 6 pcs | ||||||
| Roof Diagonal Beam | 4.2 | 50×3.0 | CS30,289*289 | 6 pcs | |||
| Roof Middle Beam | 3 | 50×3.0 | CS30,289*289 | 2 pcs | |||
| Roof corner | 4 ways corner | 3 pcs | |||||
| roof canopy | material:pvc, Blue Colour or customized. | 74.25 | 1 pcs | ||||
| Truss Accessory | Conical coupler & Safety clip & pin | whole set | |||||
For outdoor festivals and high-energy events, the visual profile of the stage is just as important as its structural integrity. The 8x6x6m Curved A-Roof Truss System by DragonStage offers a sleek, modern aesthetic that stands out from traditional square rigs. Providing 48 square meters of covered area and a versatile 6-meter height, this system is engineered for professional organizers who need a reliable, weather-resistant performance hub. The curved "A-Roof" design not only enhances the stage's visual appeal but also provides superior aerodynamic performance and water management, making it the ideal choice for unpredictable outdoor environments.
A common frustration for outdoor event crews is the risk of water pooling on the roof canopy, which can add dangerous weight to the structure. DragonStage solves this with the Curved A-Roof geometry; the natural arc ensures that rainwater immediately sheds off the sides, protecting expensive lighting and audio equipment below. Another challenge is the safety risk of rigging at height. Our solution features an integrated tower lift system. This allows the entire 8x6m grid to be assembled and rigged with lighting fixtures at waist level before being safely hoisted to its 6-meter peak. For setups on varied terrain like parks or fairgrounds, the system includes adjustable leveling jacks to ensure a perfectly stable and plumb structure.
The 8x6x6m system is fabricated from aerospace-grade 6082-T6 aluminum alloy. This material is selected for its high tensile strength and exceptional resistance to environmental oxidation, ensuring the rig remains a clean, professional asset for years (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).
The curved profile provides an elegant overhead arch that is perfect for hanging "wash" lighting and brand banners. According to international safety standards for temporary performance structures, the use of a ground-support tower system with sleeve blocks significantly enhances stability against lateral wind forces compared to simple goal-post designs (Source:https://www.prolight-sound.com).
To ensure a complete and professional performance area, this trussing is designed for seamless integration with our modular aluminum stage platforms. These platforms feature 18mm anti-slip surfaces and high load-bearing capacities, providing a secure foundation that matches the high quality of the overhead curved roof (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).
Q: What are the benefits of a curved roof over a flat one?A: Curved roofs offer better wind deflection and superior water drainage, while also providing a more professional, "tour-grade" look for your event.
Q: Can this 8m span support a heavy LED screen?A: The system is designed for lighting and audio loads. For heavy LED walls, we recommend a reinforced truss profile; please contact our engineers for a custom load-bearing calculation.
Q: Is the PVC canopy waterproof and UV-resistant?A: Yes. The canopy is made from 850g/m² PVC that is waterproof, UV-protected, and fire-retardant (B1/M2 standards).
Q: How do we raise the roof?A: The system includes four lift towers. Depending on your preference, these can be operated with manual hand-winches or electric chain hoists.
Upgrade your event production with a structure that combines modern design with industrial safety. Contact DragonStage’s engineering team today for a custom quote on the 8x6x6m Curved A-Roof Truss System. Download our technical specifications and start planning your most successful concert season yet.
