Dragonstage
packing weight:850kg
packing volume:6.5cbm
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 7.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 2pcs | |||||
| 5.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 2pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
| beam cube | 6 faces | CS289×289 | 0pcs | |||||
| Frame Tower | Spigot Sleeve Block S | 4pcs | ||||||
| Steel Base S | 4pcs | |||||||
| Top Section S | 4pcs | |||||||
| Manual hoist,BA05 2Tons | 4pcs | |||||||
| Spigot Hinge Section,Height 1m | 4pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
| Long outrigger | 16pcs | |||||||
roof ladder truss:
290mm ladder truss 3m 4pieces
290mm ladder truss 2m 4pieces
clamps 8 pieces

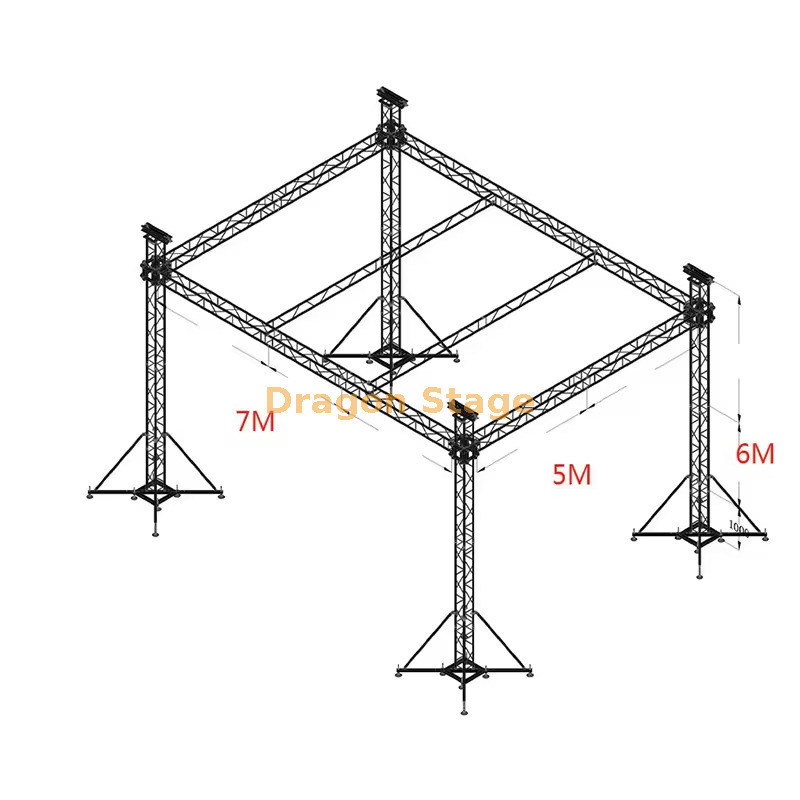

The 7m × 5m × 6m Compact Flat Roof Truss System is a highly portable and efficient ground-supported roofing solution designed for small to medium outdoor events, DJ performances, product presentations, corporate activations, and temporary stages.
Featuring a clean flat roof design supported by four sturdy corner towers (6m height) with outriggers for excellent stability, this all-aluminum spigot truss system provides a clear 7-meter front span, 5-meter depth, and generous overhead clearance for lighting, small LED screens, banners, or basic sound equipment.
Built from high-grade 6061 aluminum with fast conical connectors, it assembles quickly with a small crew, offers impressive load capacity for its size, and packs down compactly for easy transport in a van or trailer.
Perfect for rental companies, mobile DJs, and event organizers who need a professional, modern-looking roof that sets up fast, delivers reliable weather protection (with optional PVC canopy), and fits limited spaces or budgets without sacrificing quality or safety.
For event planners, mobile DJs, and corporate production houses, the need for a professional rigging solution that fits into tighter spaces is paramount. The 7x5x6m Compact Flat Roof Truss System by DragonStage is engineered to provide a high-impact presence within a streamlined 35-square-meter footprint. Standing at a versatile 6-meter height, this system is the ideal choice for small-scale outdoor festivals, product launches, and indoor gala events where a massive stadium rig would be impractical. The core of this system is its "compact-performance" design, offering the same industrial-grade strength of larger systems in a more agile and rapidly deployable package.
A common challenge with small outdoor stages is the risk of water accumulation on flat roof designs. DragonStage solves this by utilizing high-tension PVC canopies and a precision-engineered frame that allows for a subtle, safe drainage slope to prevent the weight of water pockets. Another frequent pain point for small crews is the time and labor required for assembly; our solution features the high-precision spigot (conical) connection system. This tool-free method significantly accelerates the setup process compared to traditional bolt-trussing. For setups on varied surfaces, the 4-tower ground support system includes adjustable leveling jacks, ensuring the 6-meter pillars remain perfectly vertical and stable on park grass, gravel, or indoor ballroom floors.
The 7x5x6m system is manufactured from aerospace-grade 6082-T6 aluminum alloy. This material is the global standard for professional trussing, offering an exceptional strength-to-weight ratio and natural resistance to environmental oxidation, ensuring the rig remains a clean, professional asset for years (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).
The system utilizes a modular tower lift design with sleeve blocks. This allows the 7x5m roof grid to be rigged with lighting and audio at waist height before being safely hoisted to its 6-meter peak. According to international safety standards for temporary event structures, this ground-support method is the safest way to manage overhead loads while minimizing risks associated with working at height (Source:https://www.prolight-sound.com).
To provide a complete performance environment, this compact trussing is fully compatible with our modular aluminum stage platforms. These decks feature 18mm anti-slip surfaces and high load-bearing capacities, providing a stable foundation that matches the professional grade of the overhead flat roof (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).
Q: Is the 7x5m size too small for a live band?A: This size is ideal for small bands (3-4 members), solo performers, or high-end DJ booths. It provides plenty of overhead for professional lighting without a massive footprint.
Q: Can I use this system inside a convention center?A: Yes. The 6-meter height is optimized for many indoor venues, and the lightweight aluminum makes it easy to transport through standard loading docks.
Q: Is the PVC canopy waterproof and fire-safe?A: Absolutely. Our canopies are made from 850g/m² PVC that is waterproof, UV-resistant, and meets B1/M2 fire-retardant safety standards.
Q: Does it come with a lift system?A: Yes, the system includes four ground-support towers with manual winches. Electric chain hoists are also available as an upgrade for even faster deployment.
Maximize your event’s visual impact with a structure built for elite performance and rapid setup. Contact DragonStage’s engineering team today for a custom quote on the 7x5x6m Compact Flat Roof Truss System. Download our technical specifications and start planning your most efficient event season yet.
