packing weight:2600kg
packing volume:28cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 14.00 m Beam(front) | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 8pcs |
| 2.00 m | 50×4.0 | CS520×760 | 2pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 12.00 m Beam(side) | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 8pcs |
| 2.00 m | 50×4.0 | CS520×760 | 0pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 8.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 4pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| beam cube | 6 faces | CS520×760 | 0pcs |
| Frame Tower | Spigot Sleeve Block L | 4pcs |
| Steel Base L | 4pcs |
| Top Section L | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.40 m | 50×3.0 | CS289×289 | 2pcs |
| 12.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 7.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.20 m | 50×3.0 | CS289×289 | 4pcs |
| 7.20 m Ladder truss | 10 sets | 3.00 m | 50×3.0 | CL30,289*50 | 10pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 10pcs |
| 2.20 m | 50×3.0 | CL30,289*50 | 10pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| 1 | Connect plate with clamp | CS289×289 | 2pcs |
| Single clamp | 20pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 274.96 | 1pcs |
Introducing our professional-grade Aluminum Roof Truss Stage – a robust and reliable solution for large-scale outdoor events, concerts, festivals, and temporary installations. Designed to withstand challenging weather conditions, this stage offers exceptional durability while remaining lightweight for easier assembly and transport.
With generous dimensions of 14 meters in length, 12 meters in depth, and 9 meters in height, this structure provides ample space for performances, equipment, and personnel. The aluminum construction ensures resistance to rust and corrosion, making it ideal for coastal or humid environments such as the New Lake District.
Ideal for:
Outdoor concerts and music festivals
Public events and ceremonies
Temporary exhibition spaces
Film and production sets
Emergency or backup shelter installations
Features:
High-strength aluminum truss framework
Modular design for quick setup and breakdown
Weather and corrosion resistant
Scalable and customizable layouts available
Suitable for lighting, sound, and rigging attachments
Elevate your event with a stage that combines structural integrity, versatility, and professional appeal. Perfect for event organizers, production companies, and municipal use.

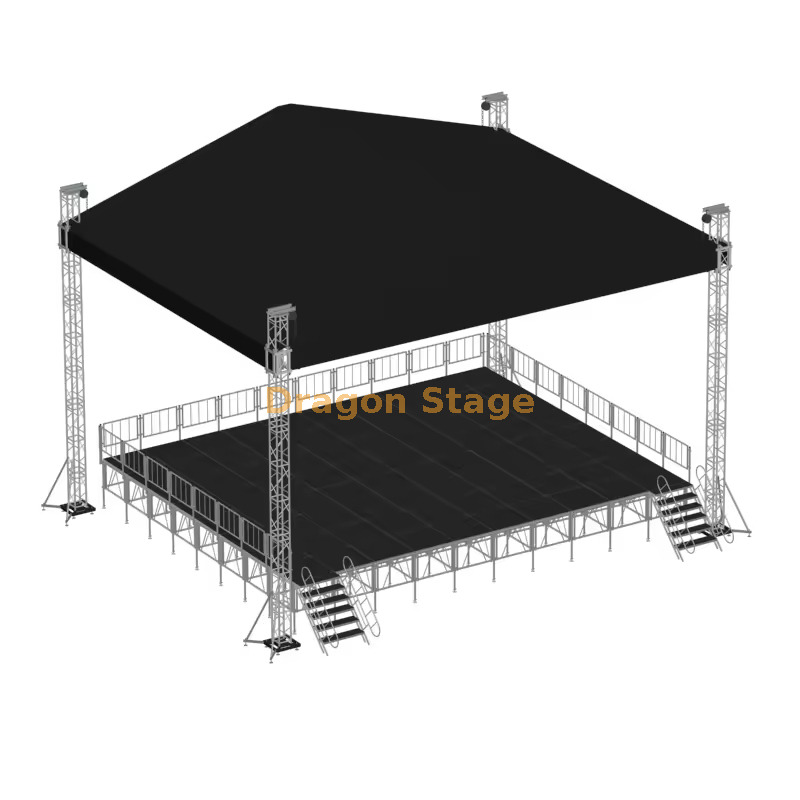

Professional 14x12x9m Aluminum Roof Truss Stage: Heavy-Duty Event Performance Structure
1. Introduction
For large-scale festival productions and high-profile outdoor shows, the stage architecture is the foundation of a successful event. The 14x12x9m Professional Aluminum Roof Truss Stage by DragonStage is a premier engineering solution, providing 168 square meters of covered performance area. With a commanding 9-meter vertical height and a heavy-duty bolt-connection framework, this system is optimized for massive rigging requirements. For event organizers, the challenge is finding a structure that offers stadium-scale dimensions while maintaining the rigidity needed for heavy lighting and audio—a challenge this 6061-T8 alloy system meets with excellence.
2. Challenges & Solutions
A significant challenge for 14-meter horizontal spans is managing structural "sag" or deflection under the weight of professional gear. DragonStage solves this by utilizing 6061-T8 aluminum alloy, which is solution heat-treated and cold-worked to provide higher yield strength and hardness than standard alloys. Another common pain point is outdoor wind stability at a 9-meter height; our ground support towers feature reinforced bases with extended outriggers and leveling jacks to ensure a secure center of gravity. To manage weather risks, the pitched roof geometry facilitates immediate water runoff, preventing the dangerous weight accumulation of water pockets on the PVC canopy.
3. Key Features & Benefits
The 14x12x9m system is manufactured from aerospace-grade 6061-T8 aluminum alloy. This specialized material ensures the structure remains a rigid, professional asset even under maximum loading conditions (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).
The system features a professional 4-tower ground support configuration. This allows the entire 14x12m grid to be rigged with beam lights, audio line arrays, and LED screens at waist height before being safely hoisted to its 9-meter apex. According to international safety standards, the use of a bolt-connection system is preferred for these heavy-duty scales because it provides massive surface contact at each joint for ultimate rigidity (Source:https://www.plasa.org).
To provide a complete venue solution, this trussing is designed for seamless integration with our modular aluminum stage platforms. These decks feature 18mm anti-slip surfaces and high load-bearing capacities, providing a stable foundation that matches the professional grade of the overhead rig (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).
4. FAQ Section
Q: Why is 6061-T8 better for a 14m span?A: At this width, rigidity is critical. The T8 temper is harder and more resistant to deformation than standard T6, ensuring the truss remains perfectly level under heavy technical loads.
Q: Can this 9-meter structure support a heavy LED screen?A: Yes. The heavy-duty bolt truss is specifically engineered for high-capacity rigging. For your specific panel weight, please contact our engineers for a verified load-bearing report.
Q: Is the PVC canopy fire-retardant?A: Absolutely. Our canopies are made from 850g/m² PVC that is waterproof, UV-resistant, and meets international B1/M2 fire-retardant safety standards.
Q: What type of hoists do I need for this grid?A: For a 14x12m span and 9m height, we strongly recommend using synchronized 1-ton electric chain hoists to ensure a safe, level, and efficient lift.
5. Strong Call to Action (CTA)
Ensure your next production is built on a foundation of elite engineering and industrial safety. Contact DragonStage’s engineering team today for a custom quote on the 14x12x9m Heavy-Duty Event Performance Structure. Download our technical specifications and start planning your most successful concert season yet.
