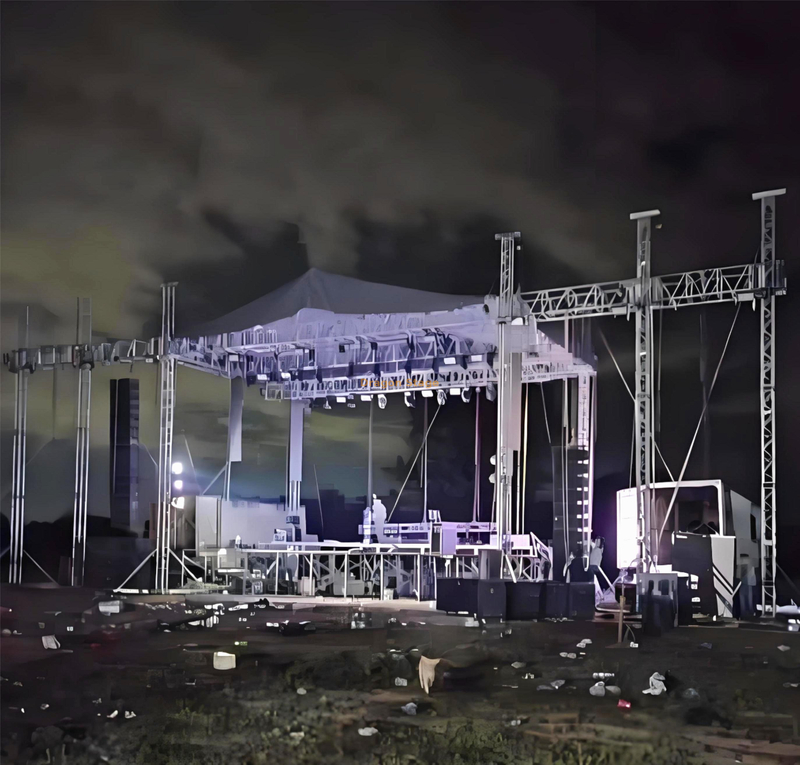

Aluminum Heavy Duty Speaker Lighting Roof Truss Stage 8x6x8m

5 0 Reviews

this is custom Aluminum Heavy Duty Speaker Lighting Roof Truss Stage 8x6x8m, there are 4 wings for line array truss tower.

2 towers are 2m wide and 2 towers are 1.5m wide.

Price: ￥ 92565


Availability:



Inquire

Brand:
Dragon Stage

Product Description

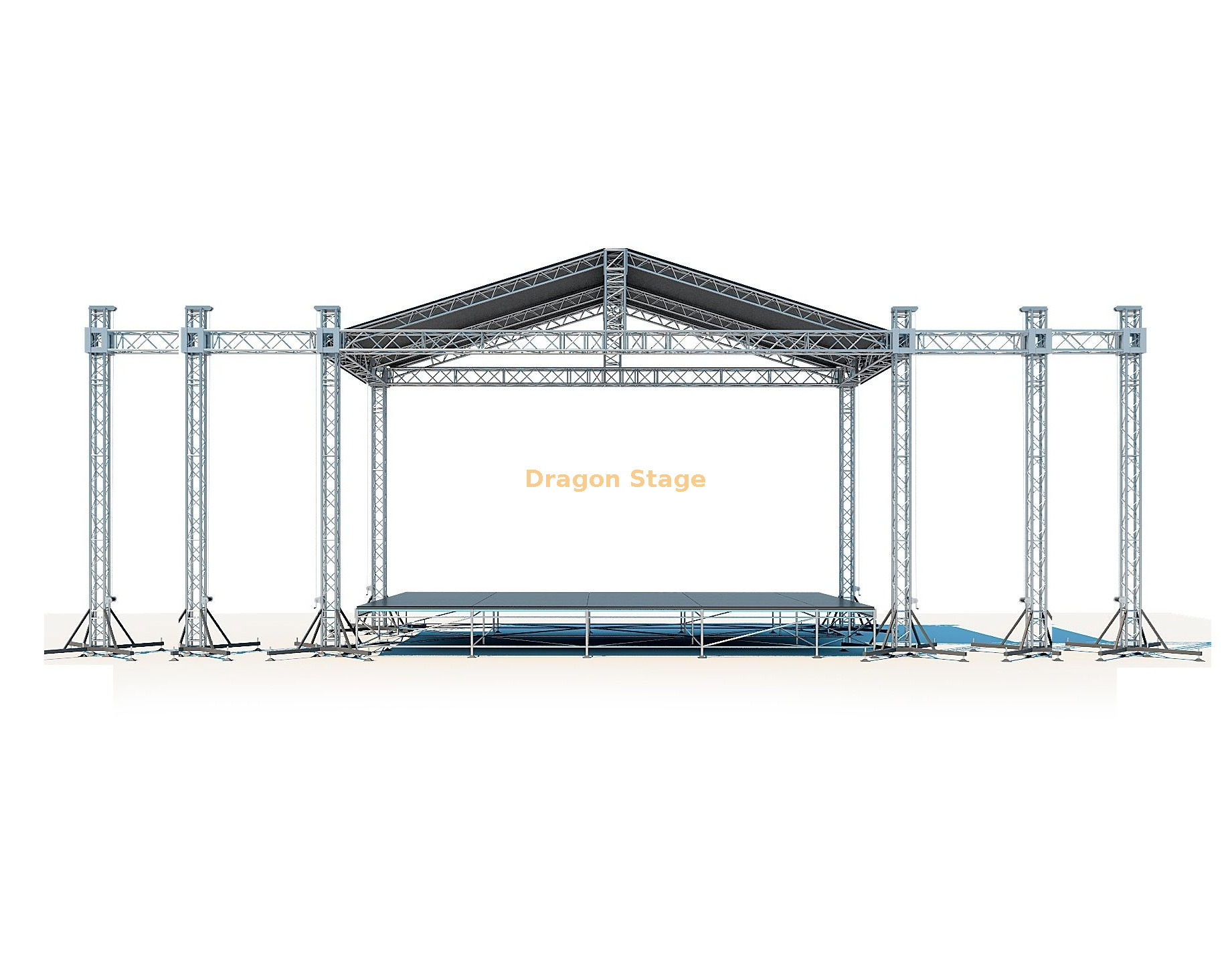

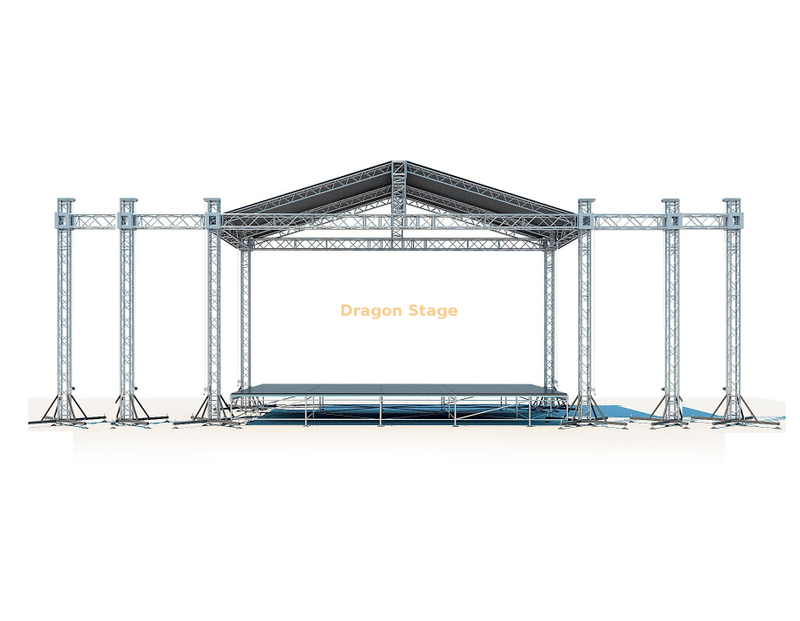

This custom Aluminum Heavy Duty Speaker Lighting Roof Truss Stage is a professional-grade structure designed for outdoor concerts and large events, offering robust support for heavy lighting and speaker systems. The main stage canopy provides an expansive 8m x 6m (approx. 26.2ft x 19.7ft) performance area and stands at a height of 8m (approx. 26.2ft).

Aluminum Heavy Duty Speaker Lighting Roof Truss Stage 8x6x8m

packing weight: 2600kg

packing volume: 28cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
8.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS500×600	4pcs
		2.00 m	50×3.0	CS500×600	2pcs
		1.00 m	50×3.0	CS500×600	0pcs
6.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS500×600	4pcs
		2.00 m	50×3.0	CS500×600	2pcs
		1.00 m	50×3.0	CS500×600	0pcs
7.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	4pcs
beam cube	6 faces	CS500×600			0pcs
Frame Tower	Spigot Sleeve Block M				4pcs
	Steel Base M				4pcs
	Top Section M				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	.80 m	50×3.0	CS289×289	2pcs
6.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	1pcs
		1.00 m	50×3.0	CS289×289	0pcs
4.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.20 m	50×3.0	CS289×289	4pcs
4.20 m Ladder truss	4 sets	3.00 m	50×3.0	CL30,289*50	4pcs
		2.00 m	50×3.0	CL30,289*50	0pcs
		1.20 m	50×3.0	CL30,289*50	4pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			8pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		103.36	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	4 sets	3.00 m	50×3.0	CS500×600	0pcs
		2.00 m	50×3.0	CS500×600	4pcs
		1.00 m	50×3.0	CS500×600	0pcs
7.00 m Wings Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	4pcs
Wings Tower	Spigot Sleeve Block M				4pcs
	Steel Base M				4pcs
	Top Section M				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
