packing weight: 1750kg
packing volume: 13cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 10.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| beam cube | Spigotcube 289x289 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 6.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 5.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.20 m | 50×3.0 | CS289×289 | 4pcs |
| 5.20 m Ladder truss | 4 sets | 3.00 m | 50×3.0 | CL30,289*50 | 4pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 2.20 m | 50×3.0 | CL30,289*50 | 4pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 8pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 126.16 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 5.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
Aluminum Roof Truss System for Outdoor Concert 10x6x6m - A Complete Guide
When planning a large-scale outdoor concert, the structural backbone of your event is non-negotiable. You need a system that is robust, reliable, and tailored to your specific needs. The Aluminum Roof Truss System for Outdoor Concert 10x6x6m from DRAGON STAGE is engineered to meet these exact demands, providing a professional-grade solution for hanging speakers, lighting, and creating an iconic stage structure.
This guide answers the most common questions and highlights the key features that make this system a top choice for event professionals worldwide.
What is This Roof Truss System?

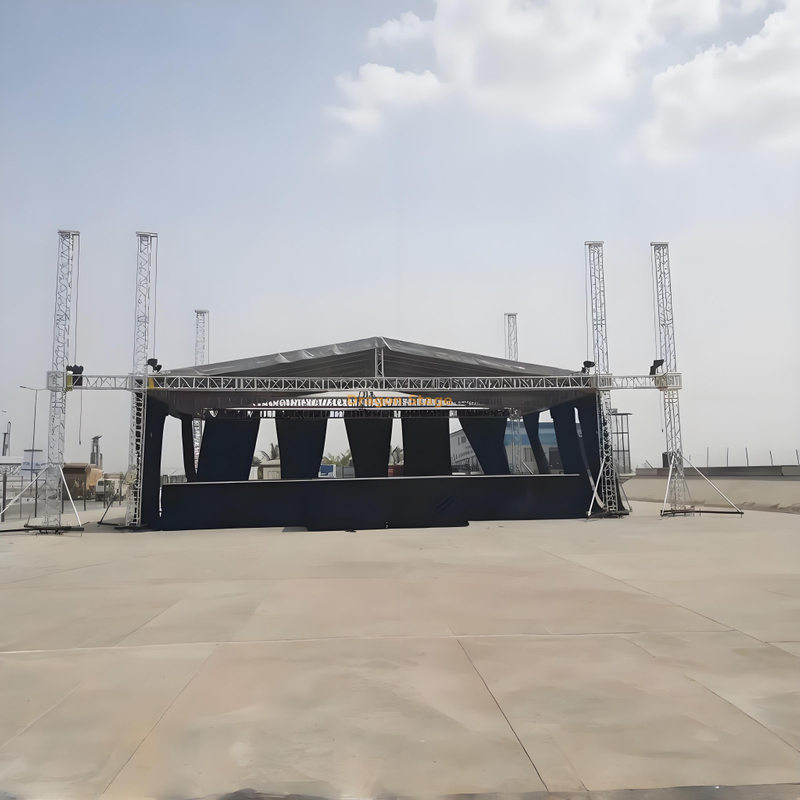

This is a custom-engineered, modular aluminum framework designed to create a 10-meter long, 6-meter wide, and 6-meter high roof structure for outdoor events. The system includes two 2-meter side wings, extending the coverage for speaker arrays or lighting effects. It's a complete package, including all necessary beams, pillars, towers, and connection hardware for a secure and swift setup.
Key Features and Specifications
Robust Construction: Built with high-grade aluminum (50x3.0mm main tubes) and 289x289mm square trussing, ensuring exceptional strength-to-weight ratio and durability against the elements.
Complete & Customizable: The system arrives as a full kit. The detailed packing list (total weight: 1750kg, volume: 13cbm) includes everything from main beams and oblique supports to manual hoists, safety clips, and a PVC roof canopy.
Enhanced Stability: Features integrated frame towers with long outriggers and steel bases, providing a stable and secure foundation even on uneven ground.
Versatile for Various Setups: Ideal for creating A-frame roof truss systems, flat roof truss systems, or custom event truss layouts for concerts, festivals, and large outdoor gatherings.
Answering Your Key Questions
1. Is this system suitable for hanging heavy line array speakers and stage lighting?
Absolutely. The system is specifically designed to support the weight of line array speaker trusses and heavy stage speaker roof trusses. The inclusion of 2-ton manual hoists and heavy-duty aluminum construction ensures your valuable sound and stage lighting equipment is suspended safely and securely.
2. What are the differences between this and a standard roof truss?
This is a custom outdoor concert truss system. Unlike generic options, it offers a specific 10x6x6m dimension with wings, a comprehensive component list for a complete structure, and is engineered for the dynamic loads of a live concert. It's more comparable to a professional event truss system than a basic aluminum roof truss.
3. Do you offer other sizes or custom truss designs?
Yes. While this is a specific model, DRAGON STAGE specializes in custom truss solutions. Whether you need a larger aluminum event truss system, a curve roof truss, or a different configuration, they can engineer a system to your exact stage design and venue requirements.
4. How does it handle outdoor conditions?
The primary material is corrosion-resistant aluminum, and the included PVC canopy protects against light weather. The design prioritizes wind resistance and stability, making it a reliable choice for outdoor stage roof applications.
5. Is it easy to assemble?
Yes, thanks to its modular, aluminum modular truss design. All components are clearly specified and use standard spigot and conical coupler connections, allowing a trained crew to assemble it efficiently.
Conclusion
For event organizers and production companies, the Aluminum Roof Truss System for Outdoor Concert 10x6x6m is more than just a structure; it's the foundation for a successful and spectacular event. It combines the durability of aluminum silver event truss with the flexibility of a custom indoor roof truss system, answering the critical needs for safety, versatility, and professional quality.
