All Weather Curved Roof Truss for Outdoor Event 12x10x6m

5 0 Reviews

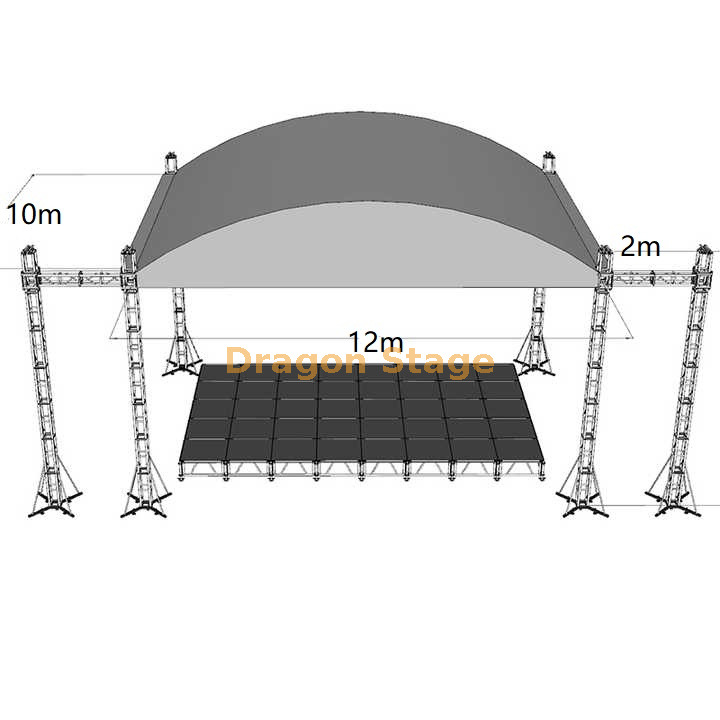

it is All Weather Curved Roof Truss for Outdoor Event, the width is 12m, deep 10m and height 6m

there are 2 wings for speakers, it is 2m wide.

Price: ￥ 1930 - 85438


Features:	truss+canopy 3 sides curtain wall
Availability:



Inquire

Brand:
Dragon Stage

Product Description

packing weight: 2100kg

packing volume: 16cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
12.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS389×389	8 pcs
		2.00 m	50×3.0	CS389×389	pcs
		1.00 m	50×3.0	CS389×389	pcs
10.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	6 pcs
		2.00 m	50×3.0	CS389×389	pcs
		1.00 m	50×3.0	CS389×389	2 pcs
6.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	4 pcs
		1.00 m	50×3.0	CS289×289	pcs
Tower	Spigot Sleeve Block S				4 pcs
	Steel Base S				4 pcs
	Top Section S				4 pcs
	Manual hoist,BA05 2Tons				4 pcs
	Spigot Hinge Section,Height 1m				4 pcs
	Fibre sling,BA04,2 tons 3m				4 pcs
	Long outrigger				16 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.20 m	50×3.0	CS289×289	2 pcs
10.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	3 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	1 pcs
14.00 m Arch Beam	2 sets	3.00 m	50×3.0	CS289×289	8 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	4 pcs
10.00 m Ladder truss	5 sets	3.00 m	50×3.0	CL40,389*50	15 pcs
		2.00 m	50×3.0	CL40,389*50	pcs
		1.00 m	50×3.0	CL40,389*50	5 pcs
Roof Components		spigot multi cube, use for roof beam truss		CS289×289	2 pcs
		Connect plate with clamp			2 pcs
		Single clamp			80 pcs
		Double clamp			8 pcs
		roof canopy material:pvc, Blue Colour or customized.		247.04	1 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS389×389	pcs
		2.00 m	50×3.0	CS389×389	2 pcs
		1.00 m	50×3.0	CS389×389	pcs
6.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	2 pcs
		2.00 m	50×3.0	CS289×289	2 pcs
		1.00 m	50×3.0	CS289×289	pcs
Wings Tower	Spigot Sleeve Block S				2 pcs
	Steel Base S				2 pcs
	Top Section S				2 pcs
	Manual hoist,BA05 2Tons				2 pcs
	Spigot Hinge Section,Height 1m				2 pcs
	Fibre sling,BA04,2 tons 3m				2 pcs
	Long outrigger				8 pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
