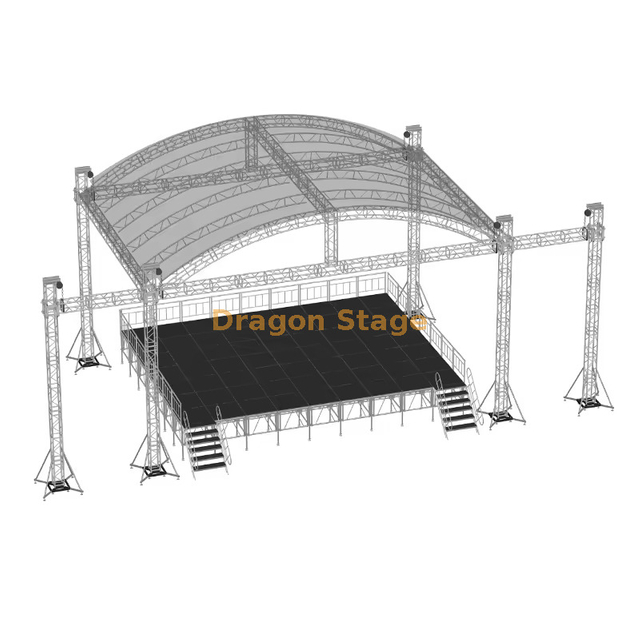

The DragonStage 15×10×8m Aluminum Curved Roof Truss System is a modular concert-stage roofing structure featuring a curved overhead truss framework, four main support towers, and two additional side-wing towers. The system uses CS389×389mm and CS289×289mm aluminum spigot truss, sleeve block assemblies, BA05 manual hoists, tower bases, outriggers, and a PVC roof canopy. The side wings extend the configuration for additional event-production arrangements, subject to the final equipment layout and verified loading requirements. Designed for concerts, music festivals, touring productions, and temporary entertainment stages, this system can be supplied with matching modular stage platforms and accessories.

This customized large tunnel event structure combines a 24m wide × 18m deep × 15m high tunnel aluminum truss system with a 21.96m × 14.4m × 2m high stage platform. The upper structure uses multiple large curved aluminum truss arches connected by longitudinal truss sections, creating a wide-span architectural framework above the event area. The complete system can be supplied together with the elevated stage platform as a customized package for stadium events, ceremonies, concerts, festivals, and other large temporary productions. The dimensions shown here come from an actual customer quotation requirement rather than a standard catalogue size. DragonStage manufactures customized Roof Truss systems in different dimensions and configurations according to project requirements.

the total sizes are 6m wide, 6m deep and 2.5m high curved roof with black topper

field concert curve roof trusses stages with dimensions of 6x3x3 meters represent a fusion of artistry and engineering that elevates the event experience to new heights. Their structural integrity, versatility, and impact on the event industry underscore their significance as essential components of modern event production.

it is All Weather Curved Roof Truss for Outdoor Event, the width is 12m, deep 10m and height 6m
there are 2 wings for speakers, it is 2m wide.

this is a small DJ Event Concert Music Festival Curved Roof Aluminum lighting truss system with stage platform
the roof system is 7x5x4m wings 2m wide each, and stage is 6.1x4.88m with 2 stairs and stage rails

this full set of Light Stage curved roof trusses total sizes are 5m long, 4m deep and 3m high.
the lite deck stage 5m long and 4m deep with 2 stairs height 0.4-0.6m

the custom curved roof stage is 10m wide and 10m deep and 7m high
2 wings of 2m wide speaker tower
the stage platform is 9m wide and 8m deep and 2 m high with 2 stairs

Aluminum Quarter Dome Stage Roof Truss System (¼ Sphere Structure for Lighting and Event Design)
